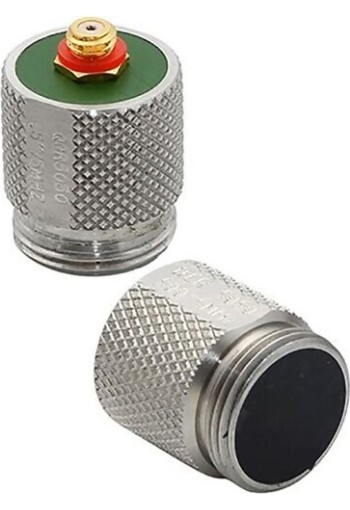

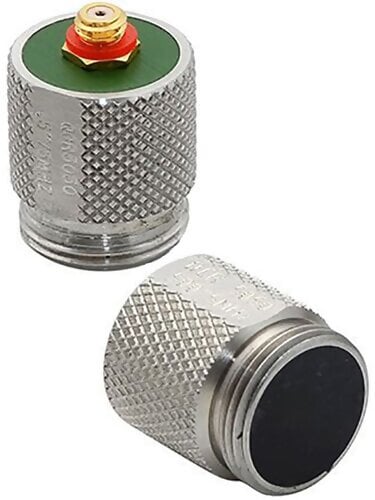

The Dakota Shear Wave Quick Change Transducers are single element transducers with a threaded tip allowing angle beam wedges to be changed with minimum delay
The Dakota Shear Wave Quick Change Transducers are single element transducers with a threaded tip allowing angle beam wedges to be changed with minimum delay.
The Dakota Shear Wave Quick Change Transducers can be used when different frequencies are required using the same wedge, or where different angles are required using the same frequency transducer.
These transducers are ideal for inspecting curved surfaces and hard to reach areas.
The Dakota Shear Wave Quick Change Transducers can be fixed to wedges of different angles to produce shear wave measurements.
When used in conjunction with the ‘Trigonometry’ feature of the gauge, the transducer will produce instrumental flaw detection sound shear waves.
Specifications
HG - High Gain Damped Transducer
R - Resolution Damped Transducer
S - Standard Undamped Transducer
