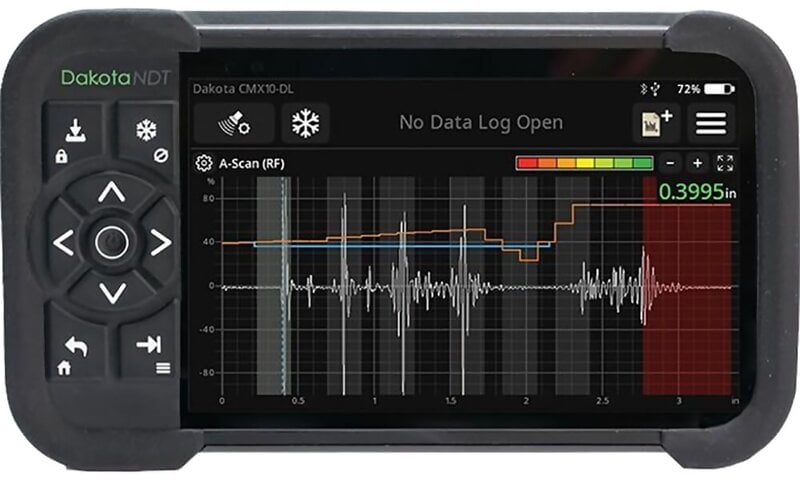

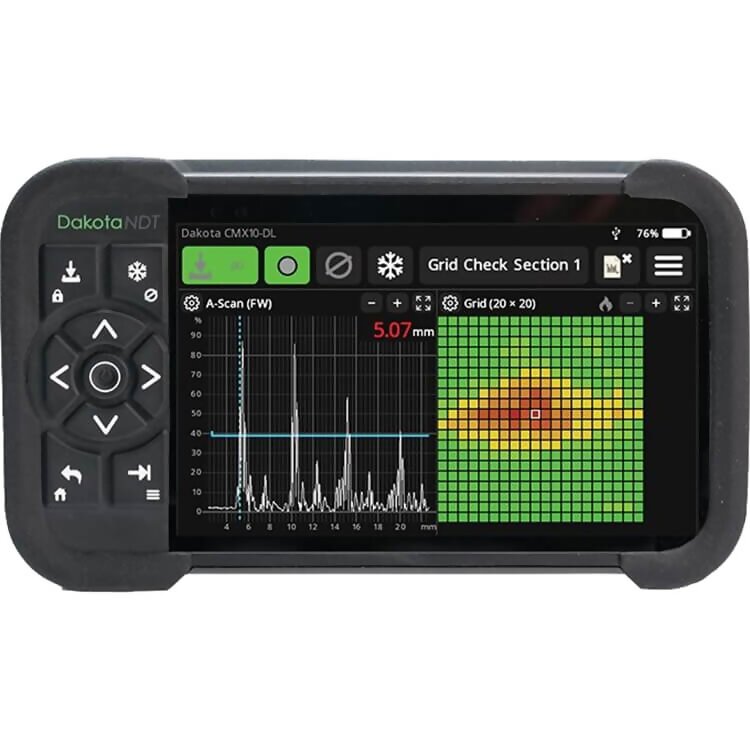

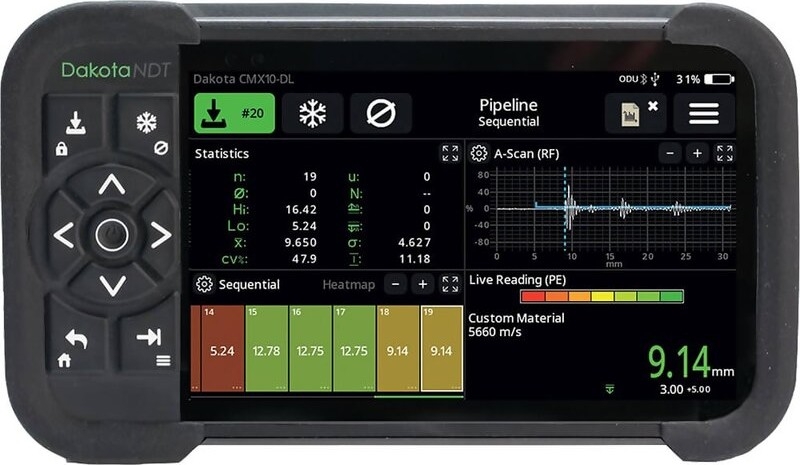

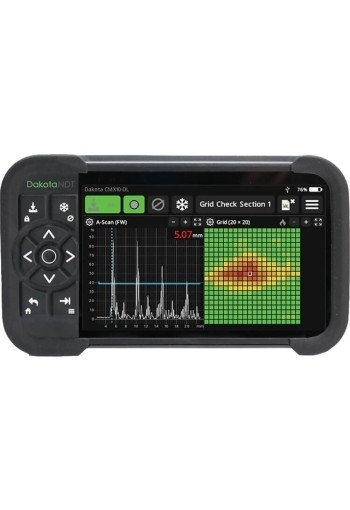

    The Dakota CMX10-DL Full Wave Capture Ultrasonic Thickness Gauge is an A-Scan gauge with full-wave recording, B-Scan, TCG, 2nd layer, corrosion & precision thickness in one easy-to-use, affordable gauge.

    Incredibly user friendly

    The Dakota CMX10-DL Full Wave Capture Thickness Gauge is easy to navigate, simple to set up, all functions and features can be selected from the Menu icon. Create up to 50 custom setups for routine thickness inspections.

    Confident probability of detection

    The Dakota CMX10-DL A-Scan Thickness Gauge boosts confidence in probability of detection (POD) through visual waveform analysis, signal optimization tools, and stability indicators that help inspectors verify and reduce false negatives on defects like pits or corrosion.

    Full traceability for reassurance of inspection quality

    Useful variables such as transducer information, calibration methods, dates and calibration times can all be recorded, ensuring a high degree of consistency and repeatability.

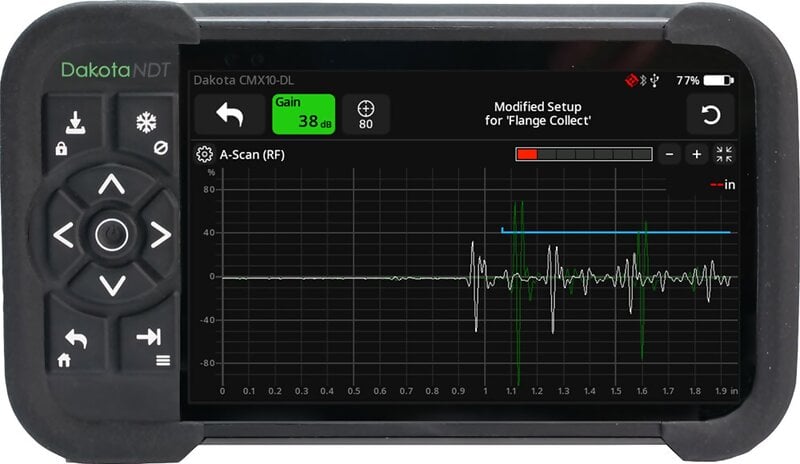

    See the full picture, not just a number

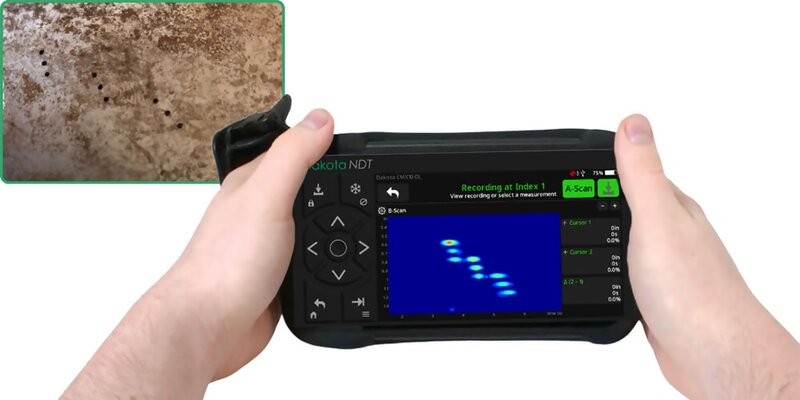

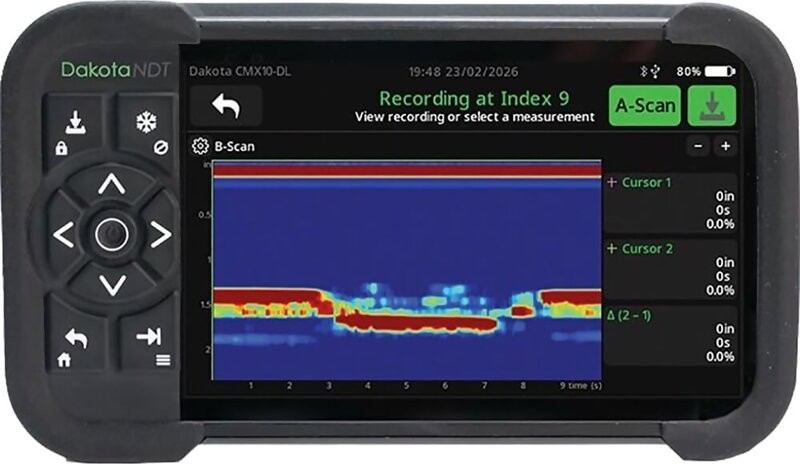

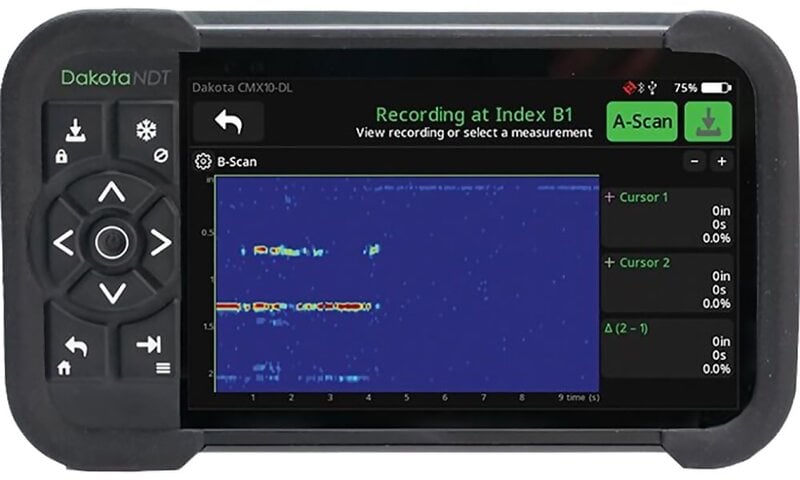

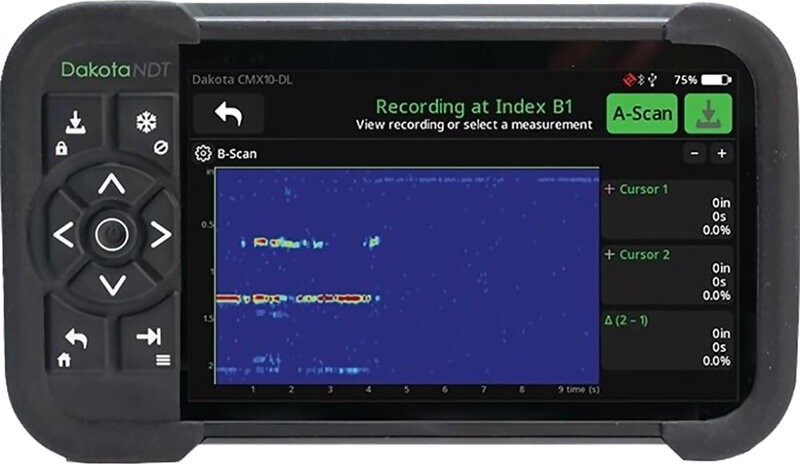

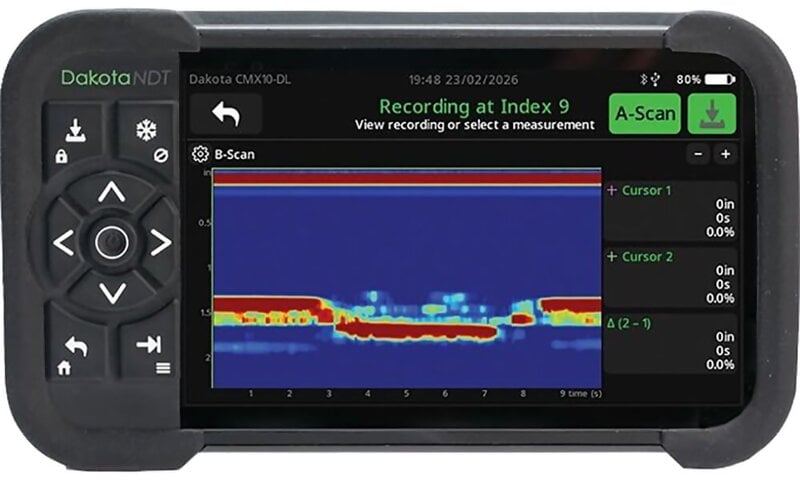

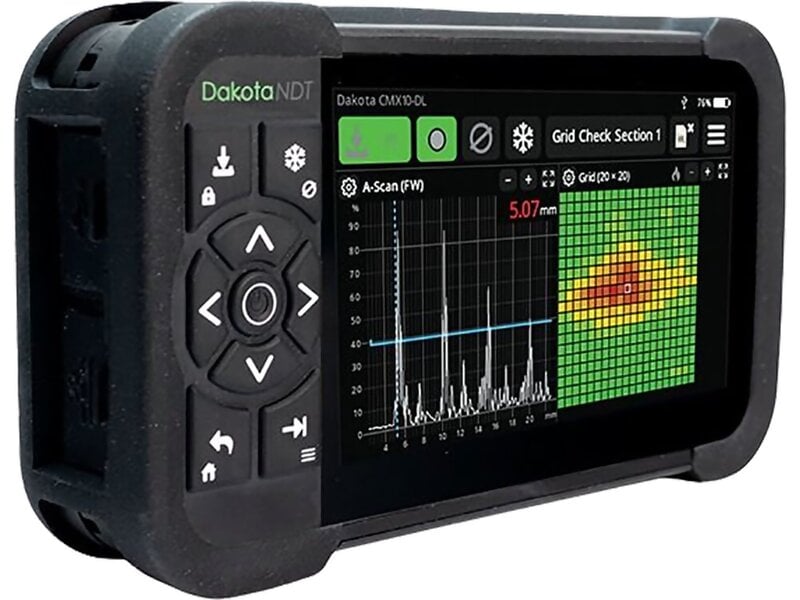

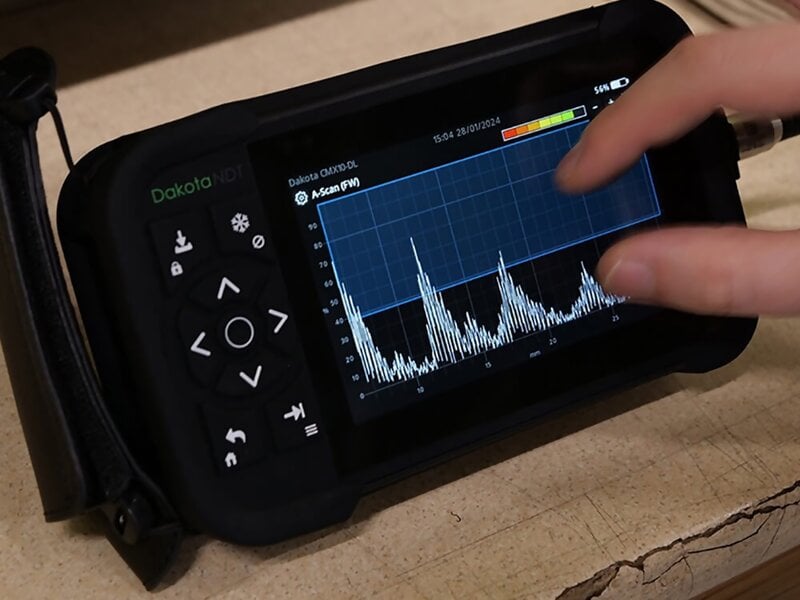

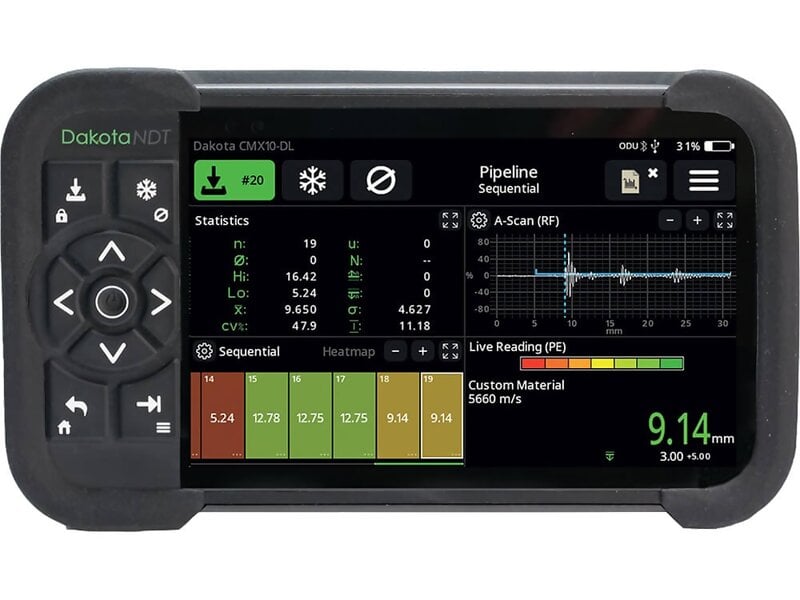

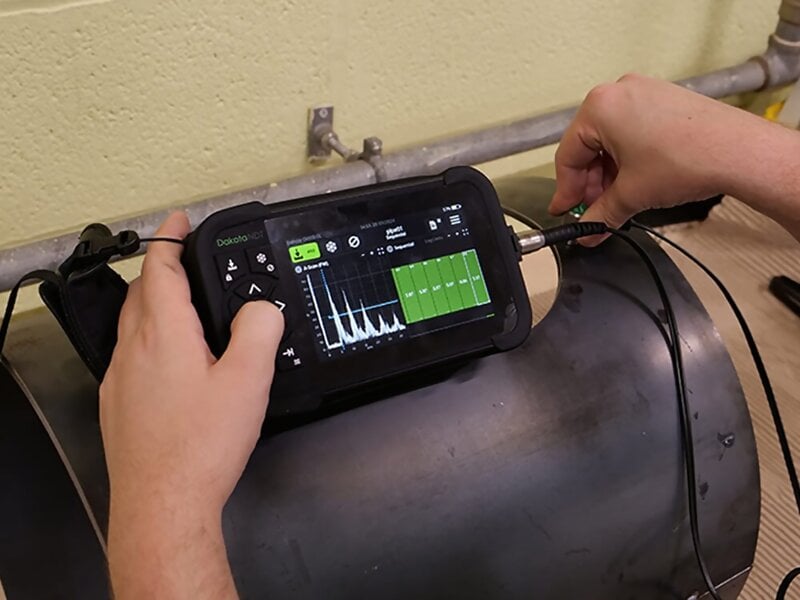

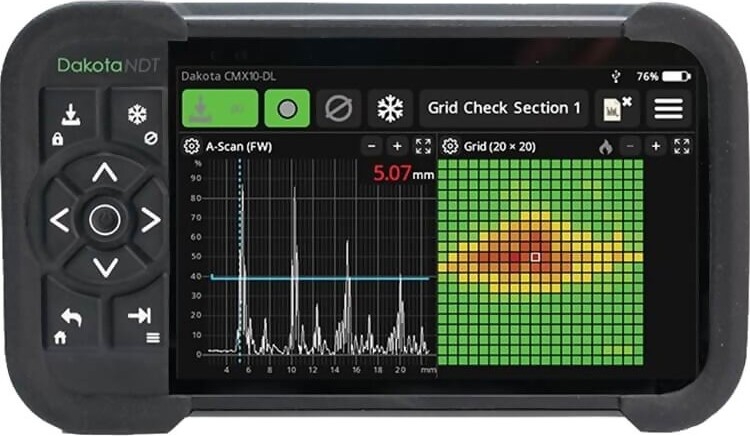

    A-Scan and B-Scan recording lets inspectors visualize the material profile, review scans and accurately locate corrosion, pits and other defects.

    Enhanced Time Corrected Gain (TCG) and Backwall Echo Attenuation (BEA), plus flexible filtering and averaging, helps bring out critical signals in noisy or attenuative materials.

    Kit Contents

    • Dakota CMX10-DL Full Wave Capture Ultrasonic Thickness Gauge
    • Ultrasonic Couplant; 120ml (4fl oz)
    • Power Supply (UK, EU and US) Adapters
    • Rechargeable Battery
    • Hand Strap (x1)
    • Extension straps (x2)
    • Screen Protector x 1
    • USB Cable, Calibration Certificate
    • User Guide
    • DakMaster™ download card
    • Transit Case

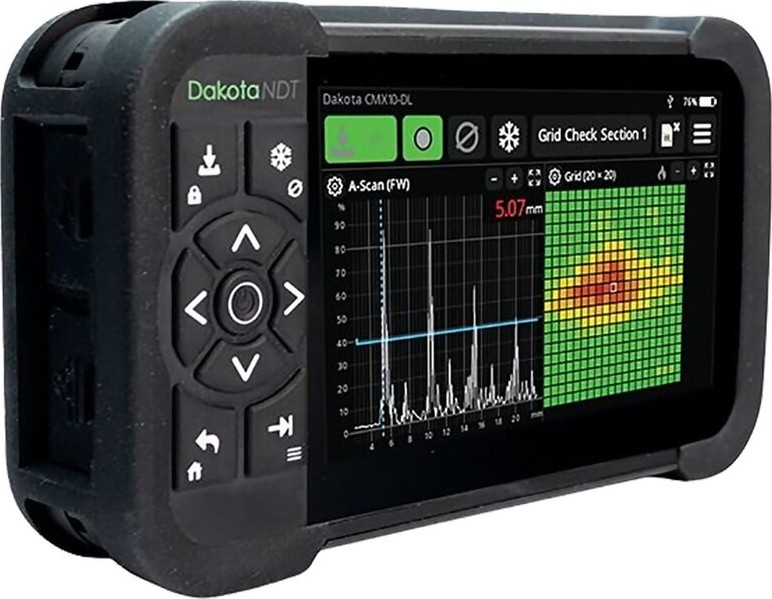

    Click image to enlarge

    Features

    The Dakota CMX10-DL is a powerful ultrasonic full wave thickness gauge designed for both corrosion surveys and high-precision measurements, in a rugged, field-ready package inspectors can rely on every day.

    • Touchscreen and button keypad supports operation in the harshest environments.
    • Heavy duty, rubberized, impact resistant, dust and waterproof case up to IP65.
    • Up to 20,000 A-Scans on 128MB internal storge or approximately 5 million on a 32GB external memory card.
    • Up to 15 hours battery life with LI-Ion Rechargeable Smart Battery or Mains Power Supply.
    • Enhanced Time Corrected Gain (TCG) & Backwall Echo Attenuation (BEA), improving detection of porosity, inclusions, and cracks.
    • Compatible with DakMaster™ for instant report generation and firmware updates

    Specifications

    Operation of Gauge ControlsKeypad Only, Touchscreen Only or Keypad & Touchscreen Combined Control
    Gauge Dimensions7.1 x 4.1 x 2.0" (180 x 105 x 50mm)
    Gauge Weight1.92lbs (872g)
    Operating Temperature14°F to 122°F (-10 to 50°C)
    Probe Sockets Type(s)1/2 x Lemo-00 1x ODU Smart Port
    Power SupplyLI-Ion - Rechargeable Smart Battery or Mains Power Supply
    Battery Life9 to 15 hrs (Dependant on usage)
    Ingress Protection (IP)Dust tight and protected against low power water jets in any direction; equivalent to IP65
    CertificationCalibration Certificate
    Warranty1 year limited
    ManufactureMade in the United Kingdom
    Screen Displayed Range23.3" (592mm) (steel)
    Measurement RangePE: 0.007" to 58.3" (0.18mm to 1480mm) (probe dependant), EE: 0.007" to 23.3" (0.18mm to 592mm) (probe dependant), EEV: 0.007" to 11.7" (0.18mm to 296mm) (probe dependant), 2nd Layer Thickness (PE2): 0.007" to 58.3" (0.18mm to 1480mm) (probe dependant), 2nd Layer Thickness ThruPaint™ (EE2): 0.007" to 23.3" (0.18mm to 592mm) (probe dependant)
    Velocity Calibration Range0.0079 to 0.7874 in/μs / (200 to 20000 m/sec)
    Transmitter PulseSquare
    Transmitter Pulse Voltage (peak-to-peak)50 - 200V (User Adjustable in 1Volt steps)
    Pulse Rise Time<10 ns
    Pulse Duration25 to 250nS (Dependent on probe frequency)
    Gain Control0-74dB in 0.1dB steps features: Time Controlled Gain, Auto80
    Transducer Frequency Range1 - 20MHz
    Measurement Accuracy0.001" (±0.01mm) or ±1% of Reading (whichever is largest) *@ 5MHz 1/4" on Steel.
    Measurement Resolution±0.0001" (±0.001mm)
    Min & Max Measurement(Steel @ 5920m/s) Minimum: 0.007" (0.18mm) Maximum: 23.3" (592mm) (Delay: 0.1" - 35" (-3mm - 888mm))
    Calibration OptionsZero (using the integral zero disc) , 1 - point, 2 - point , Custom Velocity, Preset Material
    GatesFlank, Zero-Cross, Peak
    Number Gates1-3 Depending on Mode Selected
    Filter SettingsLow Pass (10Mhz, 20Mhz, 30Mhz), High Pass (0.5Mhz, 2.5Mhz, 5Mhz) and Broadband
    Time Corrected Gain (TCG)Ramp, Curve (up to 16 points)
    Pulse Repetition Frequencies (PRFs)2KHz
    Back Wall Echo Suppression
    V-path / dual path error correctionAutomatically corrects for V-path (Dakota NDT transducers only)
    DakMaster Software™
    DakMaster™ Mobile App
    Transducer Probe TypeDual Contact, Single Contact, Single Delay, Angular (Prove Up)
    Auto Detect & Transducer Set UpFeature compatible with ODU style Transducers
    Display800 x 480 pixels, Colour, Touchscreen, Graphical, TFT Display
    Display Refresh Rate60Hz
    Waveform Refresh Rate20Hz (50ms)
    Display & Recall FacilitiesNumerical Reading, A- Scan, B- Scan and Video Recordings can be stored and retrieved in Data logs
    A-ScanRectified ±, RF, Full Wave
    B-ScanTimed Includes Recording and Analysis with 2 Curser Measurement
    Differential Mode
    Display FreezeFreeze Screen and Overlay Signal on Screen
    Expanded GateExpand signal displayed under gate
    Transducer Stability IndicatorSpeed 20Hz (50ms)
    Display Colour InversionA- Scan Sunlight Assist
    Brightness AdjustManual and automatic screen brightness level adjustment
    Display ConfigurationsA-Scan, Statistics, Live Reading, Grid, Image Collect
    Image Collect LibraryPart Display Images (Multiple Formats)
    Screen Share & ControlRemote Viewing Feature with Control
    Data OutputUSB and Bluetooth® LE Data Output
    Log FormatsSequential, Grid, Recording, Amplitude/Depth Colour Options
    Screen CaptureOn Gauge and Screen view function in DakMaster™
    Note AbilityOBSTRUCT to indicate inaccessible, with notes
    Full Traceability FeatureSet Up Library, Transducer Library, Calibration Library
    Data Log File Format OptionsProjects, Folders, Individual Files

    Features Explained

    Time Corrected Gain (TCG)
    Improve possibility of detection

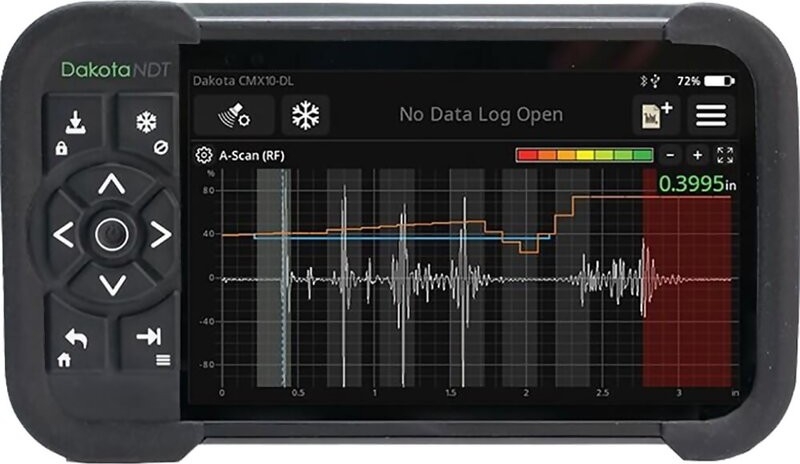

    Time Corrected Gain (TCG) and filtering lets you lift later echoes without saturating the near surface. That is useful on rough or heavily corroded backwalls where the important echoes are weak and buried in noise.

    Backwall Echo Attenuation (BEA) – enables on screen monitoring of backwall signal amplitude. A drop in backwall amplitude indicates an issue, useful in composite inspections and many other materials.

    line

    Second Layer Inspection
    Less intrusive inspection better remaining life assessment

    The second layer/cladding measurement feature is about seeing the true condition of the base metal and liner separately.

    The gauge interprets multiple echoes so it can distinguish the outer wall from the inner liner or cladding layer beneath. In practice, that means you can get one reading for total wall and another that represents the remaining thickness of the inner liner, or outer liner, even when it is behind a coating or outer shell.

    line

    Crack Prove-Up Capability
    Fast confirmation of critical flaw

    High-resolution, accurate crack prove-up capability for fast confirmation of critical flaws, even in complex geometries.

    The Dakota CMX10-DL Thickness Gauge increases the probability of detection of hard to detect pits and cracks using traditional angle transducer inspection methods, to supporting confident fitness-for-service decisions.

    line

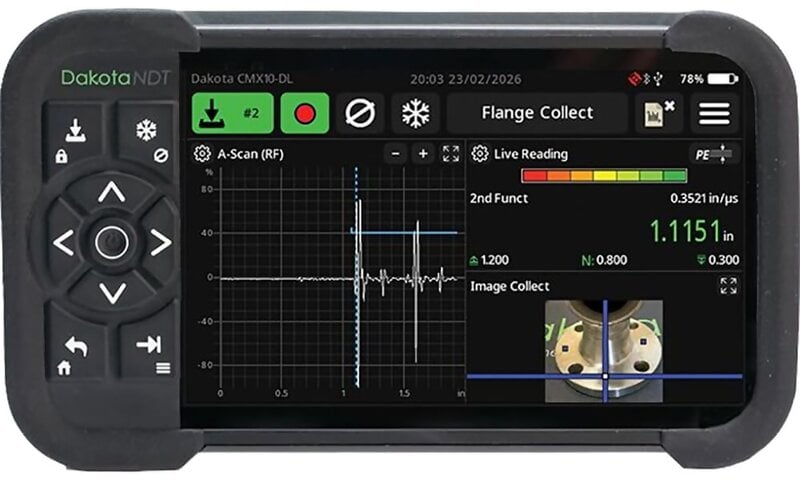

    Image Collect
    For guided inspection locations

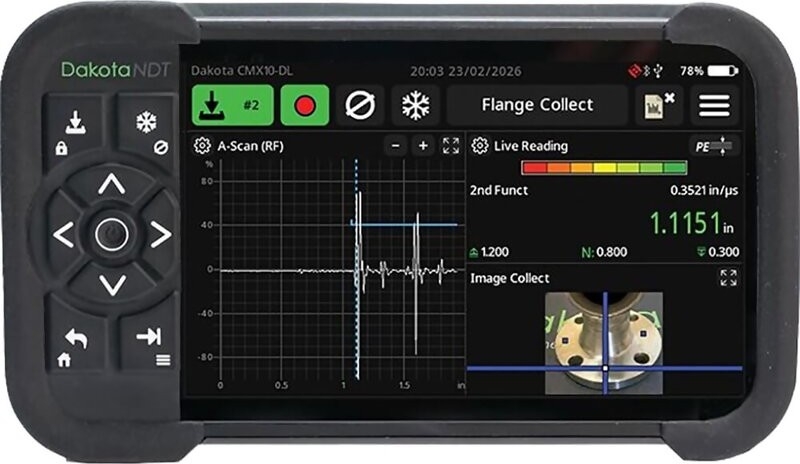

    Upload a custom photo or CAD model of the part via DakMaster™ and then tap on that image to drive the next measurement location directly on the gauge itself.

    line

    Internal Defect
    With point-to-point measurement

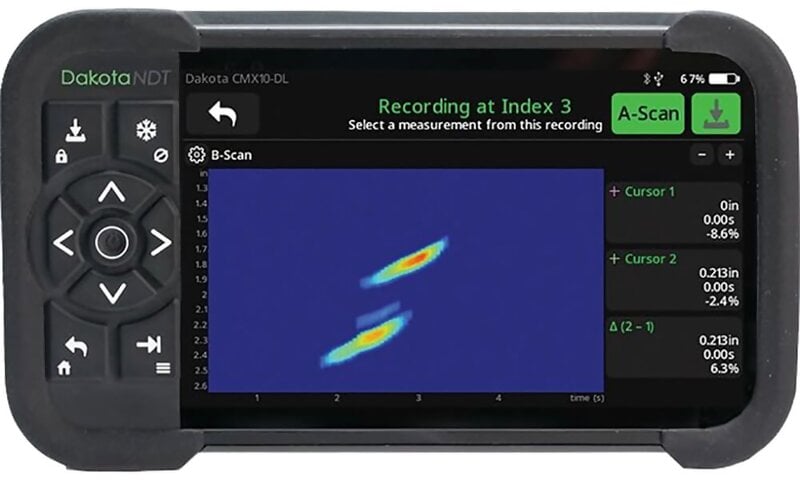

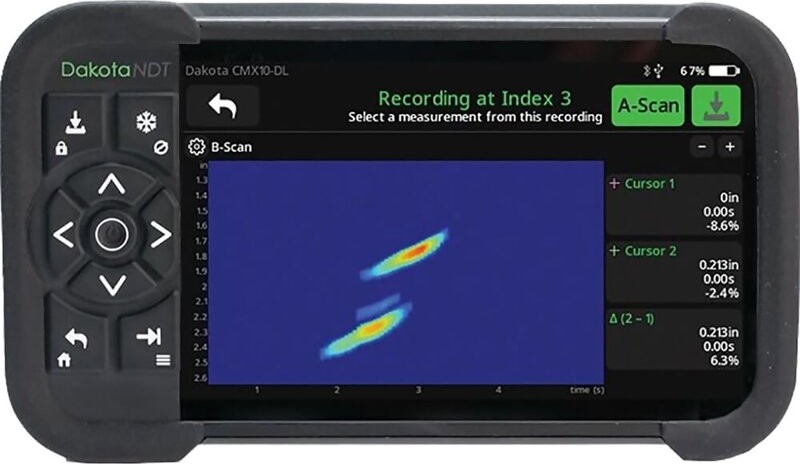

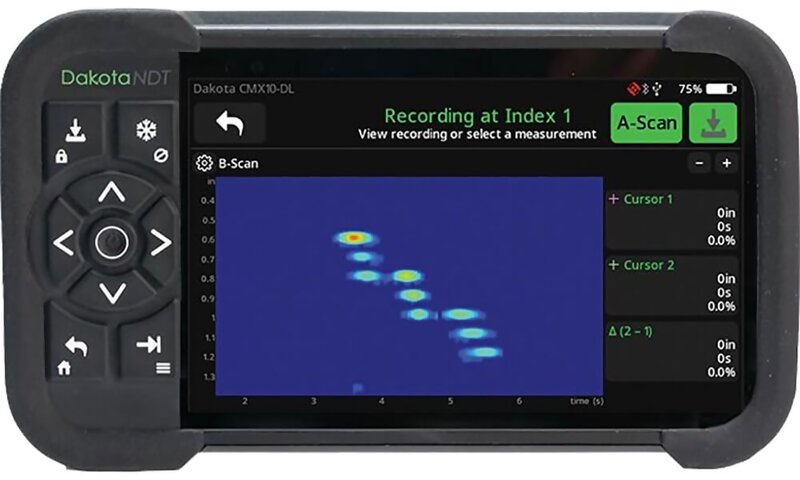

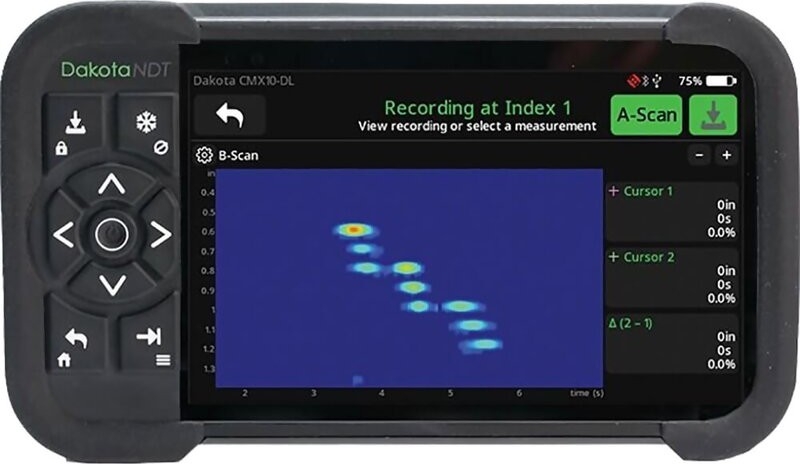

    B-Scan supports additional identification of defects in a composite layer beyond that of a traditional A- Scan gauge.

    Cursors for point to point measurement provide accurate depth measurement.

    line

    Overlay Comparison
    Identify differences in waveforms

    The Dakota CMX10-DL ultrasonic thickness gauge can help identify differences in waveform signal patterns to indicate changes in structure or areas of concern.

    line

    The Dakota CMX10-DL ultrasonic thickness gauge can help identify differences in waveform signal patterns to indicate changes in structure or areas of concern

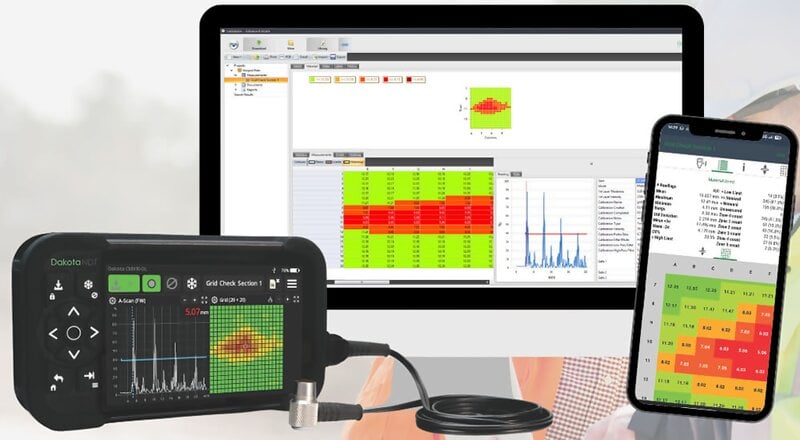

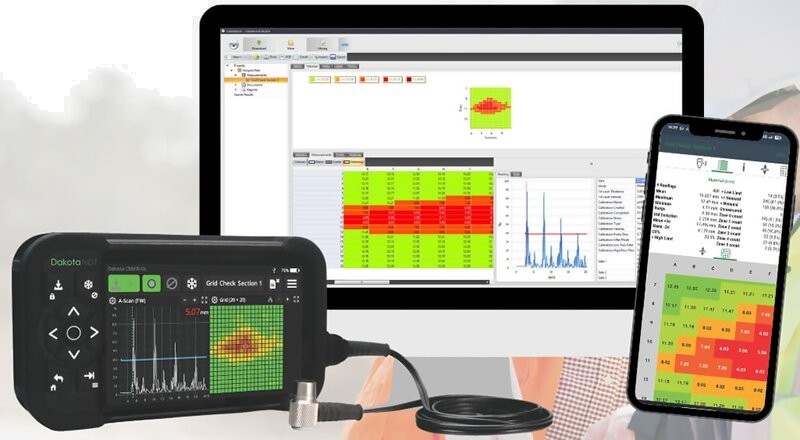

    It’s not all about inspection, it’s what you do next that counts. Save up to 30% of your working week by producing professional inspection reports in seconds using DakMaster™ software.

    Downloads

    Dakota CMX10-DL Full Wave Capture Ultrasonic Thickness Gauge - Data Sheet
    Dakota CMX10-DL Full Wave Capture Ultrasonic Thickness Gauge - Instruction Manual
