The Dakota CMX10-DL Full Wave Capture Ultrasonic Thickness Gauge is an A-Scan gauge with full-wave recording, B-Scan, TCG, 2nd layer, corrosion & precision thickness in one easy-to-use, affordable gauge.
The Dakota CMX10-DL Full Wave Capture Thickness Gauge is easy to navigate, simple to set up, all functions and features can be selected from the Menu icon. Create up to 50 custom setups for routine thickness inspections.
The Dakota CMX10-DL A-Scan Thickness Gauge boosts confidence in probability of detection (POD) through visual waveform analysis, signal optimization tools, and stability indicators that help inspectors verify and reduce false negatives on defects like pits or corrosion.
Useful variables such as transducer information, calibration methods, dates and calibration times can all be recorded, ensuring a high degree of consistency and repeatability.

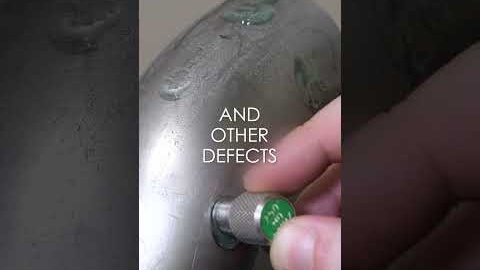

A-Scan and B-Scan recording lets inspectors visualize the material profile, review scans and accurately locate corrosion, pits and other defects.
Enhanced Time Corrected Gain (TCG) and Backwall Echo Attenuation (BEA), plus flexible filtering and averaging, helps bring out critical signals in noisy or attenuative materials.
The Dakota CMX10-DL is a powerful ultrasonic full wave thickness gauge designed for both corrosion surveys and high-precision measurements, in a rugged, field-ready package inspectors can rely on every day.
| Operation of Gauge Controls | Keypad Only, Touchscreen Only or Keypad & Touchscreen Combined Control |
| Gauge Dimensions | 7.1 x 4.1 x 2.0" (180 x 105 x 50mm) |
| Gauge Weight | 1.92lbs (872g) |
| Operating Temperature | 14°F to 122°F (-10 to 50°C) |
| Probe Sockets Type(s) | 1/2 x Lemo-00 1x ODU Smart Port |
| Power Supply | LI-Ion - Rechargeable Smart Battery or Mains Power Supply |
| Battery Life | 9 to 15 hrs (Dependant on usage) |
| Ingress Protection (IP) | Dust tight and protected against low power water jets in any direction; equivalent to IP65 |
| Certification | Calibration Certificate |
| Warranty | 1 year limited |
| Manufacture | Made in the United Kingdom |
| Screen Displayed Range | 23.3" (592mm) (steel) |
| Measurement Range | PE: 0.007" to 58.3" (0.18mm to 1480mm) (probe dependant), EE: 0.007" to 23.3" (0.18mm to 592mm) (probe dependant), EEV: 0.007" to 11.7" (0.18mm to 296mm) (probe dependant), 2nd Layer Thickness (PE2): 0.007" to 58.3" (0.18mm to 1480mm) (probe dependant), 2nd Layer Thickness ThruPaint™ (EE2): 0.007" to 23.3" (0.18mm to 592mm) (probe dependant) |
| Velocity Calibration Range | 0.0079 to 0.7874 in/μs / (200 to 20000 m/sec) |
| Transmitter Pulse | Square |
| Transmitter Pulse Voltage (peak-to-peak) | 50 - 200V (User Adjustable in 1Volt steps) |
| Pulse Rise Time | <10 ns |
| Pulse Duration | 25 to 250nS (Dependent on probe frequency) |
| Gain Control | 0-74dB in 0.1dB steps features: Time Controlled Gain, Auto80 |
| Transducer Frequency Range | 1 - 20MHz |
| Measurement Accuracy | 0.001" (±0.01mm) or ±1% of Reading (whichever is largest) *@ 5MHz 1/4" on Steel. |
| Measurement Resolution | ±0.0001" (±0.001mm) |
| Min & Max Measurement | (Steel @ 5920m/s) Minimum: 0.007" (0.18mm) Maximum: 23.3" (592mm) (Delay: 0.1" - 35" (-3mm - 888mm)) |
| Calibration Options | Zero (using the integral zero disc) , 1 - point, 2 - point , Custom Velocity, Preset Material |
| Gates | Flank, Zero-Cross, Peak |
| Number Gates | 1-3 Depending on Mode Selected |
| Filter Settings | Low Pass (10Mhz, 20Mhz, 30Mhz), High Pass (0.5Mhz, 2.5Mhz, 5Mhz) and Broadband |
| Time Corrected Gain (TCG) | Ramp, Curve (up to 16 points) |
| Pulse Repetition Frequencies (PRFs) | 2KHz |
| Back Wall Echo Suppression |  |
| V-path / dual path error correction | Automatically corrects for V-path (Dakota NDT transducers only) |
| DakMaster Software™ | |
| DakMaster™ Mobile App | |
| Transducer Probe Type | Dual Contact, Single Contact, Single Delay, Angular (Prove Up) |
| Auto Detect & Transducer Set Up | Feature compatible with ODU style Transducers |
| Display | 800 x 480 pixels, Colour, Touchscreen, Graphical, TFT Display |
| Display Refresh Rate | 60Hz |
| Waveform Refresh Rate | 20Hz (50ms) |
| Display & Recall Facilities | Numerical Reading, A- Scan, B- Scan and Video Recordings can be stored and retrieved in Data logs |
| A-Scan | Rectified ±, RF, Full Wave |
| B-Scan | Timed Includes Recording and Analysis with 2 Curser Measurement |
| Differential Mode | |
| Display Freeze | Freeze Screen and Overlay Signal on Screen |
| Expanded Gate | Expand signal displayed under gate |
| Transducer Stability Indicator | Speed 20Hz (50ms) |
| Display Colour Inversion | A- Scan Sunlight Assist |
| Brightness Adjust | Manual and automatic screen brightness level adjustment |
| Display Configurations | A-Scan, Statistics, Live Reading, Grid, Image Collect |
| Image Collect Library | Part Display Images (Multiple Formats) |
| Screen Share & Control | Remote Viewing Feature with Control |
| Data Output | USB and Bluetooth® LE Data Output |
| Log Formats | Sequential, Grid, Recording, Amplitude/Depth Colour Options |
| Screen Capture | On Gauge and Screen view function in DakMaster™ |
| Note Ability | OBSTRUCT to indicate inaccessible, with notes |
| Full Traceability Feature | Set Up Library, Transducer Library, Calibration Library |
| Data Log File Format Options | Projects, Folders, Individual Files |
