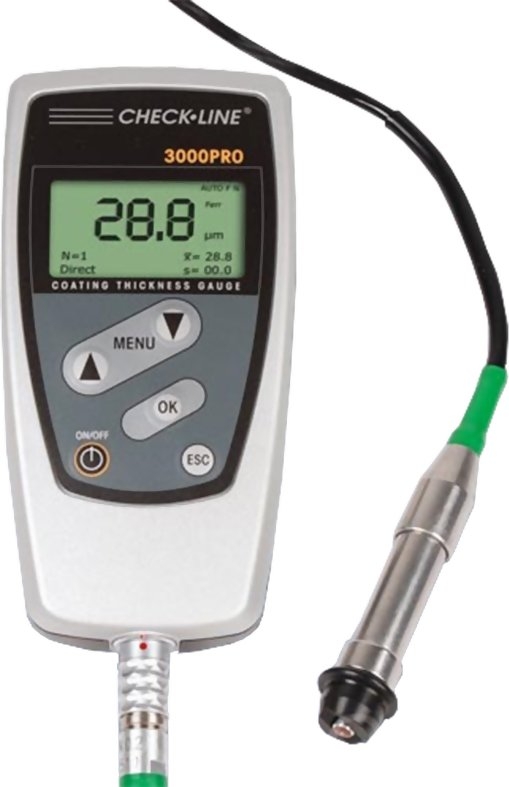

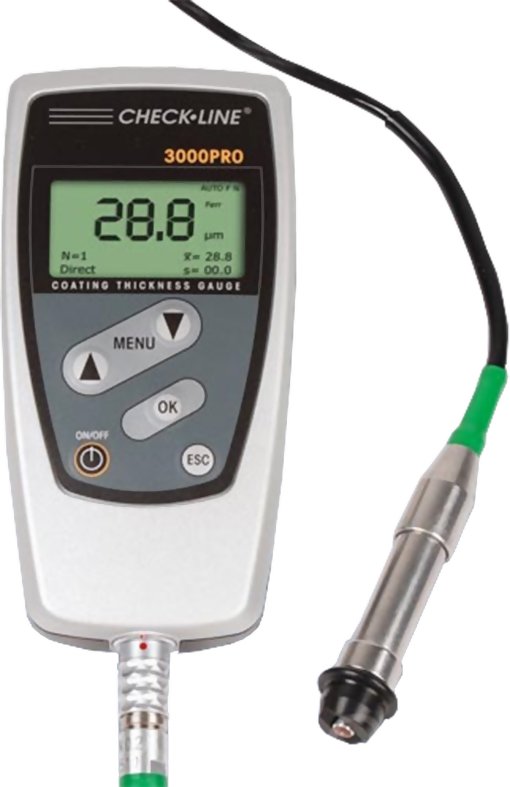

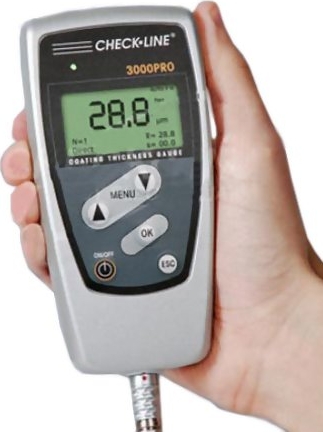

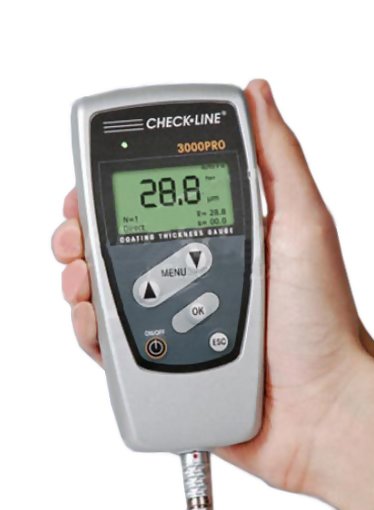

The new Check-Line 3000PRO Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for:
- paint and electroplated coatings on iron and steel
- paint and anodizing coatings on non-ferrous metals and on austenitic stainless steels

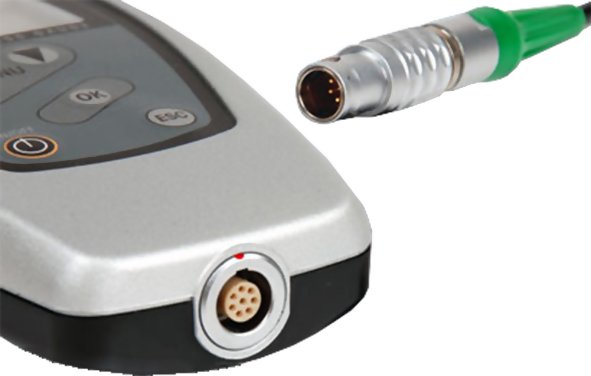

The user will select the model best suited for their application. All the probes are interchangeable and their internal calibration is stored within a small microchip inside the probe connector housing. This provides for quick and easy hot-swapping from one probe to any other in seconds.
Six (6) different models are offered for a wide variety of applications.

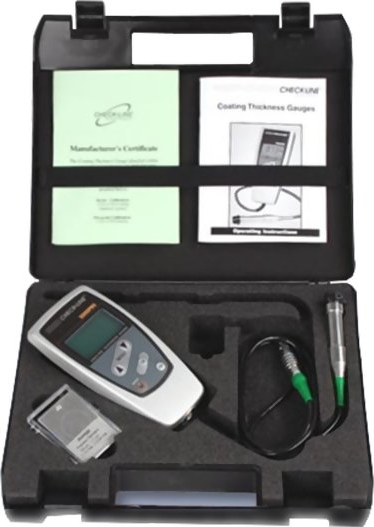

Kit Contents
- 3000PRO Coating Thickness Gauge
- Probe
- Manufacturers calibration certificate
- Ferrous and or non-errous zero plate (model dependant)
- 2 calibration foils
- 2 AA batteries
- Soft pouch
- Instruction manual
- Plastic carrying case
Features
- Automatic identification of the substrate
- Calibration-free measurements (calibration only in exceptional cases)
- Mobile and stationary operation with only one gauge
- Highly wear-resistant measuring poles made of carbide metal
- The 3000PRO Coating Thickness Gauge features special probes for unusual measurement tasks
- Precise measurements on different geometries thanks to simple calibration methods
- Safe use even for special applications such as sand-blasted surfaces, small parts and curved surfaces
- Scan mode for the quick recognition of coating thickness variations on large surfaces, including display of minimum and maximum readings
- Display backlight for bad ambient lighting conditions
- Online statistics with all statistical parameters
- Easy to operate, well-known from mobile phones
- Intuitive menu guidance via dialog with the user
- Free choice of language – German, English, French
- Extensive data memory for the management of different measurement series
- Alphanumerical file names can be individually stored for every measurement task
- Infrared interface for wireless data transfer to printer and PC
- No additional data transfer software required thanks to the use of Windows® standard application (HyperTerminal)

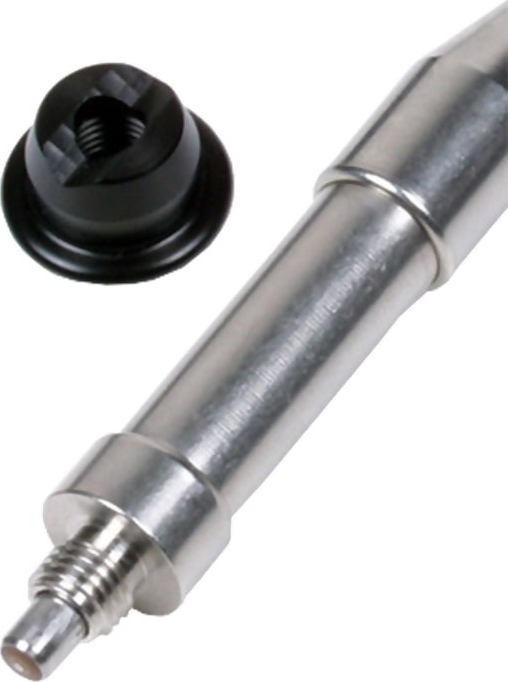

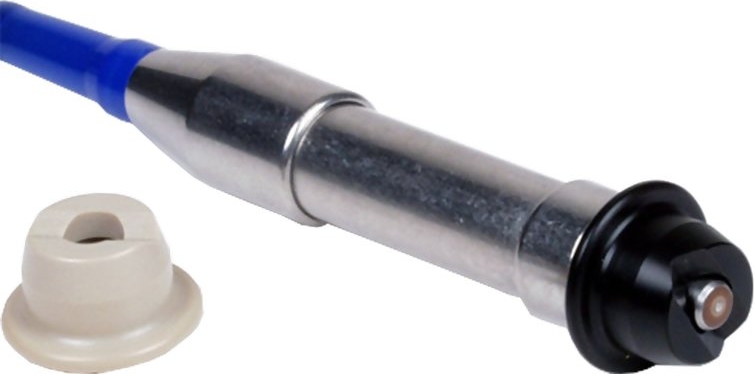

- Optional high temperature footer for measuring on surfaces up to 150 °C/302 °F
- The 3000PRO Coating Thickness Gauge includes NIST Calibration Certificate
- 1 Year Warranty
Specifications
Measuring principle | Magnetic induction method (F-version); Eddy current method (N-version) |
Measuring range | 3000PRO & 3000PRO-FN90: 0 - 60.00 mils / 0 - 1500 µm 3000PRO-F10: 0 - 400 mils / 0 - 10,000 µm |
Tolerance | ± (0.7 µm/0.04 mils + 1% of reading) |
Resolution | Refer to RESOLUTION TABLE, above |
Display | 4-digit display (digit height 10 mm/0.4") and 32 alphanumerical characters; switchable backlight |
Minimum measurement area | 5 mm x 5mm/0.2" x 0.2" |
Minimum curvature radius | convex 2mm/0.08"; concave 5mm/0.2" |
Minimum substrate thickness | 0.2mm/8 mils (for F-versions); 50 µm/2 mils (for N-versions) |
Calibration methods | Factory calibration: no calibration required for standard applicationsZeroing (1-point calibration): measurements on small geometriesZeroing and foil calibration (2-point calibration): increased measuring accuracyTwo-foil calibration: especially for rough, sand-blasted surfacesCTC: calibration on coated object if zeroing is not possibleZero offset: addition/subtraction of a constant value to/from the reading |
Limit values | Selectable; optical and acoustic signal if limit value is exceeded |
Scan mode | For continuous measurements; for the quick recognition of coating thickness variations; with permanent display of minimum and maximum reading |
Statistics | Single-value statistics: n, avarage x, s, kvar, min, max, cp, cpk from max. 10,000 readings Block-value statistics: n, avarage x , avarage s, avarage kvar , min, max, cp, cpk; block size 3 to 100 readings |
Data memory | 10,000 readings in max. 500 selectable files; alphanumerical file names; stored readings and statistical values individually recallable |
Interfaces | Infrared and serial RS232 interface |
Language | Operator prompting and documentation in German, English, French (optional other languages) |
Operating temperature | 0 °C to 50 °C/32 °F to 122 °F (storage temperature - 20 °C to +60 °C/-4 °F to 140 °F) |
Surface temperature | 5° F - 140° F / -15° C - 60° C (standard) 5° - 302° F / 15° - 150° C (w/optional footer) |
Power supply | 2 x round cell (AA) 1.5 V up to 60 hours of operating time |
Housing/keypad | Protection class IP52 (protection against dust and dripping water) |
Dimensions | Gauge: 140 mm x 62 mm x 30mm/5.6" x 2.5" x 1.2" (HxWxD) Probe: dia. 14 mm x 83mm/dia. 0.56" x 3.3" |
Weight | approx. 200 g/7 oz (gauge including batteries and probe) |
Standards | DIN EN ISO, ASTM, BS |
Warranty | 1 Year |
Calibration Certificate | Included |

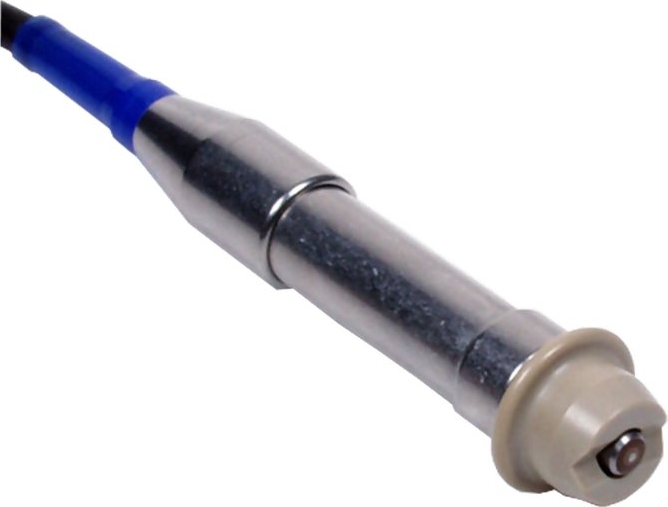

Probe Specifications
Type
Range
Accuracy
Resolution
Min. concave
Curvature
Min. convex
Curvature
Min. Area for
Measurement
Min. Substrate
Thickness
FN
F+N
0-1600 µm
±(1-3% + 0.04 mils)
0.1µm
0.06"
0.40"
Ø0.20"
F=0.02"
N=0.002"
FN90
F+N
0-1600 µm
±(1-3% + 0.04 mils)
0.1µm
flat
0.23"
Ø0.20"
F=0.02"
N=0.002"
F
F
0-1600 µm
±(1-3% + 0.04 mils)
0.1µm
0.06"
0.40"
Ø0.20"
0.02"
F10
F
0-10 mm
±(1-3% + 0.03 mils)
0.03"
0.63"
Ø0.80"
0.04"
N02
N
0-200 µm
±(1-3% + 0.02 mils)
0.1µm
0.04"
0.20"
Ø0.08"
0.002"
N
N
0-1600 µm
±(1-3% + 0.04 mils)
0.1µm
0.06"
0.40"
Ø0.20"
0.002"
