Checkline 3000PRO Coating Thickness Gauge

See More Coating Thickness Gauges
$1,295.00 - $2,390.00

    Product Description
    Manufacturer: Checkline
    Warranty: One Year

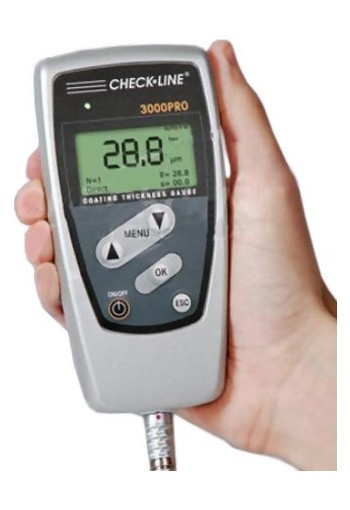

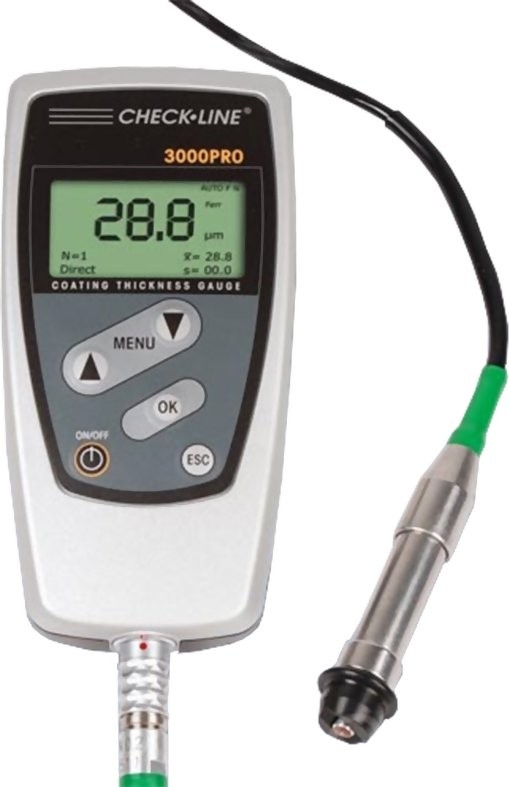

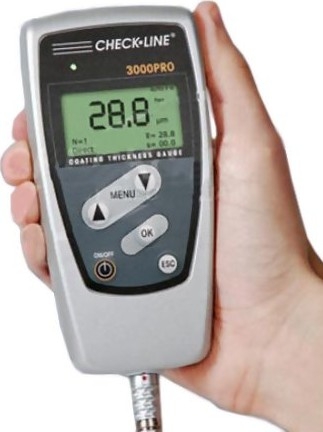

    The new Check-Line 3000PRO Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for:

    • paint and electroplated coatings on iron and steel
    • paint and anodizing coatings on non-ferrous metals and on austenitic stainless steels

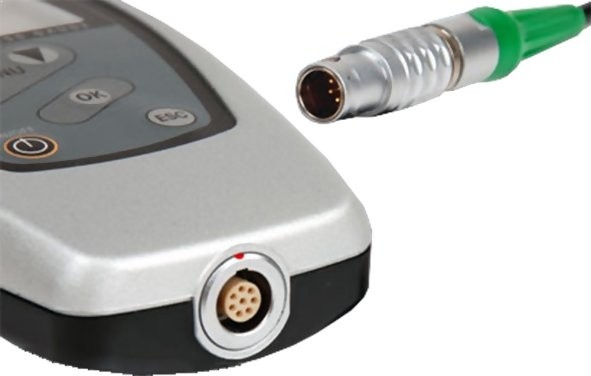

    The user will select the model best suited for their application. All the probes are interchangeable and their internal calibration is stored within a small microchip inside the probe connector housing. This provides for quick and easy hot-swapping from one probe to any other in seconds.

    Six (6) different models are offered for a wide variety of applications.

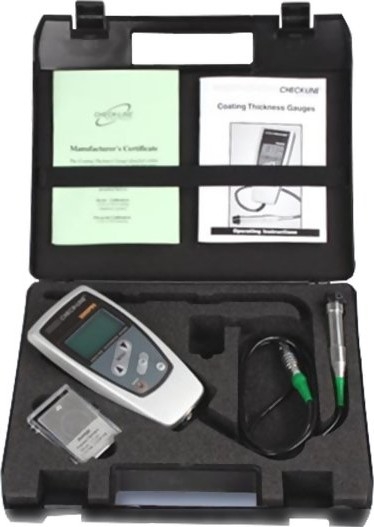

    Kit Contents

    • 3000PRO Coating Thickness Gauge
    • Probe
    • Manufacturers calibration certificate,
    • Ferrous and or non-errous zero plate(model dependant)
    • 2 calibration foils
    • 2 AA batteries
    • Soft pouch
    • Instruction manual
    • Plastic carrying case


    • Automatic identification of the substrate
    • Calibration-free measurements (calibration only in exceptional cases)
    • Mobile and stationary operation with only one gauge
    • Highly wear-resistant measuring poles made of carbide metal
    • The 3000PRO Coating Thickness Gauge features special probes for unusual measurement tasks
    • Precise measurements on different geometries thanks to simple calibration methods
    • Safe use even for special applications such as sand-blasted surfaces, small parts and curved surfaces
    • Scan mode for the quick recognition of coating thickness variations on large surfaces, including display of minimum and maximum readings
    • Display backlight for bad ambient lighting conditions
    • Online statistics with all statistical parameters
    • Easy to operate, well-known from mobile phones
    • Intuitive menu guidance via dialog with the user
    • Free choice of language – German, English, French
    • Extensive data memory for the management of different measurement series
    • Alphanumerical file names can be individually stored for every measurement task
    • Infrared interface for wireless data transfer to printer and PC
    • No additional data transfer software required thanks to the use of Windows® standard application (HyperTerminal)

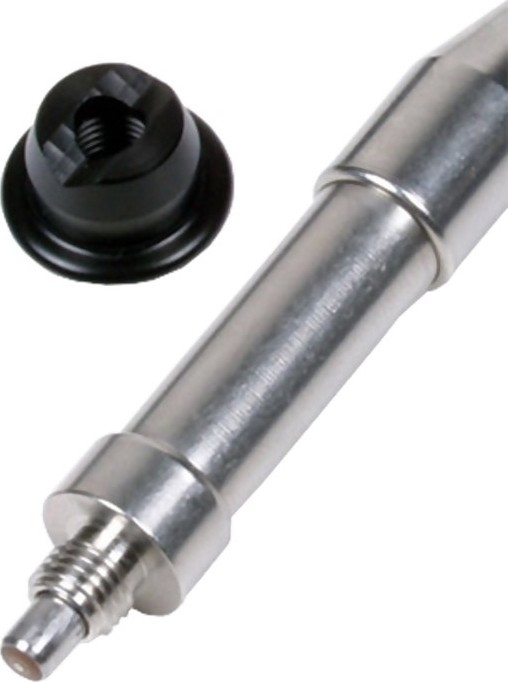

    • Optional high temperature footer for measuring on surfaces up to 150 °C/302 °F
    • The 3000PRO Coating Thickness Gauge includes NIST Calibration Certificate
    • 1 Year Warranty


    Measuring principleMagnetic induction method (F-version); Eddy current method (N-version)
    Measuring range3000PRO & 3000PRO-FN90: 0 - 60.00 mils / 0 - 1500 µm
    3000PRO-F10: 0 - 400 mils / 0 - 10,000 µm
    Tolerance± (0.7 µm/0.04 mils + 1% of reading)
    ResolutionRefer to RESOLUTION TABLE, above
    Display4-digit display (digit height 10 mm/0.4”) and 32 alphanumerical characters; switchable backlight
    Minimum measurement area5 mm x 5mm/0.2” x 0.2”
    Minimum curvature radiusconvex 2mm/0.08”; concave 5mm/0.2”
    Minimum substrate thickness0.2mm/8 mils (for F-versions); 50 µm/2 mils (for N-versions)
    Calibration methods
  • Factory calibration: no calibration required for standard applications
  • Zeroing (1-point calibration): measurements on small geometries
  • Zeroing and foil calibration (2-point calibration): increased measuring accuracy
  • Two-foil calibration: especially for rough, sand-blasted surfaces
  • CTC: calibration on coated object if zeroing is not possible
  • Zero offset: addition/subtraction of a constant value to/from the reading
  • Limit valuesSelectable; optical and acoustic signal if limit value is exceeded
    Scan modeFor continuous measurements; for the quick recognition of coating thickness variations;
    with permanent display of minimum and maximum reading
    StatisticsSingle-value statistics: n, avarage x, s, kvar, min, max, cp, cpk from max. 10,000 readings
    Block-value statistics: n, avarage x , avarage s, avarage kvar , min, max, cp, cpk; block size 3 to 100 readings
    Data memory10,000 readings in max. 500 selectable files; alphanumerical file names; stored readings and statistical values individually recallable
    InterfacesInfrared and serial RS232 interface
    LanguageOperator prompting and documentation in German, English, French (optional other languages)
    Operating temperature0 °C to 50 °C/32 °F to 122 °F (storage temperature - 20 °C to +60 °C/-4 °F to 140 °F)
    Surface temperature5° F - 140° F / -15° C - 60° C (standard)
    5° - 302° F / 15° - 150° C (w/optional footer)
    Power supply2 x round cell (AA) 1.5 V up to 60 hours of operating time
    Housing/keypadProtection class IP52 (protection against dust and dripping water)
    DimensionsGauge: 140 mm x 62 mm x 30mm/5.6” x 2.5” x 1.2” (HxWxD)
    Probe: dia. 14 mm x 83mm/dia. 0.56” x 3.3”
    Weightapprox. 200 g/7 oz (gauge including batteries and probe)
    StandardsDIN EN ISO, ASTM, BS
    Warranty1 Year
    Calibration CertificateIncluded

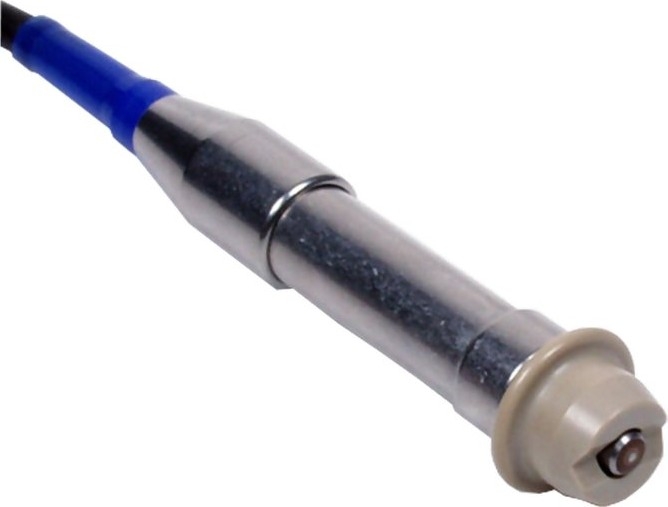

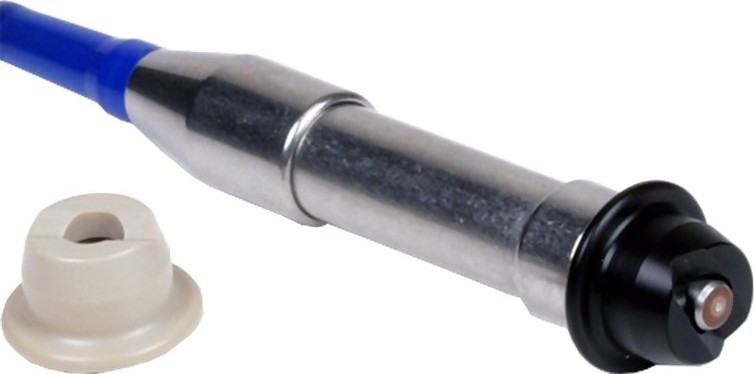

    Probe Specifications

    FNF+N0-1600 µm
    ±(1-3% + 0.04 mils)0.1µm
    FN90F+N0-1600 µm
    ±(1-3% + 0.04 mils)0.1µm
    FF0-1600 µm
    ±(1-3% + 0.04 mils)0.1µm
    F10F0-10 mm
    ±(1-3% + 0.03 mils)
    N02N0-200 µm
    ±(1-3% + 0.02 mils)0.1µm
    NN0-1600 µm
    ±(1-3% + 0.04 mils)0.1µm


    Min. concave
    Min. convex
    Min. Area for
    Min. Substrate
    FN0.06" 0.40" Ø0.20" F=0.02"
    FN90flat 0.23" Ø0.20" F=0.02"
    F0.06" 0.40" Ø0.20" 0.02"
    F100.03" 0.63" Ø0.80" 0.04"
    N020.04" 0.20" Ø0.08" 0.002"
    N0.06" 0.40" Ø0.20" 0.002"
