PCWI Holiday Detectors

PCWI Holiday Detectors are employed in the non-destructive detection and location of pinholes, holidays, bare spots or thin points in protective coatings applied for corrosion protection over metal or concrete (conductive) surfaces. Holiday Detector is also known as a porosity detector, pinhole tester, spark tester, jeep tester or jeeper.

PCWI Holiday Detectors are suitable for production pipeline coating operations, tank work and structures.

We proudly offer a full range of PCWI Holiday Detectors with the best prices and quick deliveries. If you require any additional information, please contact us by e-mail, chat or telephone and a product specialist will be glad to assist you.

PCWI DC High Voltage Holiday Detectors: 4 Models Available

Complies with the requirements of: AS3894.1-2002 (R2013) and Nace Standards: SP0490-2007; SP0274-2011 & SP0188-2006


Product	PCWI DC15-IK Compact DC15 High Voltage Holiday Detector Industrial Kit No. 0920 / DC15IND	PCWI DC30-IK Compact DC30 High Voltage Holiday Detector Industrial Kit No. 0930 / DC30IND	PCWI DC15-PK Compact DC15 High Voltage Holiday Detector Pipeline Kit No. 0925 / DC15PIPE	PCWI DC30-PK Compact DC30 High Voltage Holiday Detector Pipeline Kit No. 0935 / DC30PIPE
Order Code	DC15-IK	DC30-IK	DC15-PK	DC30-PK
Voltage Display	0 to 15kV	0 to 30kV	0 to 15kV	0 to 30kV
Alarm Range	500V to 15kV	500V to 30kV	500V to 15kV	500V to 30kV
Resolution	10V	10V	10V	10V
Accuracy	±5% of reading or ±50.0V below 1.0kV	±5% of reading or ±50.0V below 1.0kV	±5% of reading or ±50.0V below 1.0kV	±5% of reading or ±50.0V below 1.0kV
Short Circuit	Test Current 0.5mA Max	Test Current 0.5mA Max	Test Current 0.5mA Max	Test Current 0.5mA Max

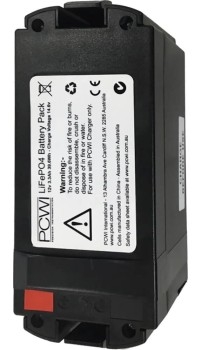

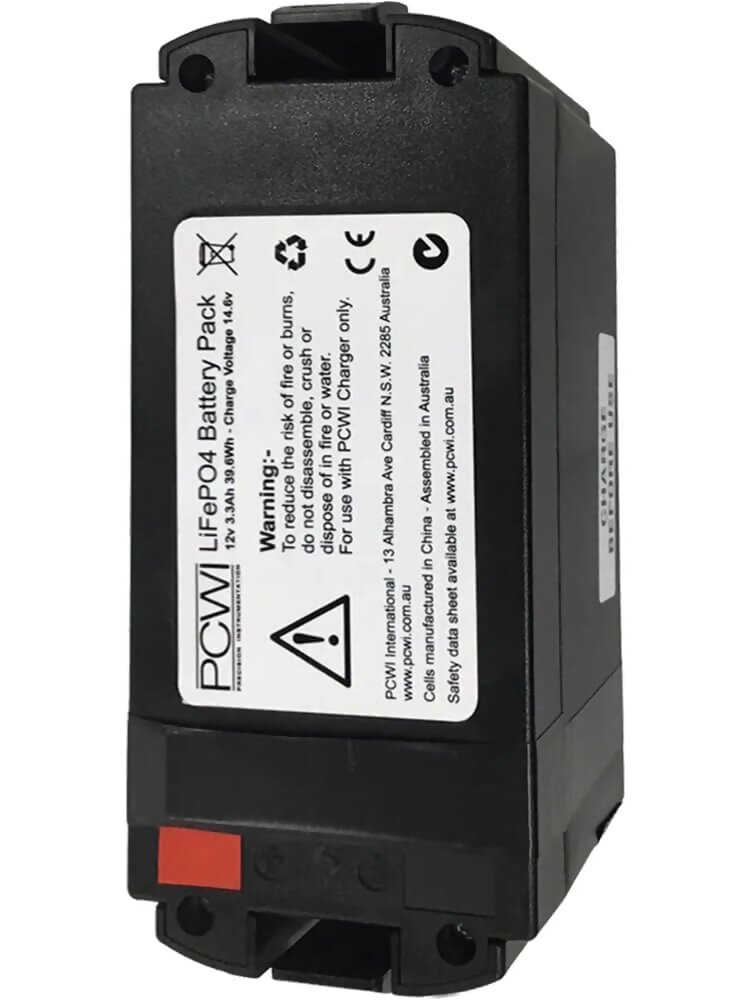

Power Supply	LiFePO4 Clip-on	LiFePO4 Clip-on	LiFePO4 Clip-on	LiFePO4 Clip-on
Operating Temperature	0°C to 60°C	0°C to 60°C	0°C to 60°C	0°C to 60°C
Alarm	Audible and Visual	Audible and Visual	Audible and Visual	Audible and Visual
Display	LCD 3¾ Digits	LCD 3¾ Digits	LCD 3¾ Digits	LCD 3¾ Digits
Probe Handle	2m High-Voltage Silicon-Rubber lead	2m High-Voltage Silicon-Rubber lead	2m High-Voltage Silicon-Rubber lead	2m High-Voltage Silicon-Rubber lead
Dimensions	260 x 160 x 70mm	260 x 160 x 70mm	260 x 160 x 70mm	260 x 160 x 70mm
Unit Weight	845g without Battery \| 1.45kg with Battery	845g without Battery \| 1.45kg with Battery	845g without Battery \| 1.45kg with Battery	845g without Battery \| 1.45kg with Battery
Kit Contents
Detector with Clip-on Battery
Spare Clip-on Battery & Terminal Protector	---	---
Coil Joiner	---	---

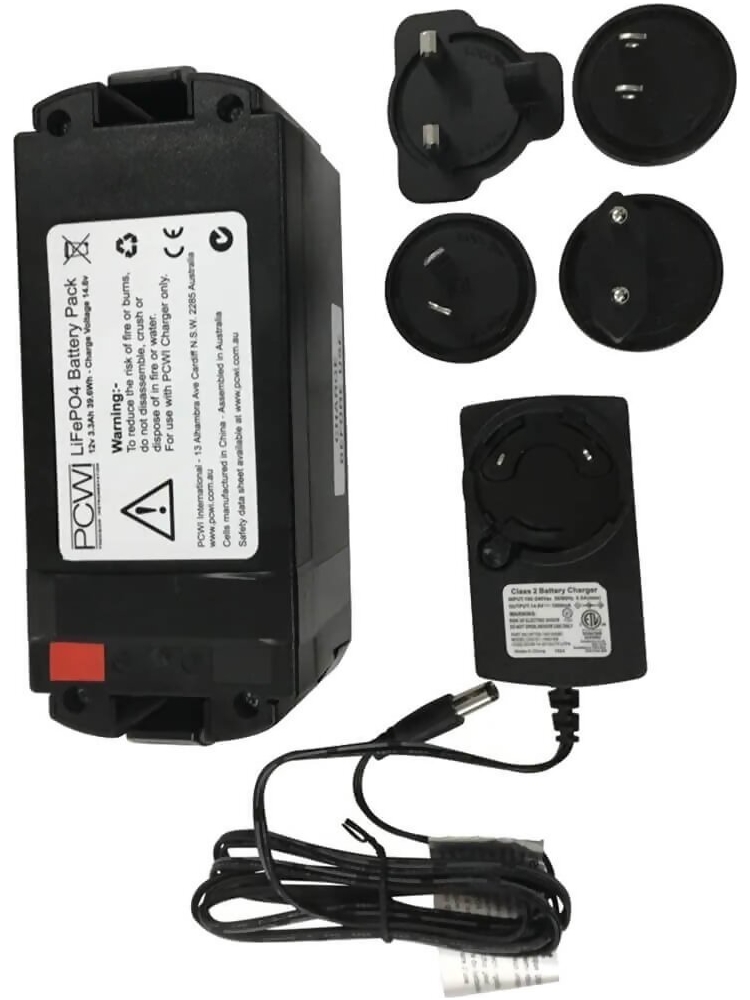

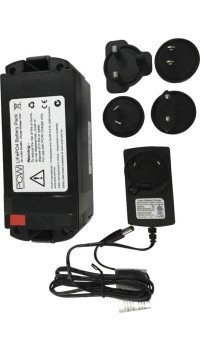

Universal Charger
Probe Handle with Neon and 2m Lead
60mm Connector for Flat Brushes

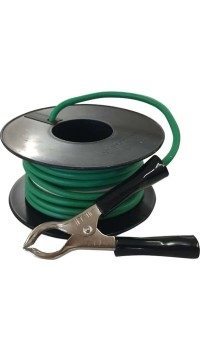

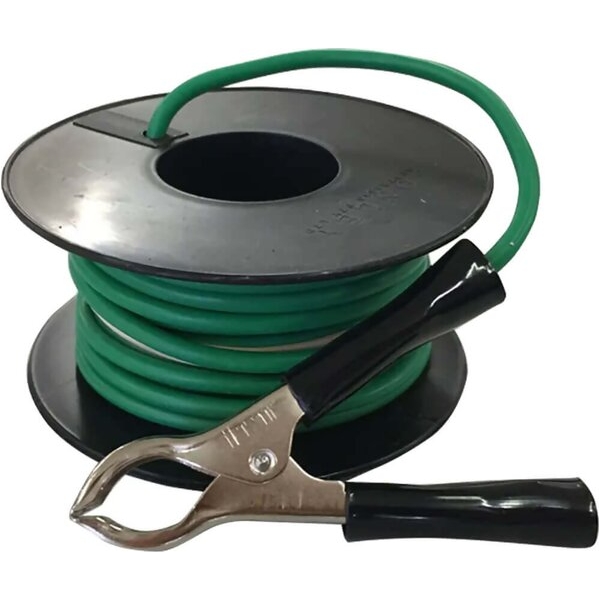

7m Earth Lead with Clamp
Fan Brush
450mm Connector
Air-Operated Earphones
Shoulder & Waist Harness
Kit Case
Operating Instructions
Manufacturers Certificate

PCWI Pulse High Voltage Holiday Detectors: 4 Models Available

Complies with the requirements of: AS3894.1-2002 and Nace Standards: SP0490-2007; RP0274-2004 & SP0188-2006


Product	PCWI P20-IK Compact Pulse P20 Holiday Porosity Detector	PCWI P40-IK Compact Pulse P40 Holiday Porosity Detector	PCWI P20-PK Compact Pulse P20 Holiday Porosity Detector	PCWI P40-PK Compact Pulse P40 Holiday Porosity Detector
Order Code	P20-IK	P40-IK	P20-PK	P40-PK
Packed Weight	4.8 lbs (2.2 kg)	4.8 lbs (2.2 kg)	4.8 lbs (2.2 kg)	4.8 lbs (2.2 kg)
Packed Weight	13.2 lbs (6.0 kg)	13.2 lbs (6.0 kg)	13.2 lbs (6.0 kg)	13.2 lbs (6.0 kg)
Display	LED	LED	LED	LED
Voltage	1 to 20kV	5 to 40kV	1 to 20kV	5 to 40kV
Resolution	100V	100V	100V	100V
Alarm Range	2 to 20kV	5 to 40kV	2 to 20kV	5 to 40kV
Short Circuit Test Current	1.5 mA max.	1.5 mA max.	1.5 mA max.	1.5 mA max.
Power Supply	Gell Cell 3Ah Clip-On	Gell Cell 3Ah Clip-On	Gell Cell 3Ah Clip-On	Gell Cell 3Ah Clip-On
Dimensions	10.25" x 6.3" x 2.8" (260 x 160 x 70 mm)	10.25" x 6.3" x 2.8" (260 x 160 x 70 mm)	10.25" x 6.3" x 2.8" (260 x 160 x 70 mm)	10.25" x 6.3" x 2.8" (260 x 160 x 70 mm)
Alarm	Audible	Audible	Audible	Audible
Probe Handle	Rubber Lead	Rubber Lead	Rubber Lead	Rubber Lead
Battery Condition	LED Indicator	LED Indicator	LED Indicator	LED Indicator
Kit Contents
Clip-on power pack
10-hour charger
spare clip-on battery pack
probe handle with 79" (2m) long cable
2.4" (60mm) connector for flat brush electrodes			---	---
22 (7m) long ground cable with clamp
fan brush
10" (250mm) wide flat brass wire brush			---	---
coil joiner with 18" (450mm) long probe extension
air-operated earphones
shoulder and waist harness
carrying case
operation instructions
conformance certificate

PCWI Low Voltage Pinhole Tester

Complies with the requirements of: AS3894.1-2002 (Wet Sponge Testing); ASTM G62-07; ASTM G60-07; ASTM D5162-08; Nace Standards: RP0274-2004 & SP0188-2006


Product	PCWI Compact Wet Sponge Low Voltage Pinhole Tester 0789 WETSPONGE
Order Code	P20-IK
Range	0 to 500 micrometres
Operating Temperature	32 to + 122°F - 0 to 50 degrees Celsius
Test Voltage	9, 67.5 and 90V (selectable)
Accuracy	+5% to -10%
Alarm	Audible and Visual
Duration	Audible 300ms minimum
Sensitivity	The alarm will sound when the resistance drops below 90kohm (+/- 10%)
Power	9V Battery
Battery Life	8 hours continuous (at 90V)
Telescopic Probe Length	14" to 47" - 350mm to 1.2m
Dimensions	8.25" x 3" x 1.25" - 210 x 75 x 35mm
Kit Contents
PCWI Compact Wet Sponge Pinhole Tester
Handle including Sponge
Belt/Pocket clip
Seven metre earth lead and clip
Conformance Certificate
Operating Instructions
Carrying Case

DeFelsko PosiTest HHD Series:

Accessories

PCWI High Voltage DC Crest Meter

High Voltage Direct Current Crest Meter, Jeep Meter or Volt Meter
Measuring Range: 0 to 30,000 Volts

line

PCWI High Voltage Pulse Crest Meter

High Voltage Direct Current Crest Meter, Jeep Meter or Volt Meter
Measuring Range: 5,000 to 30,000 Volts

line

Flat Brush Electrodes

Flat (Straight) Brush Electrodes for Porosity Holiday Detectors
Straight Flat Brass Brush Electrodes
Available in diameters of 2" (50mm) to 24" (600mm)

line

Circular Pipeline Coils

Full Circle Spring Electrodes
Available in diameters of 2" (50mm) to 56" (1420mm)

line

Circular Internal Brush Electrodes

Internal Circular Brush Electrodes for Porosity Holiday Detectors
Internal Pipeline Disk & Spiral Wound Brushes
Available in diameters of 2" (50mm) to 20" (508mm)

PCWI Holiday Detectors are employed in the non-destructive detection and location of pinholes, holidays, bare spots or thin points in protective coatings applied for corrosion protection over metal or concrete (conductive) surfaces. PCWI Holiday Detectors are suitable for production pipeline coating operations, tank work and structures. Holiday Detector is also known as a porosity detector, pinhole tester, spark tester, jeep tester or jeeper.
