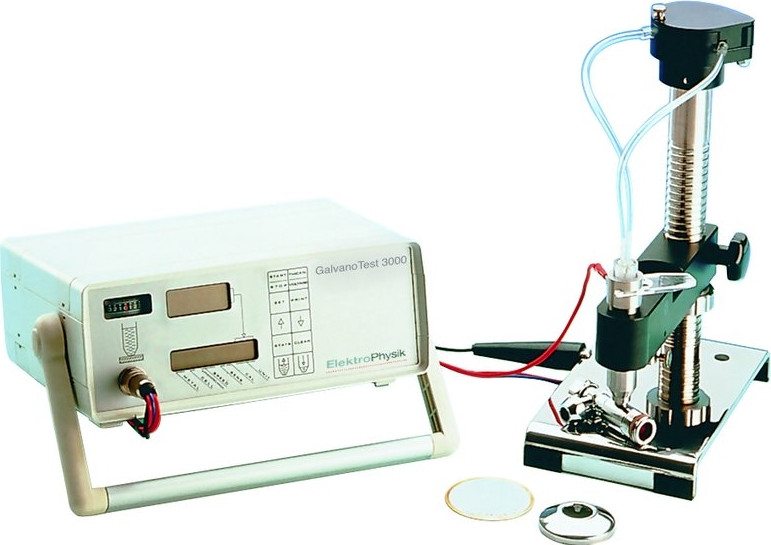

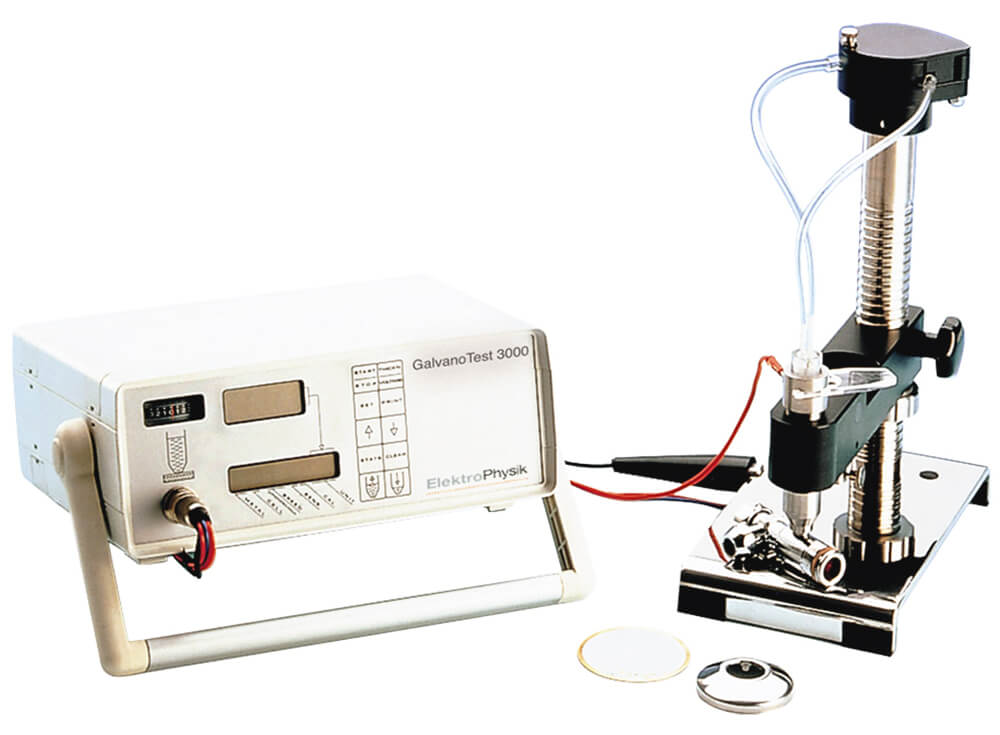

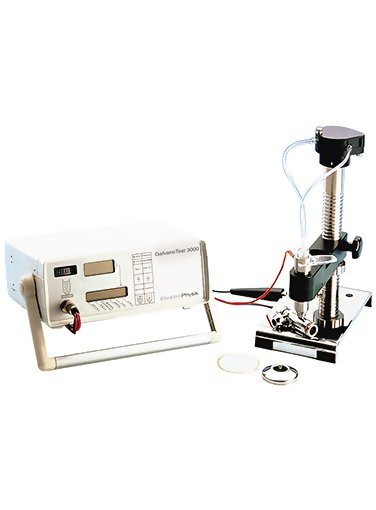

ElektroPhysik 80-304-0001 GalvanoTest GAL 3000 Coating Thickness Gauge using the coulometric principle supplied with circulation pump

See More Coating Thickness Gauges

ElektroPhysik 80-304-0001 GalvanoTest GAL 3000 Coating Thickness Gauge using the coulometric principle supplied with circulation pump

See More Coating Thickness Gauges
Call for price
    warrenty

    Product Description
    ElektroPhysik GalvanoTest Coulometric Coating Thickness Gauge
    Electropating Thickness Gauge utilizing the coulometric principle, a de-plating method conforming to DIN 50 955 and ISO 2177

    The ElektroPhysik GalvanoTest Coulometric Coating Thickness Gauge is a device to measure coating thickness based on the Coulometric principle and be used for virtually all electroplated single or multi-layered coatings. The electroplated coatings like chromium, nickel, cadmium, copper, brass, silver, gold, tin, zinc can be measured on metals or non-metals.

    The ElektroPhysik GalvanoTest Coulometric Coating Thickness Gauge is available in two models:
    GalvanoTest 2000: the electrolyte is moved by a pulsator nozzle
    GalvanoTest 3000: large electrolyte volumes moved by a circulation pump enable quick serial measurements. Suited for use on very small parts and to measure gold layers.

    The anodic dissolution method, also known as Faraday's Coulometric method, works on the lines of the electroplating process: electric current passed through an electrolyte separates individual metal coatings from the substrate. By measuring the current and time the Galvano Test determines the thickness of the coating separated.

    Measuring range: 50 nm - 75 µm / 0.002 - 3 mils.


    line
    Kit Contents
    line

    • GalvanoTest device
    • Standard stand with measuring cell and pulsator nozzle (GalvanoTest 2000)
    • Measuring stand with integrated circulation pump and measuring cell type 1 (GalvanoTest 3000)
    • Connecting cable gauge / stand
    • Ring gaskets and masks
    • Electrolytes
    • Pipettes
    • Bottle for electrolyte waste
    • Spray bottle
    • Rubber pencil
    • Absorbent paper
    • Operating manual


    line
    Features
    line

  • 8 de-plating speeds from 0.3 to 40 µm / min
  • Measuring surface ranging between 0.25 and 8 mm²
  • Measuring range between 50 nm and 75 µm / 0.002 - 3 mils
  • An electrolyte beaker (accessory) to measure wires
  • Variable shut-down speeds to measure alloy zones
  • A wide range of special accessories for measurements on small components and wires
  • Application:
    • Destructive measurement of: Electroplated coatings like chromium, nickel, cadmium, copper, brass, silver, gold, tin, zinc on metallic or non-metallic substrates


    line
    Specifications
    line

    Coating/substrate combinationsmore than 70 coating/substrate combinations (standard version) coatings on flat and curved surfaces coatings on small components and wires 10 preset types of metal: Cr, Ni, Cu, brass, Zn, Ag, Sn, Pb, Cd, Au 8 further metal coatings for special applications measuring range: 0.05…75 μm
    Measuring cellwith circulation pump
    Measuring surfacegasket 4 mm2/6.2 x 10-3 inch2 mask 1 mm2/1.55 x 10-3 inch2 mask 0.25 mm2/0.388 x 10-3 inch2 (deplated area nearly invisible) electrolyte cup 0.25 mm2 to approx. 16 mm2/(0.388–24.8) x 10-3 inch2 (optional)
    Adjustable settings for optimum resultsmaximum of 8 deplating speeds in the range of approx. 0.3–40 μm (0.012–1.57) mils/min directly adjustable calibration factors; individual setting according tometal type and measuring surface calibration setting with the aid of thickness standards variable shut-down speed to suppress interference or for measuring alloy zones between coating and substrate
    Data storage with GalvanoTestnumber of memories for various metals: 18 number of readings which can be stored and evaluated: 2000 non-volatile memory retains all calibration settings, readings and statistical values after the gauge has been switched off
    Statistical evaluationdisplay of 6 statistical values – mean value, standard deviation, coefficient of variation,number of readings, highest and lowest single reading immediate or delayed display of statistical values immediate or delayed print-out of readings and statistics display and print-out of date and time – year, month, day, hour and minute
    GalvanoTest interfaces for peripheral devicesinterface for MiniPrint data printer interface for an RS 232 C for connection to a PC analog output for connection to an x-t recorder to chart voltage curve
    Measuring uncertainty5 % of reading on a measuring area of 8 mm2 after calibration
    Power supply110/220 V 50…60 Hz/10 Watt
    Dimensions and weight260 mm x 250 mm x 100 mm/10.24 inch, 9.85 inch, 3.94 inch; approx. 2.5 kg (gauge) support with integrated pump approx. 3.0 kg
