Checkline TSD Torque Screwdriver

See More Torque Screwdrivers

Checkline TSD Torque Screwdriver

See More Torque Screwdrivers
Price:
$369.00
    warrenty

    Product Description
    Checkline TSD Digital Torque Screwdriver
    3 Ranges, Up to 35 lbf-in capacity
    Units of measure: lb-in, kg-cm, cN-m

    3 Models

    • TSD-50: Measuring Range: 0.45 - 4.50 lb-in / 5.0 - 50.0 cN-M (0.05 - 0.5 Nm)
    • TSD-200: 1.70 - 17.70 lb-in / 20.0 - 200.0 cN-M (0.2 - 2 Nm)
    • TSD-400: Measuring Range: 3.50 - 35.00 lb-in / 40.0 - 400.0 cN-M (0.4 - 4 Nm)

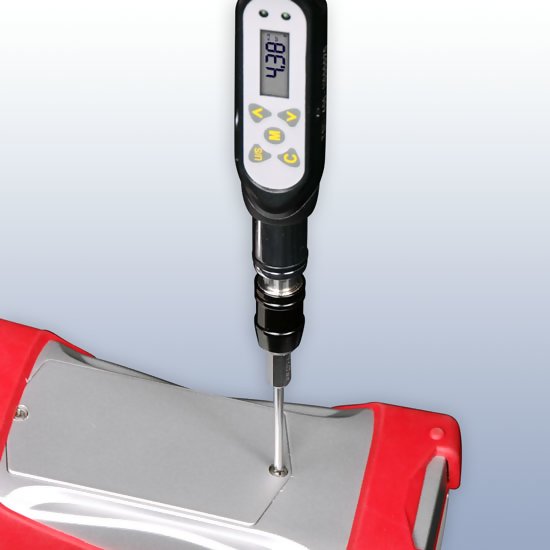

    Checkline TSD digital torque screwdrivers are designed for accurate measurement of application and removal torque of screws and fasteners. The TSD measures bi-directional torque in real-time or peak modes. 9 programmable target values can be preset to allow the operator to quickly fasten screws using audible and visual indicators to alert when the target value is reached or passed.

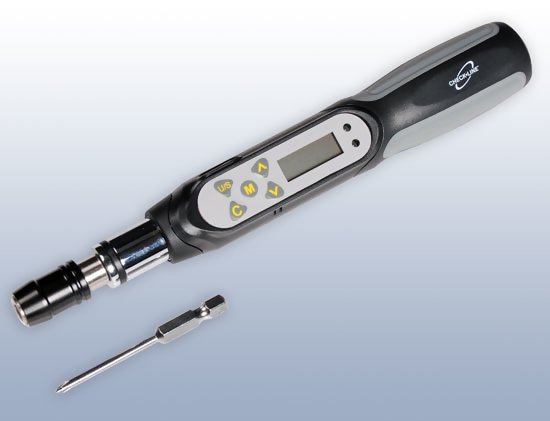

    The TSD uses standard 1/4" hex bits allowing it to be used on a wide range of applications. An auto-locking bit holder allows for quick changing between sizes


    line

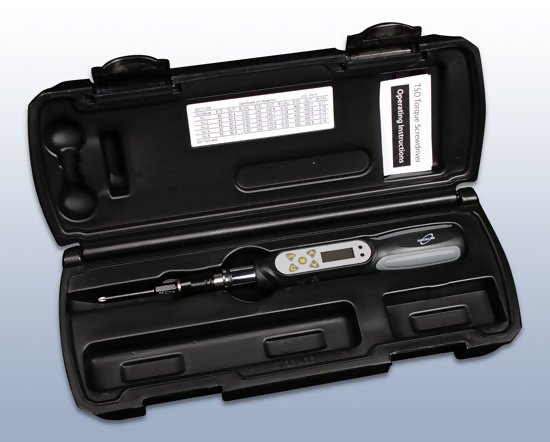

    Kit Contents
    line

    • TSD Torque Screwdriver
    • Phillips size 0 bit (2.1in / 55mm length)
    • Factory Calibration Cert
    • 1 AAA battery
    • Instruction Manual
    • Carrying Case


    line
    Features
    line

    • Uses standard 1/4" bits
    • Clockwise & Counter Clockwise Torque Measurement
    • 9 Programmable Target Torque Setpoints
    • Real time & Peak Torque Measurement
    • Display Units: lb-in, cN-M and Kg-cm
    • 1 AAA battery provides 12 hours of continuous use
    • CE Certified


    line
    Specifications
    line

    AccuracyClockwise: ±2% Counterclockwise: ±3% (of indicated)
    Guaranteed from 20-100% of capacity.
    Presets9 Programmable setpoints with both audible beep and Green/Red LED indicator
    Memory50 readings
    Presets9 Programmable setpoints with both audible beep and Green/Red LED indicator
    Drive1/4 Inch - 6.35 mm Hex
    Operating ModesPeak / Track (real-time)
    Power Supply1x AAA Battery (included)
    Working Time12 hours continuous use
    Auto OffAutomatic power off after 5 minutes of non-use
    Operating Temp.-10°C - 60°C
    Storage Temp.-20°C - 70°C
    DimensionsLength (without bit): 200mm / 8in
    Diameter at largest point: 29.5mm / 1.16in
    Weight100%g
    Warranty1 Year


    line
    Force Ranges
    line

    ModelRangeResolution
    TSD-500.45 - 4.50 lb-in | 5.0 - 50.0 cN-M | 0.50 - 5.00 kg-cm0.01 lb-in | 0.1 cN-M | 0.01 kg-cm
    TSD-2001.70 - 17.70 lb-in | 20.0 - 200.0 cN-M | 2.00 - 20.00 kg-cm0.01 lb-in | 0.1 cN-M | 0.01 kg-cm
    TSD-4003.50 - 35.00 lb-in | 40.0 - 400.0 cN-M | 4.00 - 40.00 kg-cm0.01 lb-in | 0.1 cN-M | 0.01 kg-cm


    line

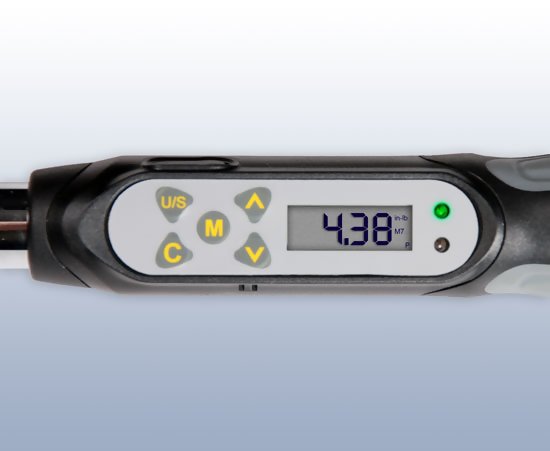

    Quick Start Instructions
    line

    1. Press C to power on screwdriver.
    2. Press U/S to select desired measuring unit.
    3. To select TRACK or PEAK mode press and hold the U/S key for 2 seconds, the display will show MODE, then press the up or down key to select between PEAK or TRACK mode (indicated by a small P or T in the bottom right corner of display). Then press the U/Skey three times to confirm your selection and return to measurement mode.
    4. Use up and down arrow keys to enter target torque. If you are simply measuring and do not have a target, adjust the setpoint to the highest value (maximum capacity of the screwdriver).

    Note, when there is no torque applied the TSD will display the target value or previous reading (in Peak mode).


    line
    Related Products
    line

    DID-4
    Digital Torque Screwdriver

    • Peak, Real Time and Peak Down measuring mode (selectable)
    • Runs on internal NiCad batteries (8 hour use) Auto shut-off after 10 min. of non-use
    • USB data output for SPC capability
    related

    line

    TT-QC
    Torque Tool Tester - AWS-QC

    • Bidirectional accuracy of ± 1% of indicated reading
    related

    line

    GLK
    Digital Torque Screwdriver

    • Five programmable torque presets ideal for frequent operations
    • High accuracy ±1.5% F.S. both CW and CCW directions
    related


    line
    Downloads
    line

    TSD Torque Screwdriver - Instruction Manual
