    Imada GLK Digital Torque Screwdriver
    3 Ranges up to 45 lbf-in
    High accuracy ±1.5% F.S. both CW and CCW directions

    3 Models with ranges up to 500 N-cm / 44 lb-in

    Imada GLK Digital Torque Screwdriver are compact, lightweight, and feature, LED and audible alarms, ergonomic handle, push button controls, and are battery powered.

    The Imada GLK measures torque in peak or real time modes. Auto zero mode resets peak measurements automatically (1~10 seconds). Selectable units of ozf-in, lbf-in, and N-cm.

    Five programmable torque presets stored in memory enable the user to check frequently used values. The presets alert the user with an intermittent signal at 90% and a continuous signal at 100% of the preset torque value using LED and audible indicators which enable users to tighten to within 10% of a preset torque value.

    Pass/Fail mode counts the number of fasteners tightened within programmed high and low torque limits.


    line
    Kit Contents
    line

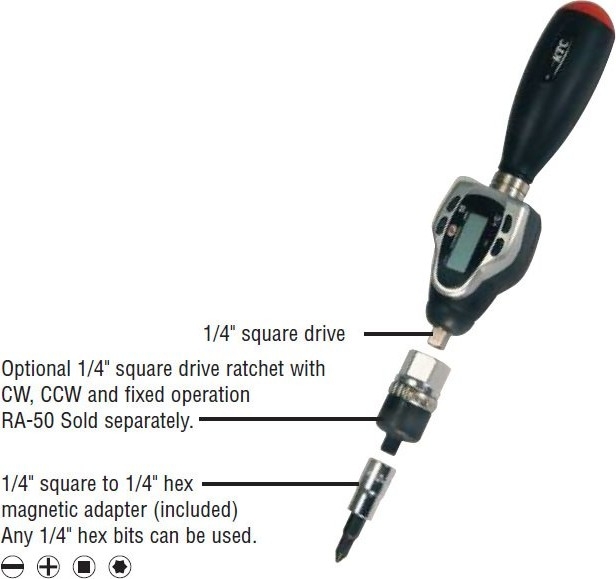

    • Imada GLK Digital Torque Screwdriver
    • 1/4" square drive, 1/4" square drive
    • 1/4" hex magnetic adapter
    • No. 1 Phillips tip
    • Battery
    • Calibration Certificate Traceable to NIST
    • Instructions

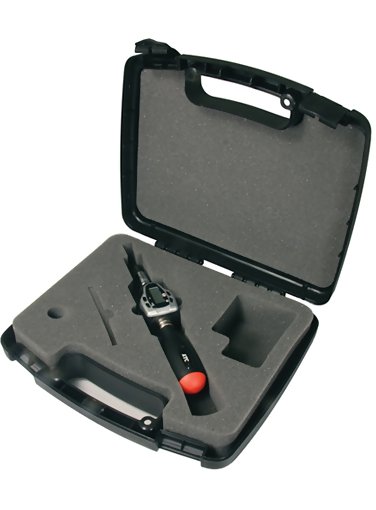

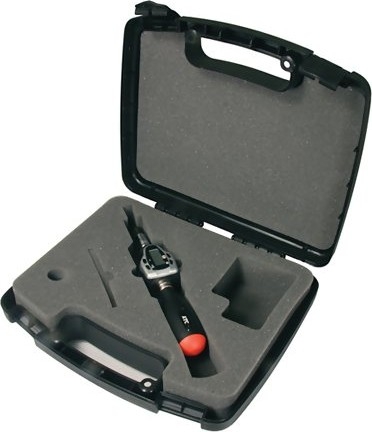

    • Carrying case not included


    line
    Features
    line

    • Supplied with Traceable Calibration Certificate
    • Rugged, high quality production tools
    • Five programmable torque presets ideal for frequent operations.
    • Peak, peak with auto zero reset and Real Time modes
    • Selectable units, ozf-in, lbf-in, N-cm
    • High accuracy ±1.5% F.S. both CW and CCW directions
    • Pass/Fail mode counts fasteners tightened within programmed High/Low limits, using LED and audible alerts
    • ISO-6789 Compliant


    line
    Specifications
    line

    Accuracy±1.5% F.S.
    Measuring DirectionCW and CCW
    Measuring UnitSelectable ozf-in, lbf-in, Nc-m
    Data Memory5 (storable target torque values), 1 (Pass/Fail Mode)
    Auto Shut OffAuto shut off after selectable interval of non-use (1 - 10 min)
    BatteryLithium coin battery CR2354
    Battery LifeApprox. 2 months (100 usages per day)


    line
    Torque Ranges
    line

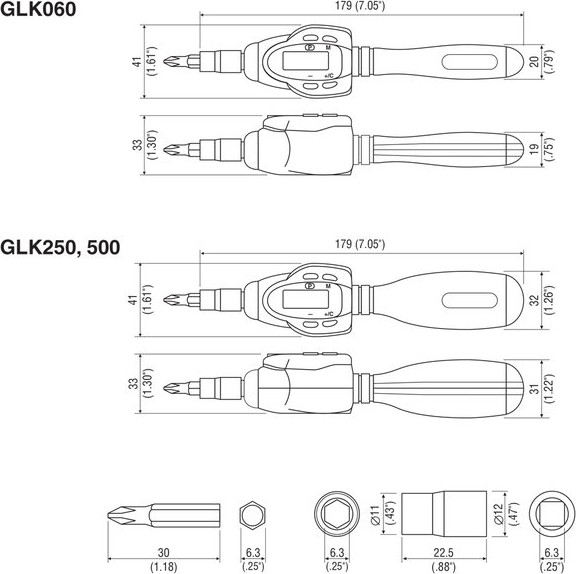

    Modellbf-inozf-inN-cm
    GLK060E0.05 - 5.310.9 - 85.00.60 - 60.00
    GLK250E0.22 - 22.133.5 - 354.02.5 - 250.0
    GLK500E0.44 - 44.257.1 - 708.05.0 - 500.0
