TSA750 Manual Lever Operated Test Stand

Manual Lever Operated Test Stand
750lb Capacity
6.00" Maximum Travel
Price  $975.
Manual Lever Operated Test Stand

TSA750 - Vertical
TSA750H - Horizontal

The lever operated Force Measurement Test Stand Model TSA750 is a perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.

Compatible with the following gauges, Series 5, MG, BG, CG, BGI

*Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately

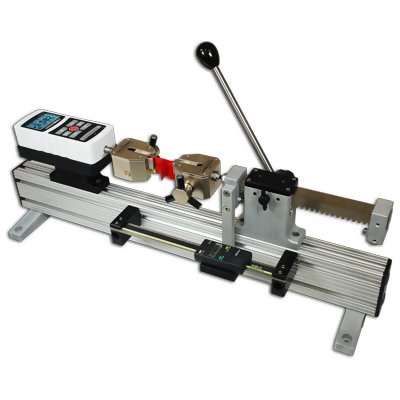

Optional Horizontal Configuration

line
reddot Photo Gallery - click any photo to enlarge
line

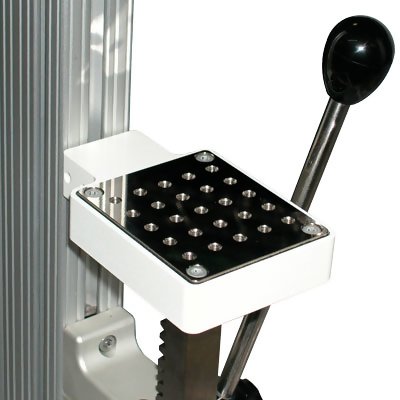

Optional mounting plate contains a matrix of threaded holes for grip and fixture mounting.

line
reddot Features of the TSA750 Manual Lever Operated Test Stand
line

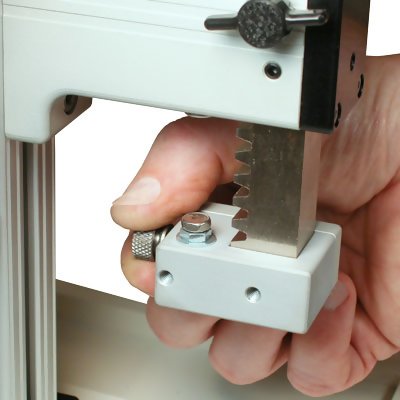

bluedot Precision ground rack and pinion mechanism
bluedot Threaded holes for bench mounting
bluedot Loading lever can be positioned in 30° increments for ease of operation
bluedot Adjustable travel stops
bluedot Adjustable wear plates for smooth, precise motion

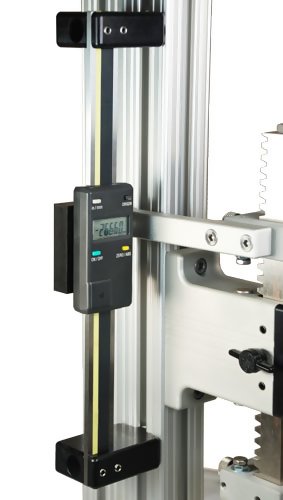

bluedot Optional digital travel display
bluedot Friction brake
bluedot Optional Mounting Table Contains a matrix tapped holes for grip and fixture mounting

line

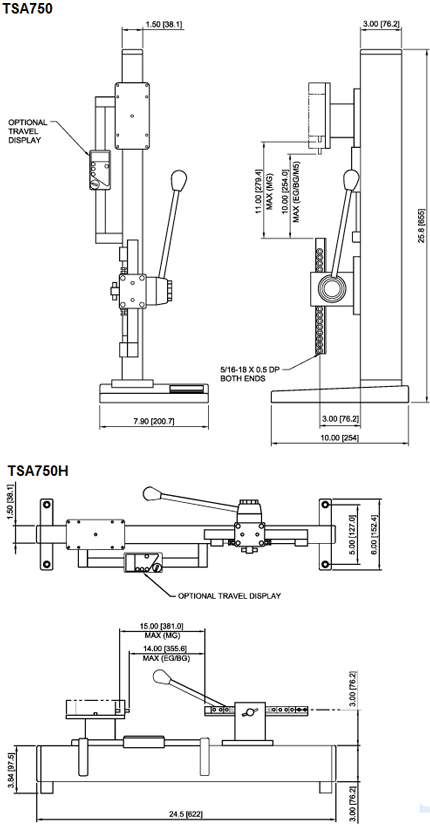

reddot Dimensions of the TSA750 Manual Lever Operated Test Stand
line dimensions

line
reddot Related Products for the TSA750 Manual Lever Operated Test Stand
line
Series-5
Advanced Digital Force Gauge - Model M5		 related

bluedot High-speed 7,000 Hz peak sampling rate

bluedot USB, RS-232, Mitutoyo, and analog outputs
___________________________________________

BGI
Remote Sensor Force / Torque Gauge		 related

bluedot Fully interchangeable force and torque BGI force/torque sensors with "personality" modules

bluedot Unlimited number of sensors possible due to unique design

bluedot RS-232, Mitutoyo and analog outputs
___________________________________________

MG
Economical Digital Force Gauge - Push Pull Gauge		 related

bluedot User-selected units of Pounds, Kilograms or Newtons

bluedot 3 Year Warranty

line
reddot Specifications of the TSA750 Manual Lever Operated Test Stand
line
Maximum force 750 lb
Maximum travel, with stops 3.75" [95 mm]
Maximum travel, without stops 6" [152 mm]
Travel rate 3" [76.2 mm]/lever revolution
Weight TSA750: 16 lb
TSA750H: 13 lb
Warranty 3 Years
line
reddot Download for the TSA750 Manual Lever Operated Test Stand
line
manual  Data Sheet  Click here to Download
manual  Instruction Manual  Click here to Download
line
reddot Buy Now
line

Please select the items you would like to purchase then click "Add to Cart"
Products:

TSA750 Manual Lever Operated Test Stand - Model





Accessories:
Accessories for Test Stands:
