Tension Meters, Mechanical
Tension Meters, Mechanical
A mechanical tension meter is a device used to measure tension in wires, cables, textiles, belts and more. Meters commonly use a 3 roller system where the material travels through the rollers causing deflection in the center roller that is connected to a analog indicator.
Displaying 1 to 10 (of 18 products)
| Product Image |
Item Name |
 |

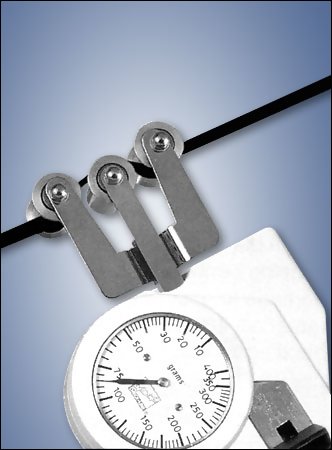

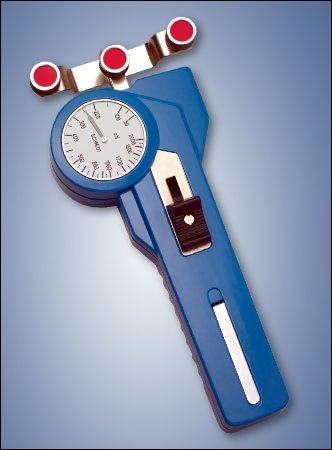

Ultra-Reliable, General Purpose 10 ranges, 5-50 g up to 5-50 kg Handy Rugged Metal Housing DX2 Tension Meter A precise jeweled movement, choice of ball bearing mounted rollers and rugged cast aluminum housing makes the DX2 ideal for the toughest production floor application. Built-in mounting holes permit fixed installation for continuous in-line use. Built-in...
|
 |

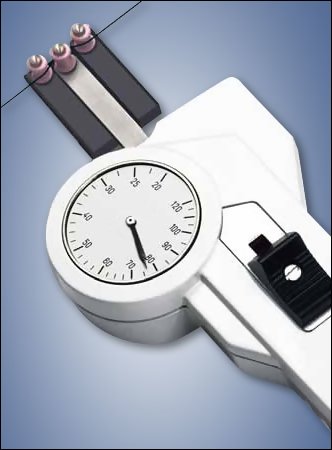

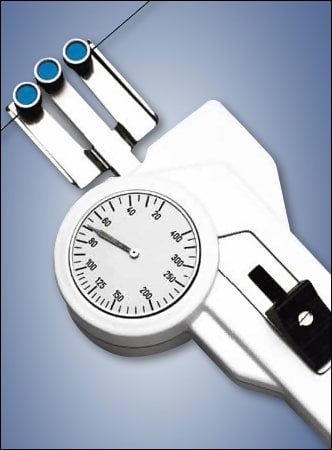

Limited Access Applications 9 Ranges, 3-30 g to 200-2000 g DX2F Limited Access Tension Meter Long, flat fingers and miniature V-grooved rollers are used in applications where there is limited access space or where the running filaments are close together. Measuring Head Dimensions Head Width (X): 38 mm Head Length (Y): 47 mm Features 22 mm distance...
|
 |
High Speed Filaments / Limited Access Ceramic Pins allow measuring speeds up to 6000 m/min DX2P Limited Access Tension Meter with Ceramic Pins The DX2P features ceramics pins for measurings filaments moving at high speeds. It's long, flat fingers allow use in applications where there is limited access space or where the running filaments are close together. Measuring...
|
 |

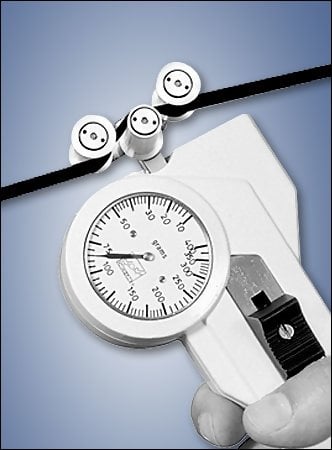

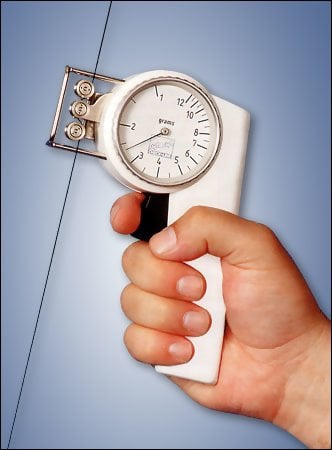

High Precision 12 ranges, 5-50 g up to 5-50 Kg Large linear dial face DXN High Precision Tension Meter 12 ranges, 5-50 g to 5-50 Kg A precision movement with high over-load capacity provides highest accuracy and long lasting calibration Features Large, linear scale for higher reading accuracy over the entire range. Material thickness compensation...
|
 |
For Tapes & Bands 6 ranges; 200-2000 g up to 5-50 Kg DXR Tape & Band Tension Meter The CHECK-LINE DXR Tension meter is designed for measuring all of tapes and bands, such as textile ribbons, films, foils, fiber bunches, etc. Dual-flanged rollers for narrow webs less then 4 inches (100 mm) width is optionally available. Note: This model does not include a filament...
|
 |
For wire EDM Machines Special versions for specific EDM machines are available Wire EDM Tension Meter Manufactures of wire-EDM machines recommend checking the erosion wire tension once a week. Depending on the machine type as well as the wire material and diameter, the measured tension should lie between 50 and 3000 g. The correct erosion wire tension reduces wire...
|
 |

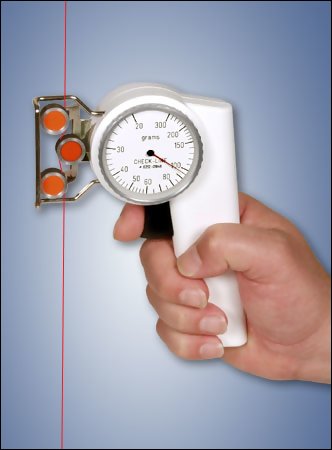

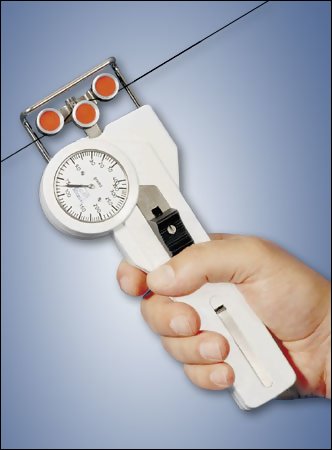

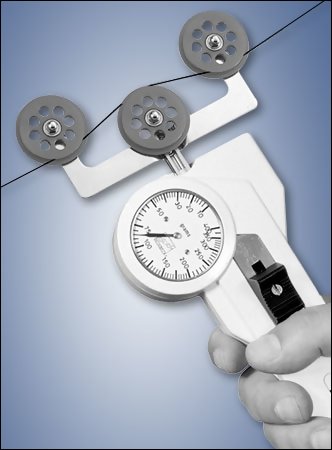

Optic Fibers / Fragile Filaments Large light-weight plastic rollers with 100mm spacing FX2 Optic Fiber Tension Meter Large diameter rollers and 100 mm spacing between outer rollers minimize damage to optic fibers and similar materials that cannot withstand a small bending radius. Finger Support: We recommend mounting a finger support for higher tension ranges...
|
 |

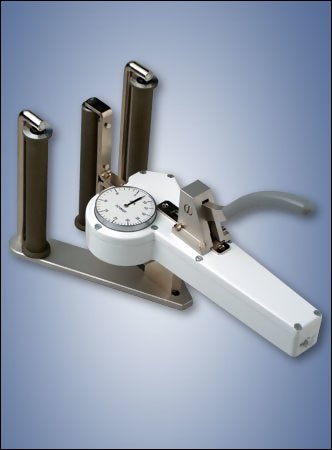

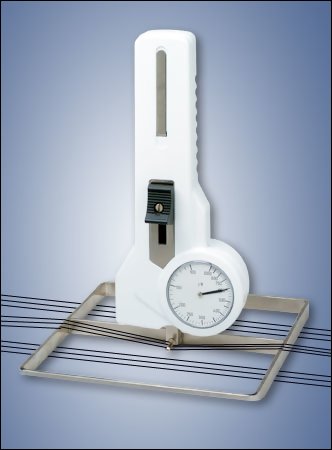

Warps Frame rests on warp while center pin scoops up ends for measurement KXB Warp Tension Meter A reference frame makes it easy to scoop up the selected number of ends for measurement and keeps the unit perpendicular while it rests on the warp. K10, K30 & EX ranges are supplied with a 10 mm sensing pin. For the 200 and 500 range codes select either a 17 or 34 mm...
|
 |

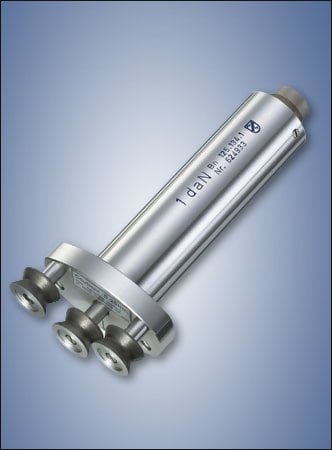

Available Rollers for Hand-Held Tension Meters Available Rollers for Hand-Held Tension Meters Standard Roller R12005 hard coated aluminum for line speeds up to max. 2000 m/min Code K R12008 hard coated aluminum for line speeds up to max. 3500 m/min Code H R12308 hard coated aluminum for line speeds up to max. 5000 m/min model DX2-120 and...
|
 |
Narrow Webs / Tapes Available with single or dual flanged cylindrical rollers up to 100mm long RX2/BX2 Narrow Web/Tape Tension Meter Cylindrical rollers are offered in 7, 10, 15, 20, 30, 36, 41 and 50 mm lengths to measure tapes, bands, films and similar materials. Roller length should not exceed 2x the width of the material being measured. Tension Ranges: Refer to...
|
Displaying 1 to 10 (of 18 products)
|
|
