Buy PosiTector 6000GP Coating Thickness Gauge for General Purposes

External probe for general purpose paint and coating applications

Range 0 - 60 mils (1500 µm)

Price $725. up to $1,525.

General Purpose Models

Range: 0 - 60 mils (1500 µm)
Resolution: 0.05 mil / 0.1 mil (1 µm / 2 µm)
Substrates: F, N or FN

The 6000GP Series General Purpose Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on ferrous and or non-ferrous metals accurately and quickly using magnetic and eddy current principles

The 6000GP is available in Standard (1) or Advanced (3) configuration. The standard model has a monochrome display, 250 reading memory and USB data output. The Advanced model adds a high contrast color LCD display, Scan Mode, Real-Time Graphing Bluetooth output and more.

Features of the 6000GP Coating Thickness Gages for General Purpose Applications

Easy-To-Use

Ready to measure—no calibration adjustment required for most applications
Enhanced one-handed menu navigation
Flashing display—ideal in a noisy environment
RESET feature instantly restores factory settings

Durable

Solvent, acid, oil, water and dust resistant - weatherproof
Wear-resistant probe tip
Shock-absorbing, protective rubber holster with belt clip
Two year warranty on gage body AND probe

Accurate

Certificate of Calibration showing traceability to NIST included (Long Form)
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for use on applications that require greater precision
Conforms to national and international standards including ISO and ASTM

Versatile

Fully interchangeable probes are compatible with ALL gage bodies
Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero
Selectable display languages
Hi Contrast backlit display for bright or dark environments
Flip display enables right-side-up viewing
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
Uses alkaline or rechargeable batteries (built-in charger)

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
FAST mode - faster measurement speed for quick inspection
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
Every stored measurement is date and time stamped
Software updates via web keep your gage current
Connects to PosiTector.net

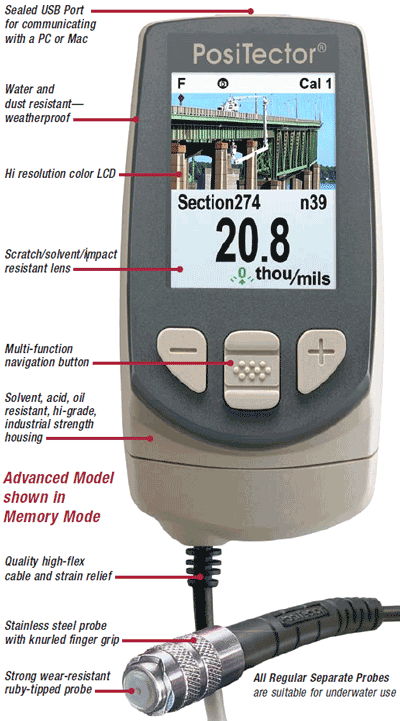

Photo Gallery for the 6000GP Coating Thickness Gages for General Purpose Applications- click any photo to enlarge

Probe Specifications of the 6000GP Coating Thickness Gages for General Purpose Applications

Regular
	Probe Models:	FS, NS, FNS
	Range:	0 -60 mils
		0 - 1500 um
	*Accuracy:**	+ (0.05 mils + 1%) 0 - 2 mils + (0.1 mil + 1%) > 2 mils
		+ (1 um + 1%) 0 - 50 um + (2 um + 1%) > 50 um
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

90° Probe
	Probe Models:	FRS, NRS, FNRS
	Range:	0 -60 mils
		0 - 1500 um
	*Accuracy:**	+ (0.05 mils + 1%) 0 - 2 mils + (0.1 mil + 1%) > 2 mils
		+ (1 um + 1%) 0 - 50 um + (2 um + 1%) > 50 um
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

Feature Comparison Chart

Feature Comparison Chart	Basic (1)	Memory (3)
Hi Contrast LCD Display	Monochrome	Color
FAST mode - faster measurement speed for quick inspection
SCAN Mode - take continuous readings without lifting the probe	-
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits
Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
Reading Storage Capacity	250 in one group	10,000 in up to 1000 groups
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels	-
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings	-
Onscreen help, real time graphing, picture prompting and batch notes	-
Multiple stored calibration adjustments for measuring on a variety of substrate conditions	-
Wireless Technology for data transfer to a PC or optional portable printer	-

Specifications of the 6000GP Coating Thickness Gages for General Purpose Applications

Measuring principle:	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display	Backlit & Reversible LCD
Data Output	USB - "1" & "3" Models Bluetooth - "3" Models
Surface Temp.	Maximum 120 °F / 49 °C
Power	3 AAA batteries, Included
Dimensions	5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight	5.8 oz. (165 g) without batteries
Protection Class	Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included
Min. Concave Radius	1 inch (2" OD)

Related Products for the 6000GP Coating Thickness Gages for General Purpose Applications

6000IP Series Intergral Probe Models
Integral probe for one hand use on paint and coating applications in the range of 0-60 mils (0-1500 µm)
___________________________________________

6000MP Series Micro Probe Models
Micro Probe for measuring thin coatings, small parts or hard to reach areas or spots
___________________________________________

6000TC Series Thick Coating Model
For thick paint and coatings from 60 to 250 mils
___________________________________________

6000TCX Series Extra Thick Coating Models
For extra thick paint and coatings from 150-500 mils
___________________________________________

PRINTERBT
Bluetooth Printer

Battery-operated

Receives data via Bluetooth wireless technology

Prints readings and statistical summary

___________________________________________

PosiTectorNET
A free web-based application offering secure centralized management of thickness readings

Complete Kit of the 6000GP Coating Thickness Gages for General Purpose Applications

ALL Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.
