ESM Motorized Force Test Stand

Motorized Force Test Stand
110lb Capacity
Price: $2,250.00 to $3,425.00

Motorized Test Stand


The ESM Motorized Force Measurement Test Stand is a versatile and precise testing solution for most compression and tensile testing applications up to 200 lb. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design.

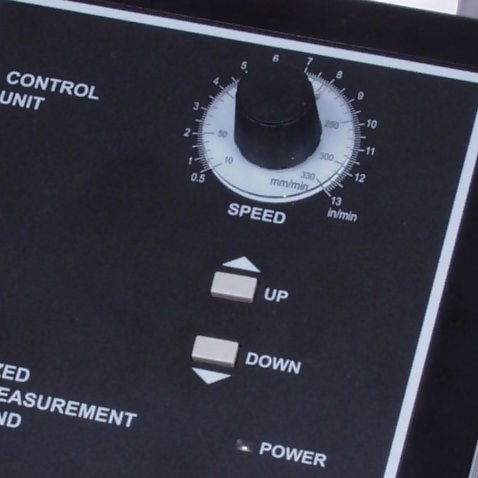

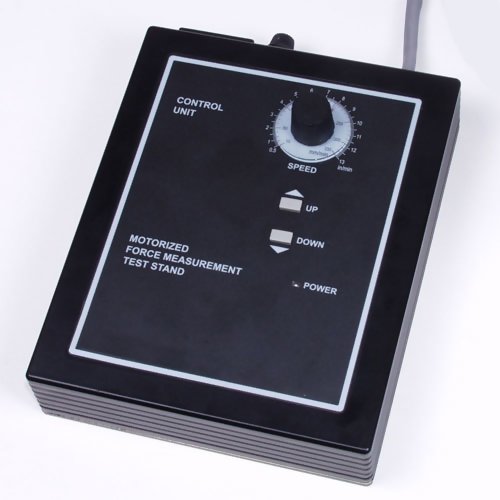

Speed is adjustable in up and down directions and a remote control unit provides added safety during testing. Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing precise and repeatable. Use this test stand with force gauge and grips to create a complete testing solution.

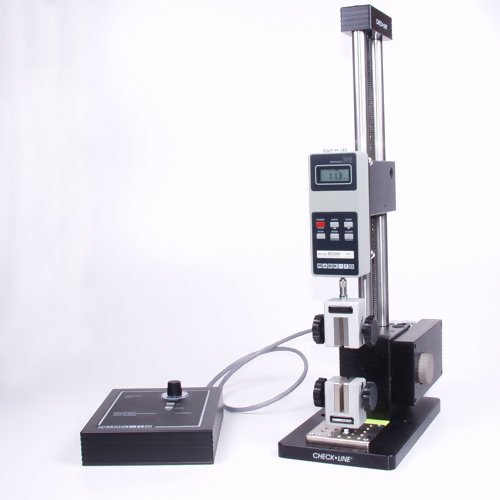

SHOWN WITH OPTIONAL FORCE GAUGE & DISTANCE METER

line
reddot Features
line
bluedot Speed range: 0.5-13 in/min (13-330 mm/min). Custom speed ranges available, Inquire
bluedot No speed variation with load
bluedot Maximum travel: 13" (330 mm)
bluedot Manual travel knob
bluedot Mounting holes for bench mounting
bluedot Removable base plate with 25 #10-32 threaded holes for fixture mounting
line
reddot Related Products
line
BG
Digital Force Gauge		related

bluedot RS-232, Mitutoyo and analog outputs

bluedot Selectable units of measurement

___________________________________________

MG
Economical Digital Force Gauge - Push Pull Gauge		related

bluedot User-selected units of Pounds, Kilograms or Newtons

bluedot 3 Year Warranty

___________________________________________

G1045
90° Peel Tester		related

bluedot Maintains 90° angle between the table and the direction of pull

bluedot Maximum table travel: 8.2 in (210 mm)

line

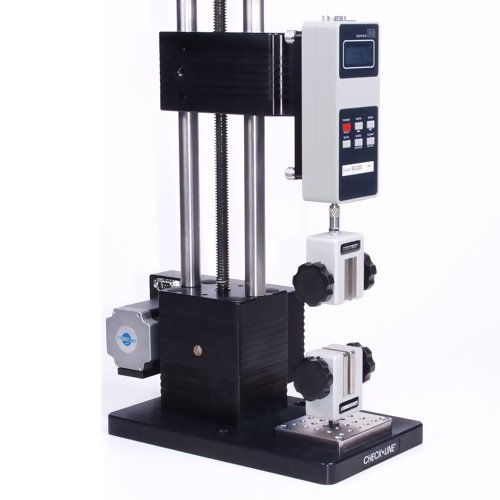

reddot Photo Gallery - click any photo to enlarge
line

line

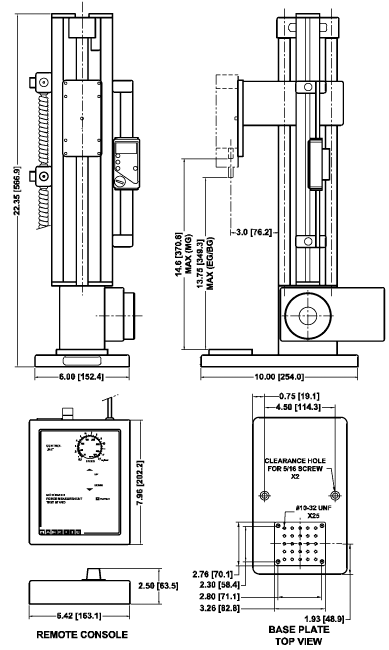

reddot Dimensions
line dimensions
line
reddot Specifications
line
Capacity200 lbs
Stroke13" (330 mm)
Travel Rate0.5-13 in/min (13-330 mm/min)
DimensionsRefer to Dimensions above
Compatible GaugesBG and MG
Warranty3 years
Speed Accuracy±5% of setting, ±0% variation with load
*NoteOptional Distance Meter Max Sampling Rate Output - 3 Samples Per Second
line
reddot Download
line
manualData Sheet Click here to Download
manualInstruction Manual Click here to Download
line
reddot Buy Now
line

Please select the items you would like to purchase then click "Add to Cart"
Products:

ESM Motorized Test Stand - Model





Accessories:
Accessories for Test Stands:







  • Manufactured by: Mark-10
