Honigmann CBM Cable Tension Meter - CableBull

See More Cable Tension Meters

Honigmann CBM Cable Tension Meter - CableBull

See More Cable Tension Meters
Call for price
    warrenty

    Product Description
    13 Capacities up to 4,500 lbs / 20kN
    For material diameters: 0.112" - 0.709" / 3 to 18mm

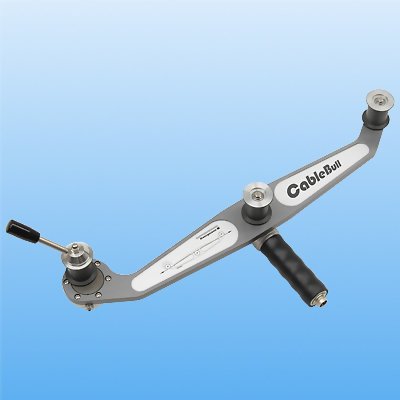

    The new Honigmann CBM Cable Tension Meter - CableBull is a technical innovation for mobile tension measurement. The unique design allows for measurement for any material diameter between 0.112" - 0.0.709" (3 to 18mm) without custom programming or setup.

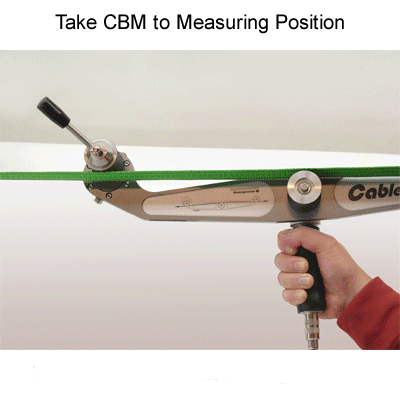

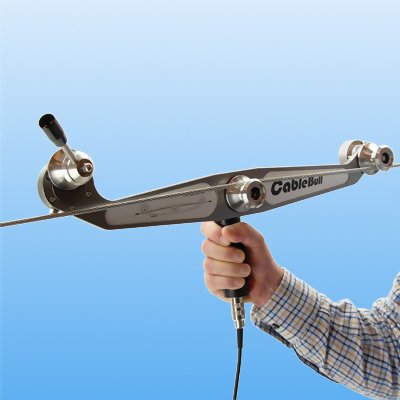

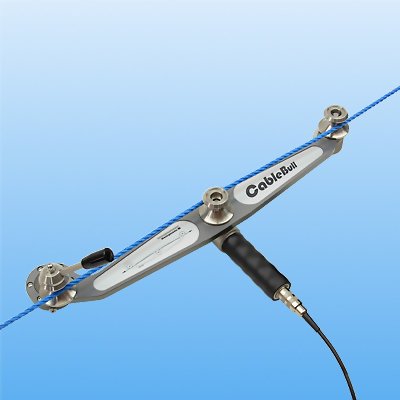

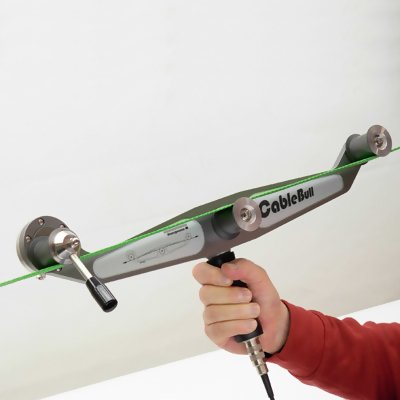

    Designed for measuring wires & cables that are anchored/fixed at both ends (closed system) such as guy wires, support cables, tethers and more. Also commonly used on Kevlar, fiberglass and other hi-strength materials when used in a similar applications. This CBM can also be considered a Rope Tension Meter designed to measure the static tension in wire ropes, cables, belts, ...

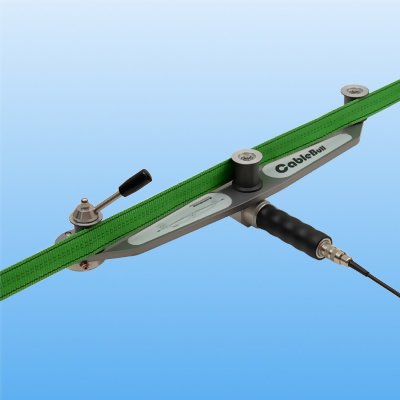

    The 136-3E employs a unique roller configuration and measurement scheme to minimize the deflection of the wire/cable. The total wrap angle of the material over the center sensing roller is 3 degrees eliminating all measurement errors! Applications include elevator load measuring, tension equalization in elevator ropes, rope sets, service lifts inside wind turbine systems, tensioning, protecting cranes and hoists from overload, tension measurement in stay ropes / cables, suspension ropes and railway catenary ropes, vehicle pull test, for safe loading in material handling, load securing control, tension control of lashing straps, equalize loadings on multi cable assemblies, and much more.


    line
    Features
    line

    • No calibration or programming required
    • High precision fabrication from Stainless Steel and Aluminum for trouble-free use even in the toughest in-field applications
    • Sophisticated roller geometry allows the CBM to measure with an error of less than 1%.
    • Choice of "front side" or "rear side" position of Lever-Lock mechanism which opens and closes the measuring system

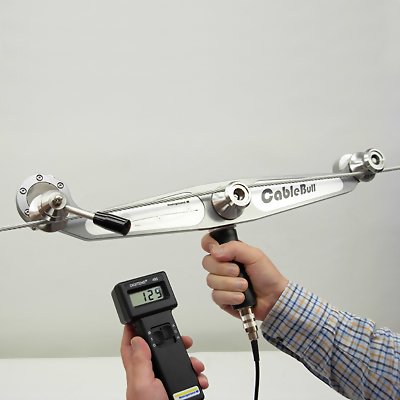

    • Connects to lightweight, battery-powered tension indicator for maximum portability and ease of use


    line
    Specifications
    line

    Accuracy± 1% Full Scale or better
    Outer Roller Spacing (c:c)400, 500 or 600 mm
    Wrap Angle3 Degrees
    Additional Length Effect0.12 mm

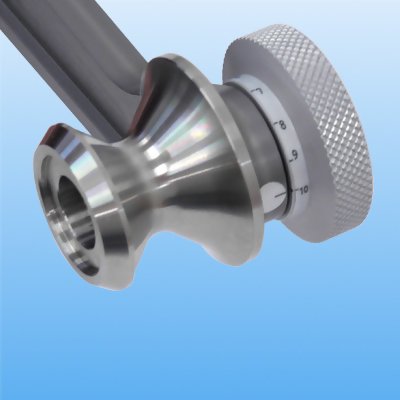

    Guide RollersV-Grooved Aluminum 47/21 mm (OD/Root Diameter)
    Roller Material
    Overload Protection200% +
    Calibration CertificateOptional


    line
    Ranges
    line

    ModelRangeKgLbs
    CBM-500 - 50 N0 - 5 Kg0 - 10 Lbs
    CBM-1000 -100 N0 - 10 Kg0 - 20 Lbs
    CBM-2000 - 200 N0 - 20 Kg0 - 45 Lbs
    CBM-3000 - 300 N0 - 30 Kg0 - 65 Lbs
    CBM-5000 - 500 N0 - 50 Kg0 - 110 Lbs
    CBM-1K0 - 1000 N0 - 100 Kg0 - 225 Lbs
    CBM-2K0 - 2000 N0 - 200 Kg0 - 450 Lbs
    CBM-3K0 - 3000 N0 - 300 Kg0 - 675 Lbs
    CBM-5K0 - 5000 N0 - 500 Kg0 - 1100 Lbs
    CBM-10K0 - 10000 N0 - 1000 Kg0 - 2250 Lbs
    CBM-20K0 - 20000 N0 - 2000 Kg0 - 4500 Lbs
