PosiTector 6000GP Coating Thickness Gauge for General Purposes

Price: $725.00 to $1,525.00
External probe for general purpose paint and coating applications
Range 0 - 60 mils (1500 µm)

PosiTector 6000GP Coating Thickness Gauges for General Purpose Applications


Range: 0 - 60 mils (1500 µm)
Resolution: 0.05 mil / 0.1 mil (1 µm / 2 µm)
Substrates: F, N or FN

The 6000GP Series General Purpose Coating Thickness Gauge is a versatile, rugged tester using magnetic and eddy current principles to measure coating thickness on ferrous, non-ferrous metals accurately and quickly.

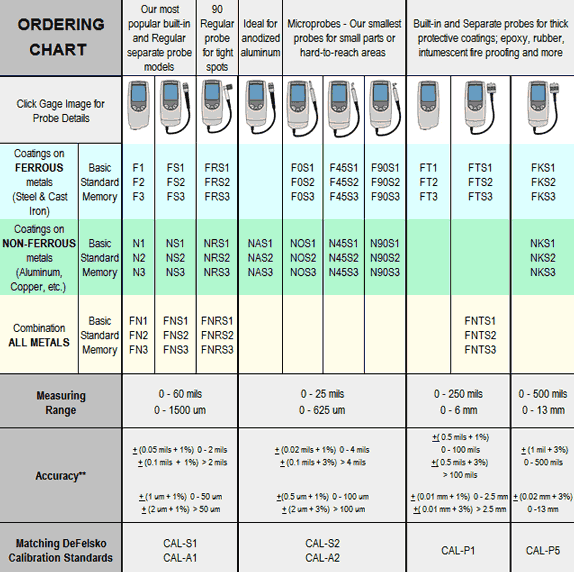

For typical paint and coating applications for a thickness range of 0-60 mils (0-1500 µm) applied to Ferrous substrates models include 6000-FS1, 6000-FS2 and 6000-FS3. Models for Non-Ferrous applications include 6000-NS1, 6000-NS2 and 6000-NS3. Models for use on both Ferrous and Non-Ferrous substrates include 6000-FNS1, 6000-FNS2 and 6000-FNS3.

All models are offered in three possible configurations; BASIC (1), STANDARD (2) and MEMORY (3) permitting users to select the feature set most suitable for their application. Refer to table below summarizing the different features included with each type "1", "2" or "3".


line
reddot Features
line
bluedot HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
bluedot Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
bluedot Multi-lingual Menu; English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
bluedot Thick impact resistant Lexan® display is backlit for easy viewing in dim or dark environments
bluedot Built-in temperature compensation ensures measurement accuracy
bluedot No Calibration required for most applications
bluedot Made in the USA
bluedot User-selected units of mils or µm.
bluedot Average Zero Feature; allows for multiple "zero measurements" ideal for measurements on rough substrates
bluedot All models supplied with protective rubber holster with belt clip and NIST-Traceable Calibration Certificate supplied in Nylon carry case with shoulder strap
bluedot High Resolution mode increases the displayed resolution for use on applications that require greater precision
bluedot Two (2) year warranty
bluedot External probe for general purpose paint and coating applications
bluedot Conforms to ISO 2178 / 2360 / 2808, PrEN ISO 19840, ASTM B499 / D1186 / D1400 / D7091 / E376 / G12, BS3900-C5, SSPC-PA2 and others
bluedot All Regular Separate Probes suitable for underwater use
line
reddot Photo Gallery - click any photo to enlarge
line



Feature Comparison Chart

Feature Comparison Chart
Basic
(1)
Standard (2)
Memory (3)
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits
-

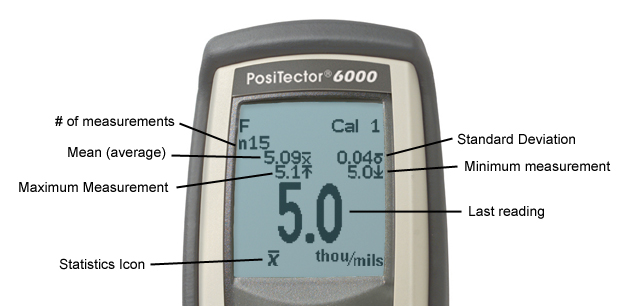

Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
-

Reading Storage Capacity
-
250 in one group
10,000 in up to 1000 groups
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels
-
-
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
-
-

Built in clock to date and time stamp each stored measurement

-
-
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
-
-

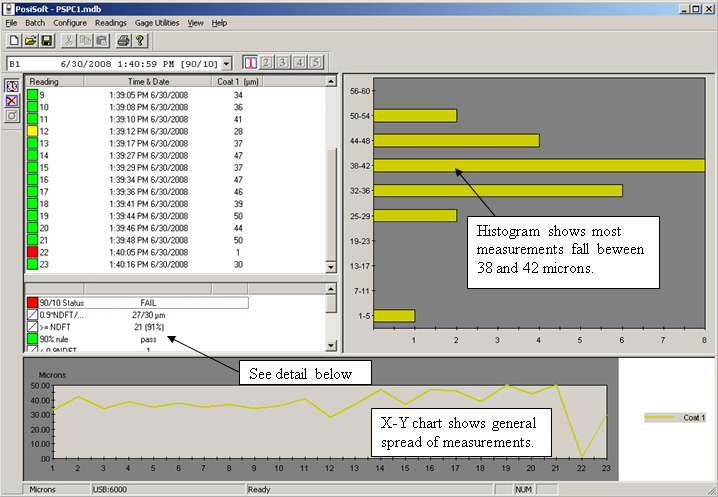

PosiSoft downloading and charting software (includes USB cable)
-
optional

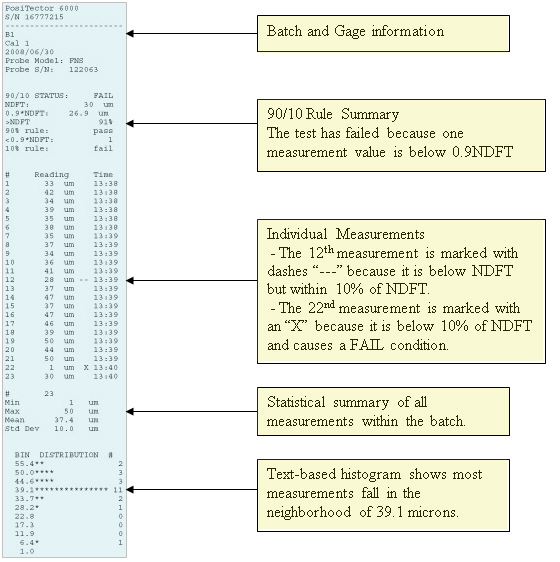

Built-in IR port for printing to an optional portable printer
-
Wireless Technology for immediate data transfer to a PC or Bluetooth® compatible device
-
-


line
reddot Probe Specifications
line
Regular
Probe Models:
FS, NS, FNS
Range:
0 -60 mils
0 - 1500 um
Accuracy*:
+ (0.05 mils + 1%) 0 - 2 mils
+ (0.1 mil + 1%) > 2 mils

+ (1 um + 1%) 0 - 50 um
+ (2 um + 1%) > 50 um

*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

Regular
Probe Models:
FRS, NRS, FNRS
Range:
0 -60 mils
0 - 1500 um
Accuracy*:
+ (0.05 mils + 1%) 0 - 2 mils
+ (0.1 mil + 1%) > 2 mils

+ (1 um + 1%) 0 - 50 um
+ (2 um + 1%) > 50 um

*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.



line
reddot Specifications
line
Measuring principle:
magnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous)
Display
Backlit & Reversible LCD
Data Output
IR & USB - "2" & "3" Models
Bluetooth - "3" Models
Surface Temp.
Maximum 120 °F / 49 °C
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included

line
reddot Related Products
line
6000IP Series
Intergral Probe Models
related

bluedot Integral probe for one hand use on paint and coating applications in the range of 0-60 mils (0-1500 µm)

___________________________________________

6000MP Series
Micro Probe Models
related

bluedot Micro Probe for measuring thin coatings, small parts or hard to reach areas or spots

___________________________________________

6000TC Series
Thick Coating Model
related

bluedot For thick paint and coatings from 60 to 250 mils

___________________________________________

6000TCX Series
Extra Thick Coating Models
related

bluedot For extra thick paint and coatings from 150-500 mils

___________________________________________

IR-PRINTER
related

bluedot Wireless, battery-operated

bluedot Prints both text and graphics

bluedot Receives data via an invisible infrared beam


line
reddot Complete Kit
line

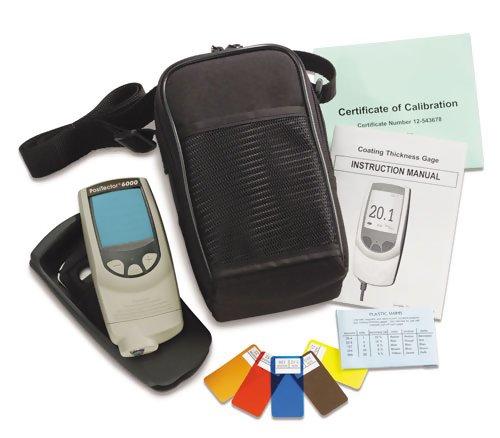

Complete kit comes with precision plastic shims, protective rubber holster with belt clip, 3 AAA batteries, instructions, wrist strap, nylon carrying case with shoulder strap, Certificate of Calibration traceable to NIST and two (2) year warranty
complete kit

line
reddot Download
line
manualPDF Brochure Click Here to Download
manualPDF Instruction Manual Click Here to Download
