ElektroPhysik 85-804-0602 MiniTest 440 Through Paint Ultrasonic Thickness Gauge, Supplied as a complete kit including 5 Mhz probe - TRA/005440

See More Ultrasonic Thickness Gauges

ElektroPhysik 85-804-0602 MiniTest 440 Through Paint Ultrasonic Thickness Gauge, Supplied as a complete kit including 5 Mhz probe - TRA/005440

See More Ultrasonic Thickness Gauges
Price:
$2,480.00
    warrenty

    Product Description

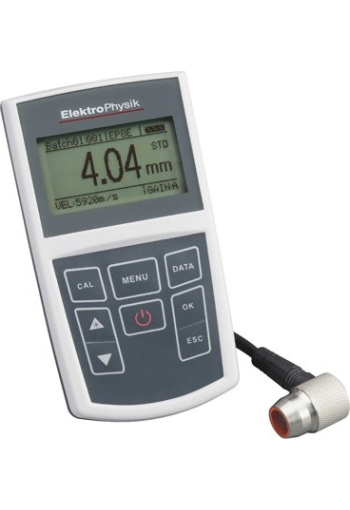

    ElektroPhysik MiniTest 440 Ultrasonic Wall Thickness Gauge
    Thru-Paint Mode (E-E) eliminates the Coating & only measures Wall Thickness
    Built-in Datalogger with 5000 data values (500 values in 10 batches ) with USB Output
    Includes "Scan-Mode" to display MIN and MAX values at 10 readings/second
    Several Transducers are optionally available including one for High Temperature materials (350 °C)

    Thru-Paint Mode (E-E) eliminates the Coating and only measures Wall Thickness

    The ElektroPhysik MiniTest 440 Ultrasonic Wall Thickness Gauge is a sturdy and accurate ultrasonic thickness gauge based on the ultrasonic pulse run-time method.

    6 ultrasonic probes with frequencies ranging between 2 and 10 MHz in different designs offer a broad spectrum of applications and thickness measurements ranging from 0.65 mm to 500 mm. A high temperature ultrasonic probe is also available, designed for measurement of hot materials with temperatures of up to 350 °C.

    The device is equipped for automatic detection of the intelligent ultrasonic probes and re-calibration is not required upon switching probes. The calibration data of the sensor is saved in the probe.

    Uninterrupted scanning of a part for thinning is possible at the minimum mode.


    line
    Features
    line

    • Includes Factory "Works" Calibration Certificate.
    • NIST Traceable Calibration Certificate optionally available at additional cost
    • Thru-Paint Mode (E-E) eliminates the Coating and only measures Wall Thickness
    • Includes "Scan-Mode" to display MIN and MAX values at 10 readings/second
    • Built-in Datalogger with 5000 data values (500 values in 10 batches ) with USB Output
    • Suitable for measurement of various materials including steel, stainless steel, aluminum, glass, plastics (PS/PE)
    • Adjustable units inch/mm
    • Resolution of 0.001" (0.01 mm)
    • Automatic identification of probes
    • Automatic Probe Zero function
    • Uses Pulse-Echo (P-E) or Echo-Echo (E-E, thru-Paint) Principles of Ultrasonics
    • Sensitivity can be set to "Auto" or "Manual"
    • Several Transducers are optionally available including one for High Temperature materials (350 °C)
    • Warranty 1-Year
    • Made in Germany


    line
    Specifications
    line

    Measuring rangeEcho-Echo: 3 - 25 mm (0.12 - 0.98")
    Pulse Echo: With standard transducer U5.0E: 0.8 - 300 mm (0.03 - 11.8")(For ranges of other transducers see table)
    Resolution0.01mm (0 – 99.9 mm), 0.1(> 100 mm)
    Display128 x 64 pixels with backlight
    Velocity Range0.0492 to .3937 in/μs. 1250 to 10,000 meters/secpreset sound velocity of 9 materials
    Measuring modePulse-Echo: Standard: normal operation | Minimum: detection of thinnest point | Difference: deviation of reading to preset value | Alarm
    Echo-Echo: Measurements through the coating
    Scan: High speed scan for high temperature surfaces
    ProbeStandard transducer U5.0E: 8mm (0.31")(For diameter of other transducers see table)
    Operation Temperature-20 to 50°C (-4 to 122°F)
    CableSoftware and data transmission cable
    Battery TypeTwo AA batteries
    Battery Lifemore than 80 hours under continuous operation
    Weightapprox. 6.70 oz (190 g)
    Size5.1 x 2.9 x 0.94" | (130 X 73 X 24 mm)
    Accessories IncludedU5.0E 5 MHz standard transducer, Operating instructions, two 1.5V AA batteries, Plastic carrying case, Coupling liquid (200 ml), cable
    Data storage10 groups with max. 500 values each
    Data interfaceUSB
    Calibrationautomatic
    Housing ProtectionIP40


    line
    Range
    line

    TypeDiameterFrequencyMeasuring Range
    U5.0E8 mm5.0 MHz3 – 25 mm / 0.12 - 0.98 " (E-E) | 0.8 -300 mm / 0.031 - 11.8" (I-E)
    U5.08 mm | 0.31"5.0 MHz0.8 – 350 mm | 0.031 - 13.8"
    U2.012 mm | 0.47"2.0 MHz2.0 – 500 mm | 0.079 - 19.7"
    U7.56 mm | 0.24"7.5 MHz0.65 - 50 mm | 0.026 - 1.97"
    U10.04 mm | 0.16"10.0 MHz0.65 – 20 mm | 0.026 - 0.79"
    U5.0HT13 mm | 0.51"5.0 MHz3.0 – 200 mm | 0.12 - 7.87"

    line

    TypeMaterial TemperatureApplication
    U5.0E-12-+60 °Cmeasurements through the coating (E-E mode), standard transducer w ith I-E mode
    U5.0-12 to 60 °Con flat surfaces or huge curvature radii
    U2.0-12 to 60 °Crough surfaces such as cast iron
    U7.5-12 to 60 °Cthin w all thickness and small curvature radii
    U10.0-12 to 60 °Csmall tube diameters
    U5.0HT-12 to 350 °Cfor temperatures up to 350 °C


    line
    Downloads
    line

    ElektroPhysik MiniTest 440 Ultrasonic Wall Thickness Gauge - Data Sheet
    ElektroPhysik MiniTest 440 Ultrasonic Wall Thickness Gauge - Instruction Manual

    F.A.Q.

    Do Ultrasonic Thickness Gauges require any training for use?

    No. Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

    Are Ultrasonic Thickness Gauges calibrated at the factory?

    Yes. Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

    Do Ultrasonic Thickness Gauges include Certificate of Calibration?

    Yes. Ultrasonic Thickness Gauges include NIST-Traceable Calibration Certificate, CE-Certified

    Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

    Yes! Ultrasonic Thickness Gauges feature several preprogrammed sound velocities for common materials.

    Can Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

    Yes. Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
