Product Description



Dakota PX-7 High Resolution Ultrasonic Thickness gauge


Range: 0.0060 - 1.000 inches - 0.15 - 25.4 mm


Resolution: .001" (0.01 mm)


Datalogging: NO



Measuring Range in Steel
0.0060 - 1.000 inches
0.150 - 25.40 mm

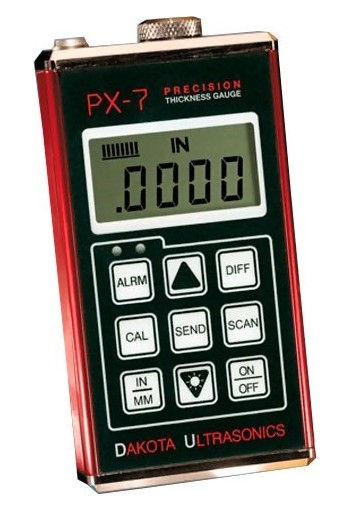

The Dakota Ultrasonics PX-7 Precision Ultrasonic Wall Thickness Gauge is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics

line
Features
line

  • Resolution of 0.0001 inch (0.001 mm)
  • RS-232 Data output of individual values for connection to data collection or quality control systems
  • Large, backlit LCD display retains last reading
  • CE Certified
  • TI-007-GT model available with Graphite Tip for measuring plastics
  • Includes NIST-Traceable Calibration Certificate
  • Selectable units of inch or mm

line

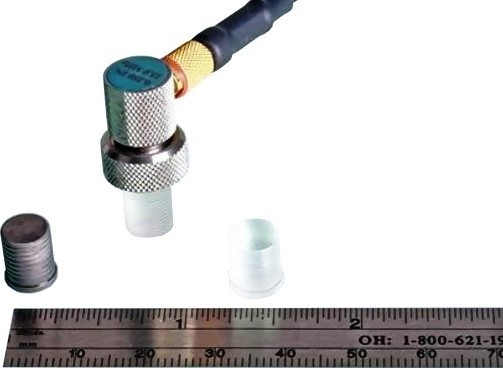

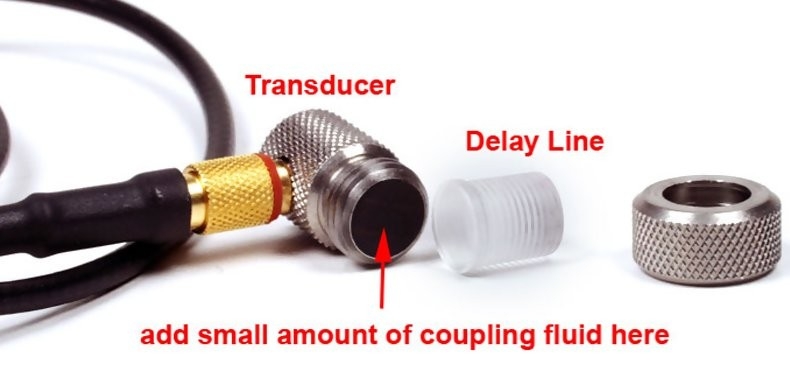

Delay Line Tips for PX-7
line

P/N Description Standard / Optional Image
X-231-0000 1/4" x 3/8"
for all metals
(Short)
Standard
X-241-0000 1/4" x 1/2"
for all metals
(Long)
Standard
X-633-0000 1/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short)
Standard on "-GT" models
X-532-0000 3/16" x 3/8"
Conical Tip
for all metals
(Cone)
Optional
X-132-0000 1/8" x 3/8"
Conical Tip
for all metals
(Cone)
Optional
X-533-0000 3/16" x 3/8"
Graphite Tip
for thin plastics
(Graphite Cone)
Optional


lineSpecificationsline

Range in Steel 0.0060-1.0000" (0.15-25.40 mm)
Resolution .0001" (0.001 mm)
Display 4½ - Digit, 0.5" Backlit LCD
Velocity Range 6,500-33,000 ft./sec (2000-10000 m/sec.)
Transducer Single element with delay tip. 10 to 22 MHz frequency range.
Probe Wearface PEEK (Polyethlethylketone)

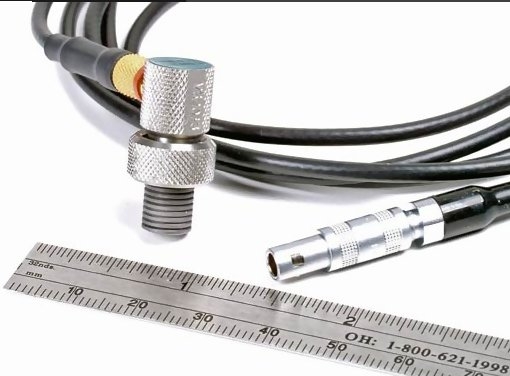

Cable 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m)
Outputs RS-232, single value when send key is pressed
Temp. Limits Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C)
Battery Type Two AA batteries
Battery Life 150 hours
Weight 10 ounces
Size 2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm)
Warranty Gauge: 5 Years
Probes: 90 Days
Range in Steel 0.15-25.4 mm (0.0060-1.0000" )
Resolution .0001" (0.001 mm)
Display 4½ - Digit, 0.5" Backlit LCD
Velocity Range 2000-10.000 m/sec. (6.500-33.000 ft./sec )
Transducer Single element with delay tip. 10 to 22 MHz frequency range.
Probe Wearface PEEK (Polyethlethylketone)
Cable 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 30 m (100 ft )
Outputs RS-232, single value when send key is pressed
Temp. Limits Ambient: -30 to 50° C ( -20 to 120° F)
Material: -20 to 100° C (0 to 200° F)
Battery Type Two AA batteries
Battery Life 150 hours
Weight 285 gr
Size 64 x 114 x 32 mm
(2.5 x 4.5 x 1.25")
Warranty Gauge: 5 Years
Probes: 90 Days


lineComplete Kitline

The PX-7 is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate and Operating Instruction Manual - all in a foam-fitted carrying case

lineRelated Productsline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

CF12
Coupling Fluid

  • Used to create an ultrasonic coupling between the probe and material to be measured
  • 12 oz Bottle

line

TICC-M
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

lineline


F.A.Q.

Do Dakota Ultrasonics Thickness Gauges require any training for use?

No. Dakota Ultrasonics Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

Are Dakota Ultrasonics Thickness Gauges calibrated at the factory?

Yes. Dakota Ultrasonics Thickness Gauges arrive fully calibrated and ready to measure.

Do Dakota Ultrasonics Thickness Gauges include Certificate of Calibration?

Yes. Dakota Ultrasonic Thickness Gauges includes NIST-Traceable Calibration Certificate, CE-Certified

Can I measure the thickness of non-metallic materials like plastic and rubber with Dakota Ultrasonics Thickness Gauges?

Yes. Dakota Ultrasonics Thickness Gauges features several preprogrammed sound velocities for common materials.

Can Dakota Ultrasonics Thickness Gauges measure cast/ductile iron or cast aluminum?

Yes. Dakota Ultrasonics Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
