Dakota Ultrasonics CMXDLP Data-Logging Ultrasonic Coating and Wall Thickness Gauge Z-187-0003

See More Ultrasonic Thickness Gauges

Dakota Ultrasonics CMXDLP Data-Logging Ultrasonic Coating and Wall Thickness Gauge Z-187-0003

See More Ultrasonic Thickness Gauges
Price:
$3,550.00 - $3,950.00
    warrenty

    Product Description
    Dakota Ultrasonics CMXDLP Data-Logging Ultrasonic Coating and Wall Thickness Gauge Z-187-0003

    Range: 0.025 - 9.999 inches - 0.60 - 254.0 mm


    Resolution: .001" (0.01 mm)


    Datalogging: YES



    2 Versions:

    • CMXDL+ - Black & white model
    • CMXDLP-C - Color model

    The new Dakota Ultrasonics CMXDLP Data-Logging Ultrasonic Coating and Wall Thickness Gauge Z-187-0003 is the top-of-the-line model in the CMX Series of Gauges that measures both coating and wall thickness quickly and accurately—from only one side. In addition, when switched to Pulse-Echo mode, the Dakota Ultrasonics CMXDL+ automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting—without removing the coating.

    It features an A-Scan Display Mode allowing the user to see the actual wave form echoes, graphically, providing the insight necessary to tune the settings on the gauge for optimal performance. This is especially important on challenging measurement tasks. The CMXDL+ also features a new E-EV Operating Mode ("Echo-Echo-Verify"), also known as Triple-Echo Mode, which provides addition assurance that the displayed measurement is accurate and fully verified by subsequent echoes.

    Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

    Five user-selected operating modes are included:

    • Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.
    • Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.
    • Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.
    • Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)
    • Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.013 to 2.540 mm). Range will vary slightly depending on the coating.


    line
    Kit Contents
    line

    • Dakota Ultrasonics CMXDLP Data-Logging Ultrasonic Coating and Wall Thickness Gauge Z-187-0003
    • Probe
    • 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • NIST-Traceable Calibration Certificate
    • RS-232 cable and data-transfer software
    • Operating manual
    • Carrying case


    line
    Features
    line

    Special

    • Built-in memory with RS-232 output for transferring data to a Printer or PC
    • Includes Datacomm Data Transfer & Analysis Software and RS-232 Cable, FREE
    • Data Files can be user-set for a "grid type" structure where data is formatted in Rows & Columns or a "sequential" file where all data appears in a single column
    • Each "grid type" File can be set for up to 999 rows by 52 columns
    • Each "sequential" File can be set for up to 512 rows by 1 column
    • Each File can be set for "data only" or as "data plus B-scan Graphic". Memory Capacity is over 225,000 data values or over 16,000 data values with B-scan

    Features

    • Auto probe recognition with Auto Zero or Manual Zero.
    • Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (42–50 db).
    • Wide variety of dual-element probes can be used for nearly any application.
    • 64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
    • Bar graph with user-set start end values providing highest resolution around the target thickness value.
    • Display Hi/Lo Alarm Limits with audible and visual indicators.
    • Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
    • 2 Year Warranty and CE-Certified
    • Includes NIST-Traceable Calibration.
    • Metal housing provides strong protection against harsh environments.
    • T-8071-0868 Probe to 1"-1MHz Single-Element Membrane Probe to measure Blow Holes in Thick PE Pipes and Fittings
    • Measures Coatings up to 0.100"


    lineSpecificationsline

    Range in SteelPulse-Echo Mode: Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters)
    Echo-Echo Mode: Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the thick
    Range in Coating Only Mode0.0005" - 0.1000" / Resolution: 0.0001"
    (0.013 - 2.540 mm / Resolution: 0.001 mm)
    Max Coating0.100"
    Resolution.001 inches (0.01mm)
    Velocity Range.0492 to .3936 in./ms
    1250 to 9999 meters/sec
    UnitsInch or mm
    Measurement Modes- Pulse-Echo (corrosion mode)
    - Pulse-Echo Coating (Corrosion w/o coating)
    - Echo-Echo (thru-paint)
    - Temp Comp (auto adjust for material temp)
    - Coating Only (Ultrasonic Coating Gauge)
    Transducer TypesDual Element (1 to 10 MHz).
    OutputRS-232 for upload/download of setups
    Memory capacityTI-CMXDLP: over 200,000 measurements
    Power SourceThree 1.5V alkaline or 1.2V NiCad AA cells
    Battery LifeTypically operates for 150 hours on alkaline and 100 hours on NiCad
    Auto Power offAfter 5 minutes of non-use
    Display1/8 in. VGA grayscale display 62 x 45.7mm
    KeyboardMembrane switch with twelve tactile keys
    CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
    Temp. LimitsAmbient: -20 to 120° F (-30 to 50° C)
    Material: -0 to 200° F (-20 to 100° C
    Special high temperature probes are optionally available.
    Weight, net383 grams
    Dimensions63.5 W x 165 H x 31.5 D mm
    Warranty2 year limited
    CertificationCE Approved, Factory calibration traceable to national standards


    line
    High Speed Scan Mode & B-Scan Mode
    line

    Hi-Speed Scan Mode
    • Scan Mode measures 64 times per second, displaying the max and min reading measured during the scan interval. Sample rate is 200/sec when coating measurement is off

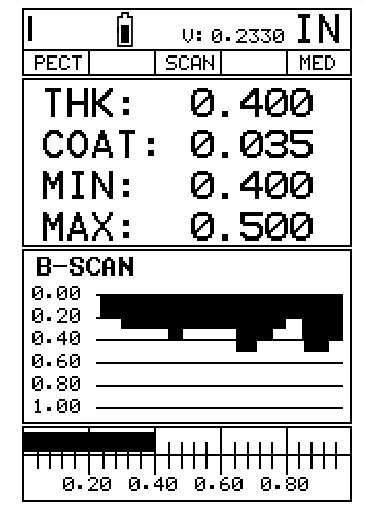

    B-Scan Mode
    • The B-Scan displays a time based cross section view of test material of the contour of the blind, or underside of a pipe or tank application. the B-Scan view draws at a rate of seven seconds per screen from right to left


    lineMeasuring Limitsline

    Minimum Radius for Convex Surfaces0.350" (8.89 mm)
    Minimum Radius for Concave Surfaces3" (76.2 mm)
    Minimum Headroom1" (25.0 mm)
    Minimum Sample Diameter0.150" (3.8 mm)
    Minimum Substrate Thickness - Fna
    Minimum Substrate Thickness - NFena


    lineTI-CMXDLP-C Color Modelline

    Oversized graphic color LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).

    With ultra hi-speed processing (display update refresh of 120 times/second), TI-CMXDLP-C is also extremely effective tool when used in the Flaw “Prove-up” Mode, simulating the function of a Flaw Detector at a fraction of the cost to identify and locate cracks, dis-bonds, weld defects, etc. Also includes a “dampening feature” which helps filter the raw waveform data to clean-up the signal, especially with very low and very high frequency probes.


    lineQuick Change Shear Wave Transducers(QC) line

    DescriptionThreaded shear wave transducers for quickly interchanging between wedges. Ideal for limited access and curved surfaces.
    UsedGeneral weld inspection
    DampingHigh gain (G), Resolution(R) *Specify damping after (QC), No damping on 3.5 MHz
    ConnectorsMicrodot

    Element Size2.25 MHz3.5 MHz5.0 MHz10.0 MHz
    .250" dia.QC 2525-QC 2550QC 2510
    .375" dia.QC 3725-QC 3750QC 3710
    .500" dia.QC 5025PQC 5035QC 5050QC 5010


    lineQuick Change Wedgesline

    Quick Change Wedges - Custom angles available on requ

    Element Size.250" DIA..375" DIA..500" DIA.
    45°QW 2545QW 3745QW 5045
    60°QW 2560QW 3760QW 5060
    70°QW 2570QW 3770QW 5070
