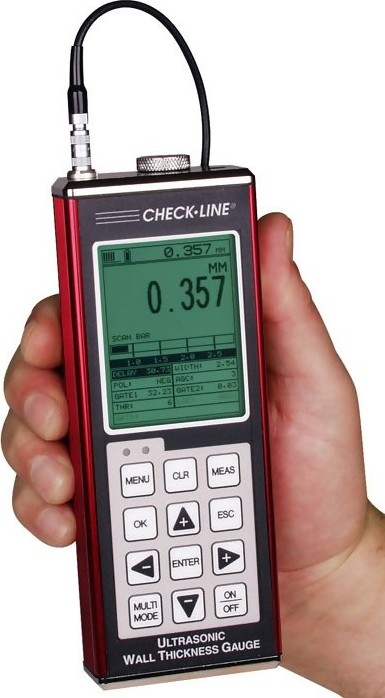

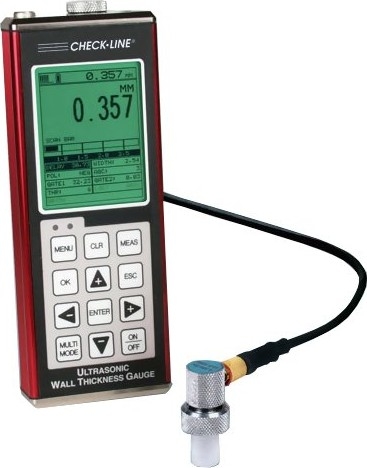

    Checkline TI-PVX Precision Ultrasonic A-scan Thickness Gauge
    High Precision gauge ideal for applications with minimum access orcontact areas. Enhanced graphic scope Displays A Scan & B Scan fora cross section view

    Resolution: 0.0001" (0.001 mm)


    Datalogging: YES

    The Checkline TI-PVX Precision Ultrasonic A-scan Thickness gauge provides the flexibility necessary for both high resolution and penetration requirements.

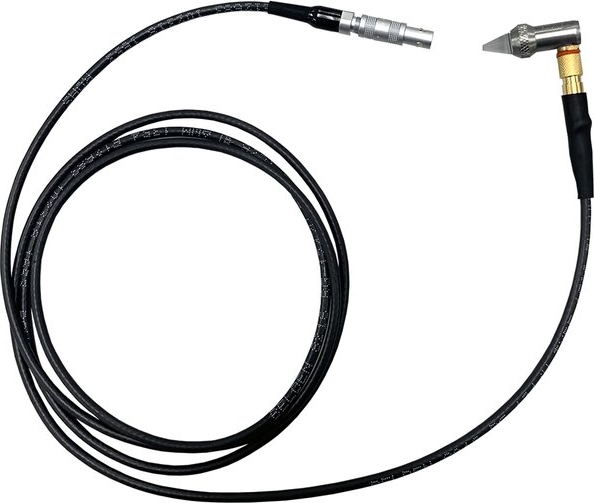

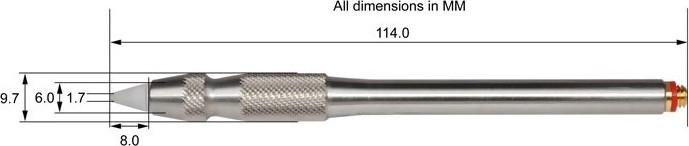

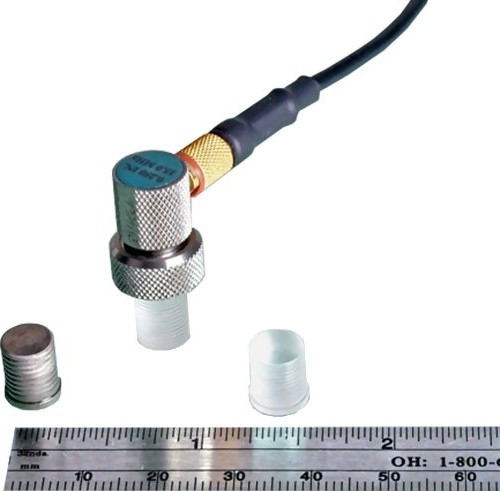

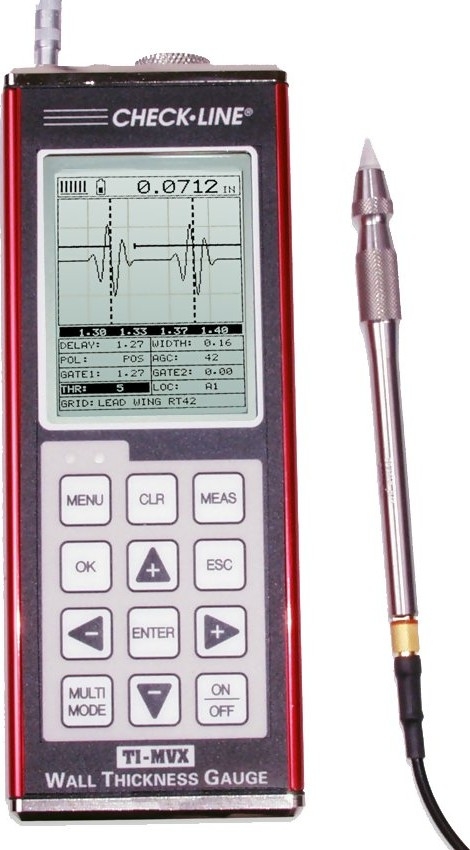

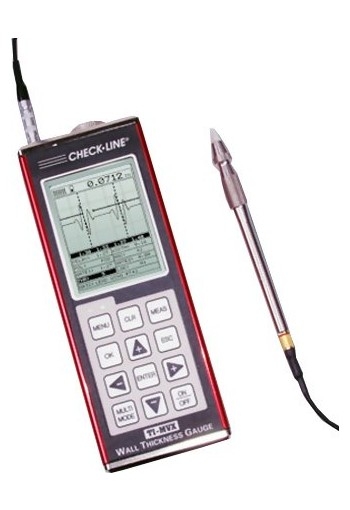

    The Checkline TI-PVX Precision Ultrasonic A-scan Thickness gauge's ability to use a variety of single element transducers for specific applications: Standard Delay Line (acrylic and graphite tips for metals and thin plastics), Pencil Delay Line (tough access area on thin materials), and Contact transducers (variety of applications) makes it the perfect flexibel tool for very precise and delicate measurements. The adjustable resolution settings add to the PVX’s flexibilty.

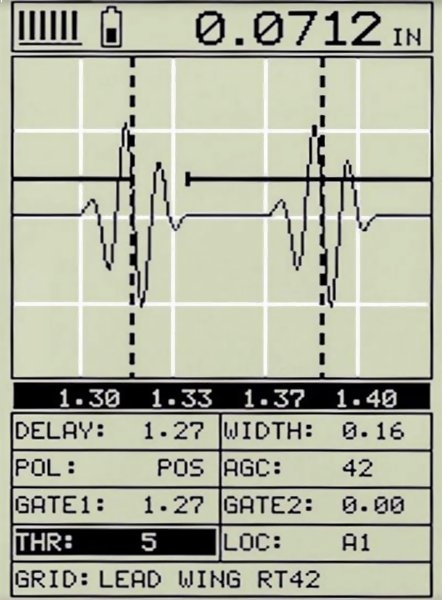

    The selectable viewing options provide the user with additional flexibility during operation: (RF waveform, +/- Rectified waveform, and Large Digits with Scan Bar.

    The time based B-Scan feature displays a cross section of the test material. Displays the profile of the opposite surface of the material.

    The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material and display the minimum measurement scanned.


    line
    Kit Contents
    line

    • Checkline TI-PVX Precision Ultrasonic A-Scan Thickness Gauge
    • 3/16" 10Mhz transducer
    • 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • NIST Calibration Certificate
    • Data Transfer Software
    • Serial Output
    • Carrying case
    • Instruction Manual


    line
    Features
    line

    • Hardware AGC gain control for multiple echo and thru-paint measurement.
    • Multiple calibration options: One Point, Two Point, or selection from a Material List.
    • 16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
    • The TI-PVX Precision Ultrasonic A-scan Thickness gauge is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs.
    • The high speed scan feature
    • Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view.
    • CE Certified
    • 2 year limited warranty
    • The TI-PVX Precision Ultrasonic A-scan Thickness gauge comes complete with our Windows® PC software for transferring data to and from a PC.
    • User-selected resolution of 0.001" or 0.0001" inch units and 0.01 or 0.001 in mm units
    • Visual and audible alarm with hi and lo limit settings for specific application tolerances.
    • 1/4" 15MHz Delay Line Probe p/n T-481-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe
    • Includes NIST traceable calibration certificate


    lineSpecificationsline

    Rangein SteelInterface-EchoMode: Steel 0.05 1.0 in (1.27mm - 25.4mm). Plastics from.005in. (127mm).
    Echo-Echo Mode: Steel .006in -.500in(.15mm - 12.7mm).
    Pulse-Echo Contact Mode: Steel.040in - 10.0in (1mm - 254mm). Plastics from .010in (.254mm).
    Echo-Echo Contact mode: Steelthru-paint .100in - 3.0in (2.54mm - 76.2mm).
    Resolution(selectable) +/- .001in (0.01 mm),or +/- .0001in - (.001mm).
    VelocityRange.0492 to .3936in./ms
    1250 to 9999 meters/sec
    UnitsEnglish & Metric
    Memory16 megabitnon-volatile ram.
    Data Logger12,000 readings and waveforms (alphanumeric storage).
    Display1/8 in. VGAgrayscale display
    Setups16 factory and 48 user-definedsetups.
    DisplayViewsA-Scan Rectified +/- (half wave view) RF (full waveform view)
    B-Scan Time based cross sectionview. Display speed of 15 secs per screen.
    Large Digits Standard thicknessview. Digit Height: 0.400 in (10mm).
    Scan Bar 6 readings per second.Viewable in B-Scan and Large Digit views.
    Repeatability Bar Graph Bar graphindicates stability of reading.
    Power SourceThree 1.5V alkaline or 1.2V NiCad AAcells
    BatteryLifeTypically operatesfor 150 hours on alkaline and 100 hours on NiCad
    Power offAuto power off if idle 5 min.
    OperatingTemperature-14° to140°F (-10° to 60°C).
    Size2.5 W x 6.5 H x 1.24 D inches (63.5W x 165 H x 31.5 D mm).
    Weight0.4 kg (0.9 lbs )
    WarrantyGauge: 2 Years
    Probe: 90 Days


    lineOptional Accessoriesline

    TICC-MVX
    Protective Holder for Ultrasonic Gauges

    • Constructed from heavy duty Cordura Nylon
    • Includes wrist & shoulder straps


    lineDownloadsline

    TI-PVX Precision Ultrasonic A-scan Thickness Gauge - Certificate
    TI-PVX Precision Ultrasonic A-scan Thickness Gauge - Data Sheet
    TI-PVX Precision Ultrasonic A-scan Thickness Gauge - Software
