Checkline TI-44NA Economical Wall Thickness gauge for measuring on a variety of materials
Range: 0.040 - 8.00 inches - 1.00 - 200.00 mm
Resolution: .001" (0.01 mm)
Datalogging: NO
Detachable Probe: NO
Measuring Range in Steel
0.040 - 8.00 inches
1.00 - 200.0 mm

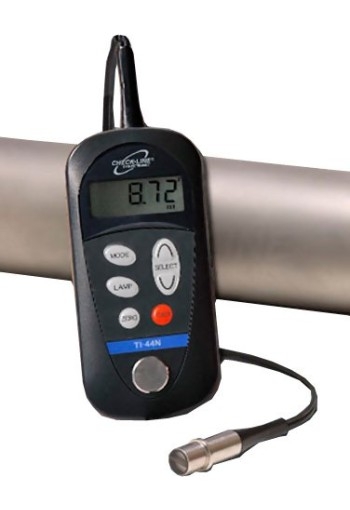

The Checkline TI-44NA Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

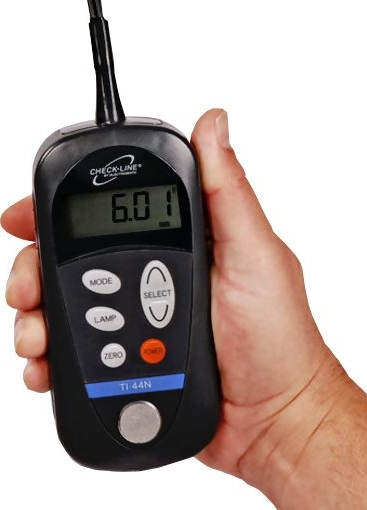

The attractive, ergonomic housing design is extremely compact, lightweight and rugged. It fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas. This product is similar to our TI-45NA, however the probe is hard-wired to the gauge and is NOT removable as in the TI-45N.

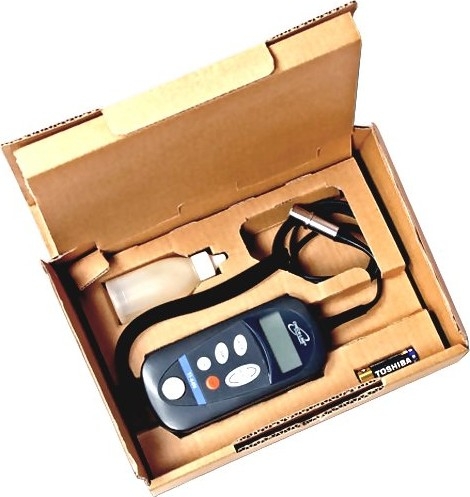

Kit Contents
- Checkline TI-44NA Ultrasonic Wall Thickness Gauge
- Wrist strap
- Probe and cable assembly
- 2 oz. bottle of coupling fluid
- Battery
- Instruction manual
- Cardboard pack
Features
- Resolution of 0.001" (0.01mm) with Switch-selectable units of inches or mm
- Quick display update with last reading retained on the display
- Extremely small & lightweight operating from a single AA battery
- Display symbols alert user to poor coupling and low battery conditions

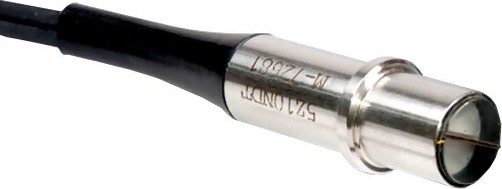

- Fixed-mounted probe is connected to gauge with one meter flexible cable (39")
- NIST-Traceable Calibration Certificate & Test Report is optionally available
- Built-in calibration test plate on front of gauge housing
Measuring Limits
 | Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) |
| Minimum Radius for Concave Surfaces | 3" (76.2 mm) |
| Minimum Headroom | 3" (76.2 mm) |
| Minimum Sample Diameter | 0.5" (12.7 mm) |
| Minimum Substrate Thickness - F | na |
| Minimum Substrate Thickness - NFe | na |
Specifications
| Range in Steel | 0.040 - 8.000" (1.0 - 200.0 mm) |
| Resolution | .001" (0.01 mm) |
| Display | 4½ - digit LCD display, 0.39" (10mm) high with push button illumination |
| Velocity Range | 3,250 - 39,000 ft/sec
(1,000 - 12,000 m/sec)
continuously adjustable |
| Probe | 5 MHz, .39" (10 mm) diameter |
| Cable | 39" (1m) 2-wire, long cable with fixed-mounted to gauge body |
| Minimum Pipe Size | 1" nominal (30mm) steel pipe |
| Temp. Limits | Ambient: 25 to 125° F (-5 to 50° C)
Material: -15 to 140° F (-10 to 60° C) |
| Calibration Plate | 0.250" (6.35mm) steel plate, built into the front of the housing |
| Battery Type | 1x AA battery |
| Battery Life | 200 hours |
| Weight | Gauge: 7 ounces (200 g) |
| Size | 5.2" x 2.7" x 1.1"
(131 x 68 x 29 mm) |
| Warranty | Gauge: 1 years
Probe: 90 days |
| Accessories Included | 2 Ounce bottle of couplant |
Related Products
Downloads
F.A.Q.
Do Checkline Ultrasonic Thickness Gauges require any training for use?
No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.
Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?
Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.
Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?
Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified
Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?
Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.
Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?
Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
