Measuring Range in Steel
0.040 - 6.00 inches
1.00 - 150.0 mm The TI-25LT Ultrasonic Thickness Gauge accurately measures wall thickness and the extent of corrosion - from only one side! Standard configuration: In its standard configuration, the TI-25LT Wall Thickness Gauge is factory set to MEASURE STEEL ONLY Optional configuration: As a “no cost” option, the TI-25LT Wall Thickness Gauge can be factory set to measure on stainless steel. Easy upgrade to full TI-25M Ultrasonic Thickness Gauge functionality (refer to separate data sheet). TI-25M Ultrasonic Thickness Gauges measure on all metals, ceramics, glass and most rigid plastics. It provides Single Reading and Scan modes, where the probe is dragged over a large measuring area. The minimum reading recorded during the "scan" is displayed. Upgrade to TI-25M Ultrasonic Thickness Gauges require factory installation of enhanced circuit board, new firmware andkeypad.

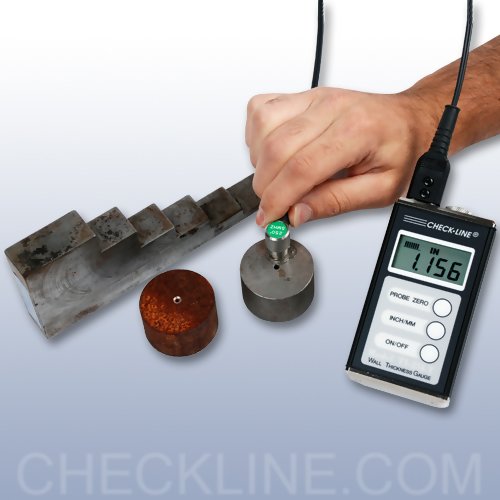

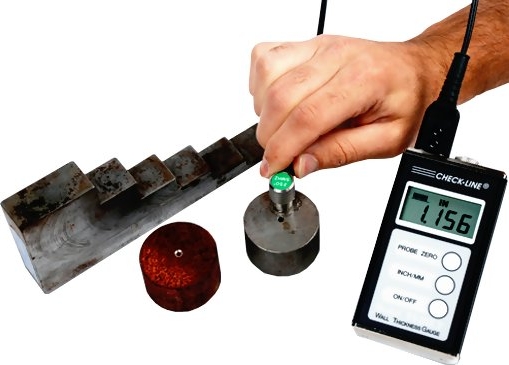

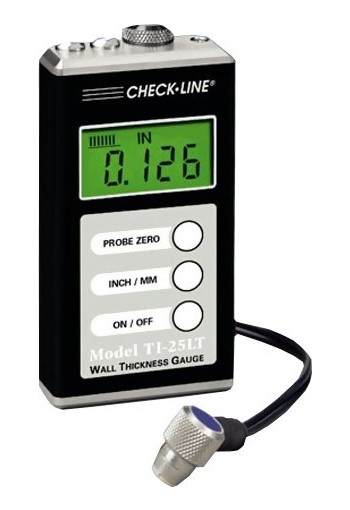

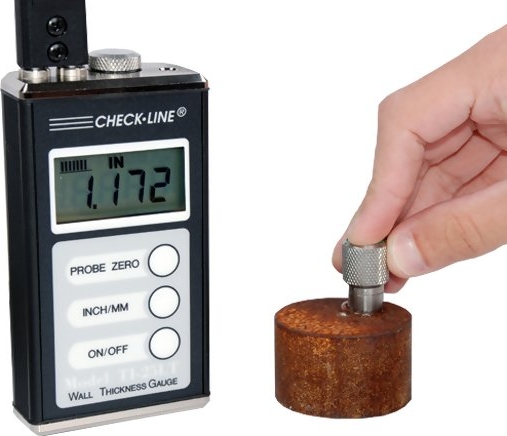

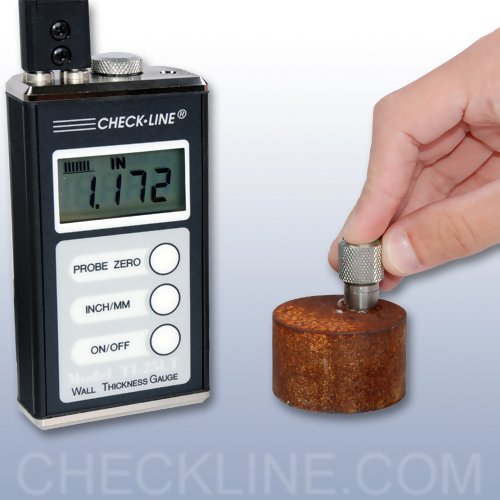

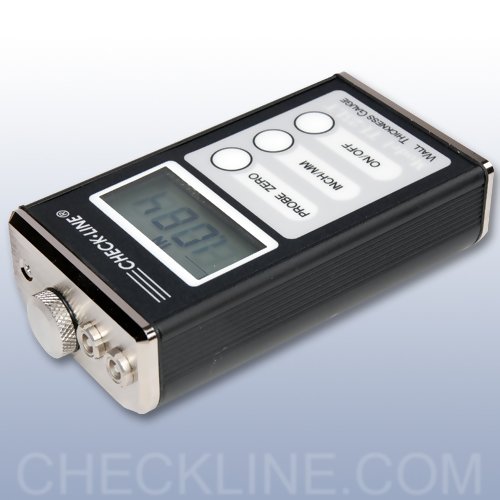

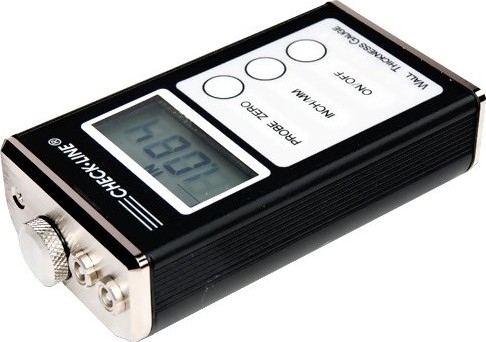

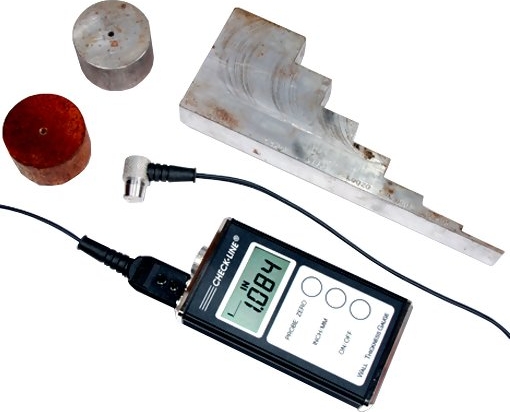

Photo Gallery
Features
- Resolution of 0.004 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- The gauge is impact-resistant and environmentally sealed to provide trouble-free operation under the toughest field conditions
- Switch-selected units for inches or mm
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- The TI-25LT Ultrasonic Thickness Gauge probe is waterproof and can be submerged in water
- CE Certified
- Includes NIST Calibration Certificate
Typical Applications
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | | Minimum Radius for Concave Surfaces | 3" (76.2 mm) | | Minimum Headroom | 1" (25.0 mm) | | Minimum Sample Diameter | 0.150" (3.8 mm) | | Minimum Substrate Thickness - F | na | | Minimum Substrate Thickness - NFe | na |
Specifications
| Range in Steel | 0.040-6.00" (1.00-150.0 mm) | | Resolution | .004" (0.01mm) | | Display | 4½ - Digit, 0.5" Backlit LCD | | Velocity Range | .0787-.3937 in/µs
(2000-10,000 m/sec) | | Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) | | Probe Wearface | PEEK (Polyethylethylkytone) | | Cable | 4ft. (1.2m) waterproof cable with non-polarized, quick-disconnect connectors. Op | | Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C) Special high temperature probes are optionally available | | Battery Type | Two AA batteries | | Battery Life | 200 hours | | Weight | 710 ounces (280g) | | Dimensions | 2.5 x 4..5 x 1.25"
(64 x 114 x 32mm) | | Accessories | Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. | | Warranty | Gauge: 5 Years
Probes: 90 Days |
Complete Kit
Complete Kit includes: Gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate and Operating Instruction Manual - all in a foam-fitted carryingcase
Optional Accessories
CF12
Coupling Fluid
- Used to create an ultrasonic coupling between the probe and material to be measured
- 12 oz Bottle
| |
V-Block
Transducer Holder
- The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas
| |
