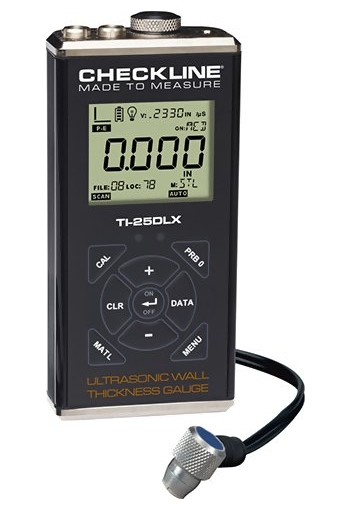

Checkline TI-25DLX Data Logging Wall Thickness Gauge with USB Output

See More Ultrasonic Thickness Gauges

Checkline TI-25DLX Data Logging Wall Thickness Gauge with USB Output

See More Ultrasonic Thickness Gauges
Price:
$1,505.00 - $1,800.00
    warrenty

    Product Description
    Checkline TI-25DLX Data-Logging Ultrasonic Wall Thickness Gauge with 8 Presets, Adjustable Velocity and the ability to Calibrate to a Sample of Known Thickness
    Includes NIST-Traceable Calibration Certificate, CE-Certified
    5-Year Warranty, Made in USA
    Datalogging: Built-in datalogging for 10,000 data values, USB Output

    Total Measuring Range (depends on material and transducer/probe type)
    0.025 - 36.000 inches
    0.63 - 914.4 mm

    Measuring Range on Steel (with standard T-102-3300 probe)
    0.025 - 6.00 inches
    0.60 - 150.0 mm

    The Checkline TI-25DLX Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! It can measure thickness up to 36 inches (915 mm), depending upon the material and transducer.

    Incorporates built-in datalogging for 10,000 values with 250 readings per batch, up to 40 separate batches with USB Output. Data can be transferred into any program in ".csv" format or viewed in Datacomm Software (free download)

    The Checkline TI-25DLX permits the operator to select from 8 preset materials as well as program 2 custom material velocities, plus allows free adjustment of the velocity as desired and allows the end-user to calibrate to a sample of known thickness where the velocity is automatically calculated. Additionally, to optimize linearity over a wide range, the user can perform a 2 point calibration to two samples of known thickness. The optimal velocity is automatically calculated to provide the highest accuracy and linearity between the low and high calibration points.

    The TI-25DLX can be used in a Single Thickness Reading mode or in a Scan mode , where the probe is dragged over a large measuring area. The minimum thickness reading recorded during the "scan" will be displayed. The calibration and other setup parameters can be locked to prevent any accidental adjustments.

    The TI-25DLX probe is waterproof and can be submerged in water. The gauge is impact-resistant and environmentally sealed (IP65) to provide trouble-free operation under the toughest field conditions


    line
    Kit Contents
    line

    • Checkline TI-25DLX Data Logging Wall Thickness Gauge
    • Probe
    • 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • USB output cable
    • NIST-Traceable Calibration Certificate
    • Carrying case
    • Instruction Manual


    line
    Features
    line

    • Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output.
    • Data can be transferred into any program in ".csv" format or viewed in Datacomm Software (free download)
    • User can select from 8 preset materials as well as program 2 custom material velocities
    • Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
    • 2-Point Calibration to optimize linearity over a wide measurement range, automatically calculates the optimal acoustic velocity
    • Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
    • Hi/Low Alarm Limits with Visual Indicator of Out of Tolerance Readings
    • Adjustable GAIN in 5 steps to fine tune the gauge for use on challenging materials or applications
    • Special-purpose probes are offered for a variety of applications (1 to 10 MHz)
    • The extruded aluminum housing is impact-resistant and environmentally sealed (IP 65)
      to provide trouble-free operation under the toughest field conditions
    • For underwater surveying, an optional 50 ft (15 meter) underwater probe/cable is available
    • High visibility LCD Display is readable in all lighting conditions and temps as low as 22 °F (-30 °C)
    • LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero, units and stored data
    • Switch-selected units for inches or mm with Resolution of 0.001 inch (0.01 mm)
    • Selectable Backlight ON/OFF/AUTO
    • User-selected Manual or Auto Zero of Transducer
    • Includes NIST Traceable Calibration Certificate
    • 5 Year Warranty, CE-Certified and Made in USA


    line
    Specifications
    line

    Total Measuring Range
    (Steel)
    0.025 - 36.000 inches
    0.63 - 914.4 mm
    (depends on material and transducer/probe type)
    Measuring Range
    (Steel)
    0.025-6.000 inches
    0.60-150.0 mm
    (with standard transducer T-102-3300)
    Resolution 0.001 inch (0.01 mm)
    Velocity Range 0.0120 to .7300 in/μs. 305 to 18,542 meters/sec
    LCD Display Multi-function 7 segment 4.5 digit liquid crystal display with 0.500" digit height. Two 0.125 in14 segment fields for labels and values, and one 7 segment field for labels and values. Additional icons to indicate features and modes
    Display Backlight Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
    Display Update Rate 10 Hz (10 updates/sec)
    Probe (Standard) 1/4", 5 MHz Dual Element Transducer, actual wearface is 5/8" (17mm), p/n T-102-3300
    Probes (optional) 1 to 10 MHz, 3/16" up to 1 inch (custom probes available)
    Probe Wearface PEEK (Polyethylethylkytone)
    Cable 1.2m (4ft.) waterproof cable with non-polarized, quick-disconnect connectors
    Temp. Limits Ambient: -30 to 75° C (-22 to 167° F)
    Material: -20 to 100° C (0 to 200° F)
    High temperature probes available
    Battery Type 2x AA batteries (rechargeable batteries can be used)
    Battery Life 45 hours continuous use
    Weight 308 grams (11 ounces)
    Dimensions 63.5 x 131.3 x 31.5 mm (2.5" x 5.17" x 1.25")
    Accessories Probe/cable assembly, 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
    Housing Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
    Housing Rating IP65
    Certifications NIST Traceable and MIL-STD-45662A
    Keypad Sealed membrane that is resistant to both water and petroleum products
    Seven or eight tactile-feedback keys
    Pulse Repetition Frequency (PRF) 200 Hz (200 pulses/sec)
    To Lock Settings With gauge powered off, press and hold the "+" key while powering on the gauge
    The LOCK icon will be illuminated on the Display
    To unLock Settings With gauge powered off, press and hold the "-" key while powering on the gauge
    The LOCK icon will turn off
    GAIN Adjustment Adjustable GAIN 5-position (VLOW, LOW, MED, HIGH, VHI), in 3dB steps, 40-52dB
    Measuring Modes Pulse-Echo (P-E), Differential
    Output Type USB-C (plug-n-play, view files on PC which can be dragged and dropped)
    Built-In Memory 10,000 data values stored in up to 40 batches with 250 values/batch
    Memory Type Sequential data file (single column)
    Warranty Gauge: 5 Years
    Probes: 90 Days


    line
    Measuring Limits
    line

    Minimum Radius for Convex Surfaces0.350" (8.89 mm)
    Minimum Radius for Concave Surfaces3" (76.2 mm)
    Minimum Headroom1" (25.0 mm)
    Minimum Sample Diameter0.150" (3.8 mm)
    Minimum Substrate Thickness - Fna
    Minimum Substrate Thickness - NFe na
