Checkline TI-007 Precision Ultrasonic Thickness Gauge

See More Ultrasonic Thickness Gauges

Checkline TI-007 Precision Ultrasonic Thickness Gauge

See More Ultrasonic Thickness Gauges
This product has been discontinued

Product Description

High Resolution gauge for measuring thin materials with 0.0001" resolution

Range: 0.0060 - 1.000 inches - 0.15 - 25.4 mm


Resolution: 0.001" (0.01 mm)

Datalogging: NO

Measuring Range in Steel
0.0060 - 1.000 inches
0.150 - 25.40 mm

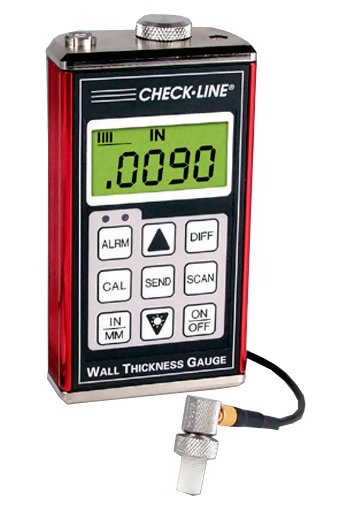

The TI-007 Precision Ultrasonic Thickness Gauge is a precision ultrasonic wall thickness gauge specifically suited to make extremely precise and high-resolution measurements on thin-walled metal and plastics.  The TI-007 Precision Ultrasonic Wall Thickness Gauge is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The gauges have a MEASURING RANGE from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in ECHO-TO-ECHO MODE as well as automatically switch to interface echo mode when measuring thicker materials and plastics.

line
Photo Gallery
line

ABQ ABQ ABQ

line
Features
line

  • Resolution of 0.0001 inch (0.001 mm)
  • Large, backlit LCD display retains last reading
  • TI-007-GT model available with Graphite Tip for measuring plastics
  • Selectable units of inch or mm
  • RS-232 Data output of individual values for connection to data collection or quality control systems
  • CE Certified
  • Includes NIST Calibration Certificate

lineTypical Applicationsline

typical

lineMeasuring Limitsline

measuring limits

lineSpecificationsline

Range in Steel 0.0060-1.0000" (0.15-25.40 mm)
Resolution .0001" (0.001 mm)
Display 4½ - Digit, 0.5" Backlit LCD
Velocity Range 6,500-33,000 ft./sec (1250-10000 m/sec.)
Transducer Single element with delay tip. 10 to 22 MHz frequency range.
Probe Wearface PEEK (Polyethlethylketone)
Cable 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect LEMO connectors. Optional lengths up to 100 ft. (30 m)
Outputs RS-232, single value when send key is pressed
Temp. Limits Ambient: -20 to 120° F (-30 to 50° C)
Material: 0 to 200° F (-20 to 100° C)
Battery Type Two AA batteries
Battery Life 150 hours
Weight 10 ounces
Size 2.5 x 4.5 x 1.25" (64 x 114 x 32 mm)
Warranty Gauge: 5 Years
Probes: 90 Days


lineDelay Line Tips for TI-007line

P/N Description Standard / Optional Image
X-231-0000 1/4" x 3/8"
for all metals
(Short)
Standard
X-241-0000 1/4" x 1/2"
for all metals
(Long)
Standard
X-633-0000 1/4" x 3/8"
Graphite Tip
for thin plastics
(Graphite Short)
Standard on "-GT" models
X-532-0000 3/16" x 3/8"
Conical Tip
for all metals
(Cone)
Optional
X-533-0000 3/16" x 3/8"
Graphite Tip
for thin plastics
(Graphite Cone)
Optional


lineComplete Kitline

The TI-007 Precision Ultrasonic Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate and Operating Instruction Manual - all in a foam-fitted carrying case.

lineOptional Accessoriesline

NIST-Traceable Steel Test Block
3 Sizes Available

  • Precision Machined and Finished
  • Includes NIST Report and Test Data

line

Uncertified Steel Test Block
For Ultrasonic Gauges
  • For convenient confirmation of thickness gauge calibration

line

TICC-M
Protective Holder for Ultrasonic Gauges

  • Constructed from heavy duty Cordura Nylon
  • Built-in belt loop

line

CF12
Coupling Fluid

  • Used to create an ultrasonic coupling between the probe and material to be measured
  • 12 oz Bottle

lineDownloadsline

Checkline TI-007 Precision Ultrasonic Thickness Gauge - Certificate
Checkline TI-007 Precision Ultrasonic Thickness Gauge - Instruction Manual
Checkline TI-007 Precision Ultrasonic Thickness Gauge - Data Sheet

lineline


F.A.Q.

Do Checkline Ultrasonic Thickness Gauges require any training for use?

No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?

Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?

Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified

Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.

Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
