F.A.Q.


Can I use a Single-Element Precision Transducer on a Dual-Element Corrosion Thickness Gauge (or vice versa)?

Generally, no. Corrosion Thickness Gauges (such as the ZX Series, TI-25MX/MXT, CMX, MMX, and MVX) are engineered with dual LEMO connectors and V-path timing circuits specifically for Dual-Element Pitch-Catch Transducers (one transmit connector, one receive connector). Conversely, Precision Thickness Gauges (such as the TI-007X, TI-007DLX, PZX1, PCX8-DL, and TI-PVX / PMX2-DL) use high-frequency single-channel pulser/receivers designed for Single-Element Delay Line and Contact Transducers. (Note: Dual-function flaw detectors like the Dakota FX70-DL and Dakota FX80-DL are the exception and support both dual-element corrosion probes and single-element precision/flaw probes).

How do I select the right transducer frequency and diameter for my material?

  • Thin Walls & Tight Curvatures: Choose a smaller diameter (1/16" to 1/4") and a higher frequency (7.5 MHz to 20 MHz) so the probe couples flat against small-diameter tubing and produces a short ultrasonic wavelength capable of resolving thin walls.

  • Thick Walls, Cast Iron, Plastics & Fiberglass: Choose a larger diameter (1/2" to 1") and a lower frequency (1.0 MHz to 2.25 MHz) so the wider, longer-wavelength beam penetrates deep through coarse grain boundaries without scattering.

When do I need to replace an ultrasonic transducer or delay line tip?

On Dual-Element Corrosion Transducers, the epoxy wear face gradually wears down when dragged across rough or rusty steel during Scan Mode. Once the wear face becomes excessively concave, grooved, or fails to zero properly on the gauge's reference disc, the probe should be replaced. On Single-Element Delay Line Transducers like the T-402-5507, the crystal itself never touches the test piece—only the inexpensive screw-in acrylic or graphite delay tip wears and can be swapped out in seconds.

Are Dakota Ultrasonics transducers compatible with Checkline ultrasonic thickness gauges?

Yes. Because Checkline's TI-25MX, TI-25MXT, TI-CMX, TI-CMXDLP, TI-MMX-SDL, TI-MVX, TI-007X, TI-007DLX, and TI-PVX thickness gauges are built on the same ultrasonic platform, all corresponding Dakota Ultrasonics Corrosion Transducers and Precision Thickness Transducers are 100% plug-and-play compatible.

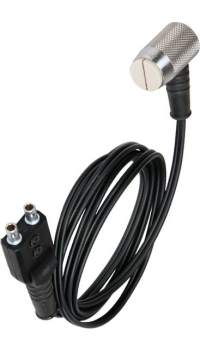

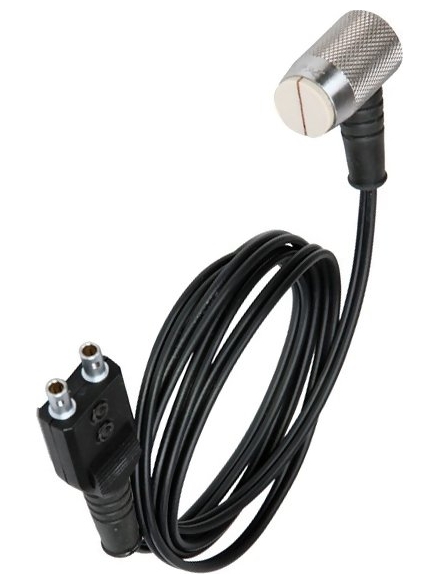

Dakota Ultrasonics T-104-4000 Dual Element Transducer

$469.00
FREE Ground Shipping
About this item
  • 1/2" diameter, 10.00 MHz dual element transducer typically used to measure cast aluminum parts.

View More Details

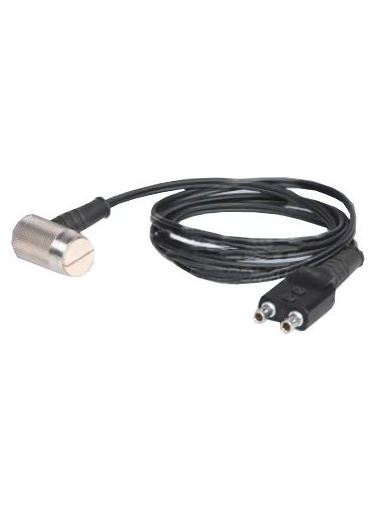

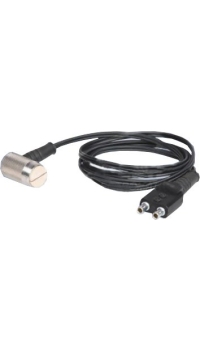

Dakota Ultrasonics T-104-9900 Transducer

$488.00
FREE Ground Shipping
About this item
  • Dakota Ultrasonics T-104-9900 Transducer
  • 1/2" diameter, 3.5 MHz Coating Transducer
  • Manufacturer: Dakota Ultrasonics
  • Warranty: One Year

View More Details

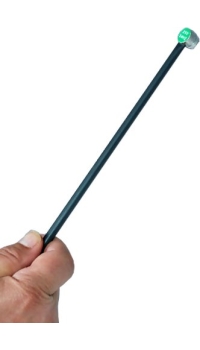

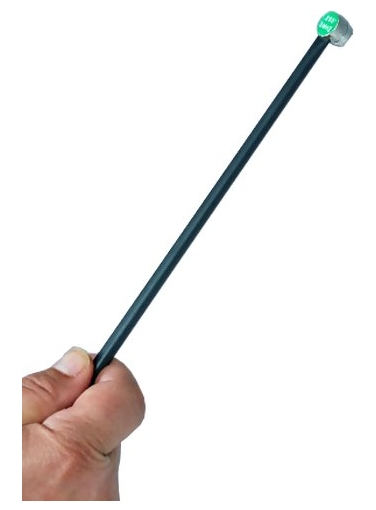

Dakota Ultrasonics T-132-2110 Transducer

$432.00
FREE Ground Shipping
About this item
  • Dakota Ultrasonics T-132-2110 Transducer
  • 1/4" - 5MHz dual-element transducer
  • 9" wand
  • Manufacturer: Dakota Ultrasonics
  • Warranty: One Year

View More Details

Dakota Ultrasonics T-174-9700 Transducer

$738.00
FREE Ground Shipping
About this item
  • Dakota Ultrasonics T-174-9700 Transducer
  • 1/2" diameter, 3.50 MHz for Dakota Ultrasonics TI-25M-MMX-UWM
  • Alpha-Hi Damped, potted cable, top in
  • Manufacturer: Dakota Ultrasonics
  • Warranty: One Year

View More Details

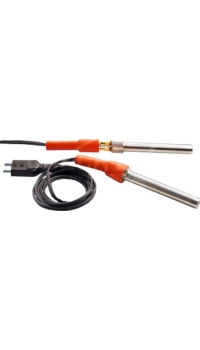

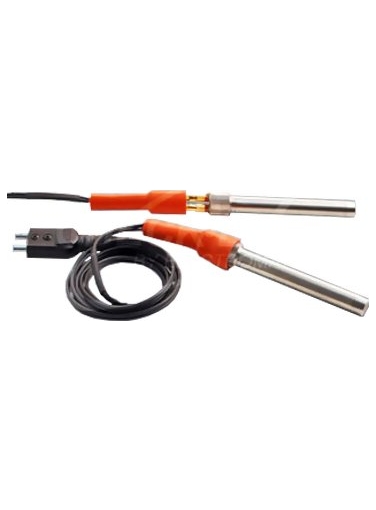

Dakota Ultrasonics T-212-2001 1/4" High Temperature Probe

$607.00
FREE Ground Shipping
About this item
  • Dakota Ultrasonics T-212-2001 1/4" High Temperature Probe
  • 1/4" - 5 MHz Hi Temp - 900 °F / 500 °C Dual Microdot connectors, top-in
  • Manufacturer: Dakota Ultrasonics
  • Warranty: One Year

View More Details

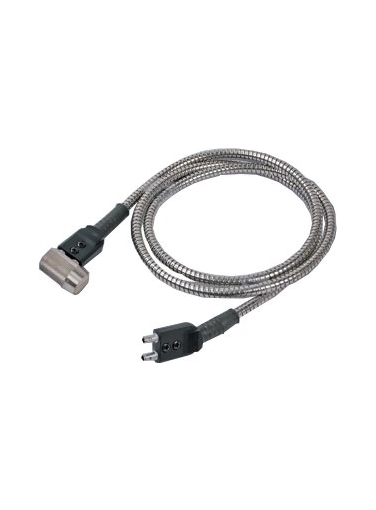

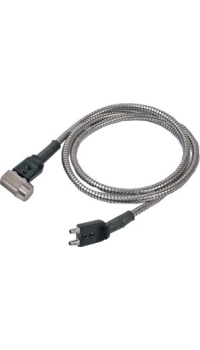

Dakota Ultrasonics T-904-2009 1/2" 5MHz Transducer

$594.00
FREE Ground Shipping
About this item
  • Dakota Ultrasonics T-904-2009 1/2" 5MHz Transducer
  • 1/2" diameter, 5.00 MHz Transducer
  • Armored Cable w/dual lemo connectors at both ends
  • Manufacturer: Dakota Ultrasonics
  • Warranty: One Year

View More Details

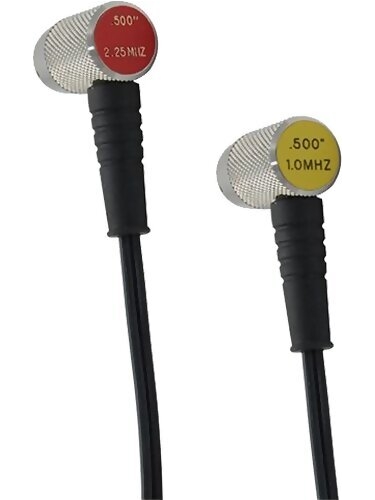

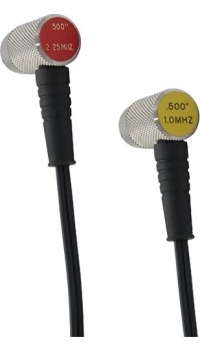

Dakota Thickness Gauge Transducers Corrosion Dual Element for CX

$621.00 - $754.00
FREE Ground Shipping
About this item
  • Dual element transducers are designed with two crystals in one case
  • The crystals are mounted at slight angles towards each other. Enabling better near surface focusing
  • Twin Crytal transducers are ideal for inspecting metal substrates but can also measure thicknesses of other materials, such as plastic, composites or fibreglass

View More Details

Dakota Thickness Gauge Transducers Corrosion Dual Element

$419.00 - $844.00
FREE Ground Shipping
About this item
  • Twin Crytal transducers are ideal for inspecting metal substrates but can also measure thicknesses of other materials, such as plastic, composites or fibreglass

View More Details


Dakota Single Element Transducers

$857.00 - $1,225.00
FREE Ground Shipping
About this item
  • Dakota Single Element Transducers are designed for the thickness measurement of thin materials with precision

View More Details

Dakota 1.00MHz Single Element Contact Transducers

$489.00 - $598.00
FREE Ground Shipping
About this item
  • Dakota Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials

View More Details

Dakota 2.25MHz Single Element Contact Non-Magnetic Transducers

$449.00 - $598.00
FREE Ground Shipping
About this item
  • Dakota 2.25MHz Single Element Contact Non-Magnetic Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials

View More Details

Dakota 3.50MHz Single Element Contact Transducers

$489.00 - $518.00
FREE Ground Shipping
About this item
  • Dakota 3.50MHz Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials

View More Details

Dakota 5.00MHz Single Element Contact Non-Magnetic Transducers

$449.00 - $518.00
FREE Ground Shipping
About this item
  • Dakota 5.00MHz Single Element Contact Non-Magnetic Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials

View More Details

Dakota 10.00MHz Single Element Contact Transducers

$328.00
FREE Ground Shipping
About this item
  • Dakota 10.00MHz Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials

View More Details

Dakota Ultrasonics T-402-5507 1/4" Diameter,15 MHz Delay Line Transducer with Ca...

$771.00
FREE Ground Shipping
About this item
  • Dakota Ultrasonics T-402-5507 1/4" Diameter,15 MHz Delay Line Transducer with Cable
  • 1/4" diameter, 15 MHz delay line transducer with cable
  • Manufacturer: Dakota Ultrasonics
  • Warranty: One Year

View More Details
