F.A.Q.
Can I use a Single-Element Precision Transducer on a Dual-Element Corrosion Thickness Gauge (or vice versa)?
Generally, no. Corrosion Thickness Gauges (such as the ZX Series, TI-25MX/MXT, CMX, MMX, and MVX) are engineered with dual LEMO connectors and V-path timing circuits specifically for Dual-Element Pitch-Catch Transducers (one transmit connector, one receive connector). Conversely, Precision Thickness Gauges (such as the TI-007X, TI-007DLX, PZX1, PCX8-DL, and TI-PVX / PMX2-DL) use high-frequency single-channel pulser/receivers designed for Single-Element Delay Line and Contact Transducers. (Note: Dual-function flaw detectors like the Dakota FX70-DL and Dakota FX80-DL are the exception and support both dual-element corrosion probes and single-element precision/flaw probes).
How do I select the right transducer frequency and diameter for my material?
- Thin Walls & Tight Curvatures: Choose a smaller diameter (
1/16"to1/4") and a higher frequency (7.5 MHzto20 MHz) so the probe couples flat against small-diameter tubing and produces a short ultrasonic wavelength capable of resolving thin walls. - Thick Walls, Cast Iron, Plastics & Fiberglass: Choose a larger diameter (
1/2"to1") and a lower frequency (1.0 MHzto2.25 MHz) so the wider, longer-wavelength beam penetrates deep through coarse grain boundaries without scattering.
When do I need to replace an ultrasonic transducer or delay line tip?
On Dual-Element Corrosion Transducers, the epoxy wear face gradually wears down when dragged across rough or rusty steel during Scan Mode. Once the wear face becomes excessively concave, grooved, or fails to zero properly on the gauge's reference disc, the probe should be replaced. On Single-Element Delay Line Transducers like the T-402-5507, the crystal itself never touches the test piece—only the inexpensive screw-in acrylic or graphite delay tip wears and can be swapped out in seconds.
Are Dakota Ultrasonics transducers compatible with Checkline ultrasonic thickness gauges?
Yes. Because Checkline's TI-25MX, TI-25MXT, TI-CMX, TI-CMXDLP, TI-MMX-SDL, TI-MVX, TI-007X, TI-007DLX, and TI-PVX thickness gauges are built on the same ultrasonic platform, all corresponding Dakota Ultrasonics Corrosion Transducers and Precision Thickness Transducers are 100% plug-and-play compatible.
Dakota Ultrasonics T-102-2000 Transducer
$419.00 - $544.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-102-2000 Transducer
- 1/4" diameter, 5.00 MHz dual element transducer
- Potted cable, side in
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Ultrasonics T-102-2700 Transducer
$469.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-102-2700 Transducer
- 1/4" diameter, 5.00 MHz dual element transducer
- Alpha-Hi Damped, Potted cable, top in
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details

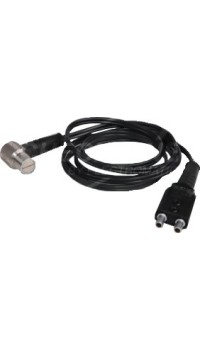

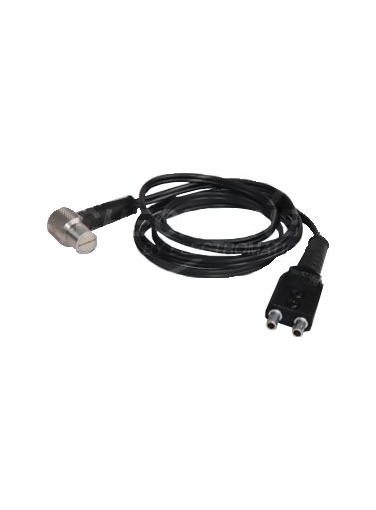

Dakota Ultrasonics T-102-2900 Coating Probe
$469.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-102-2900 Coating
- 1/4" diameter, 5.00 MHz, dual element, Through-Coating transducer
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Ultrasonics T-102-3300 Transducer
$463.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-102-3300 Transducer
- 1/4" diameter, 7.5 MHz dual element transducer
- Potted cable, side in
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Ultrasonics T-102-4000 Transducer
$457.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-102-4000 Transducer
- 1/4" diameter, 10.00 MHz dual element transducer
- Potted cable, side in
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Ultrasonics T-104-0000 Transducer
$742.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-104-0000 Transducer
- 1/2" diameter, 1.00 MHz dual element transducer
- Potted cable, side in
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Ultrasonics T-104-0600 Transducer
$488.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-104-0600 Transducer
- 1/2" diameter, 1.00 MHz dual element transducer
- Composite potted cable, side in
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Ultrasonics T-104-1000 Transducer
$432.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-104-1000 Transducer
- 1/2" diameter, 2.25 MHz dual element transducer
- Potted cable, side in
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Ultrasonics T-104-2000 Dual Element Transducer
$432.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-104-2000 Dual Element Transducer
- 1/2" diameter, 5.00 MHz dual element transducer
- Potted cable, side in
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details

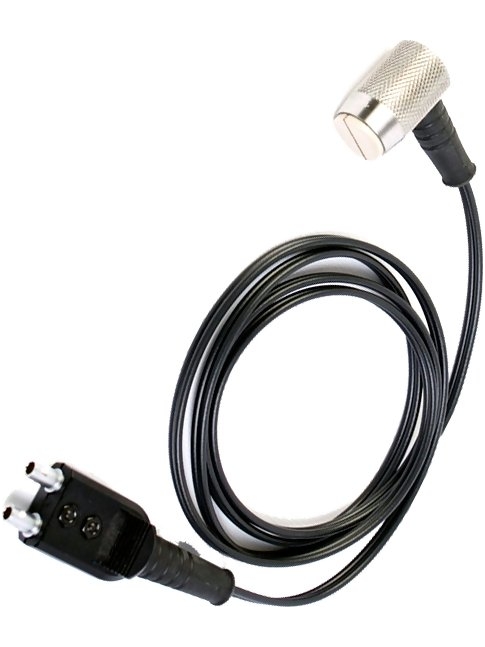

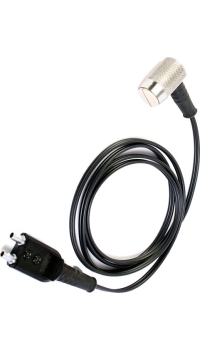

Dakota Ultrasonics T-104-2120 Transducer
$432.00
FREE Ground Shipping
About this item
View More Details
- 1/2" diameter, 5 MHz dual element transducer with 2" Radius for Measuring Cylinder Wall Thickness
View More Details

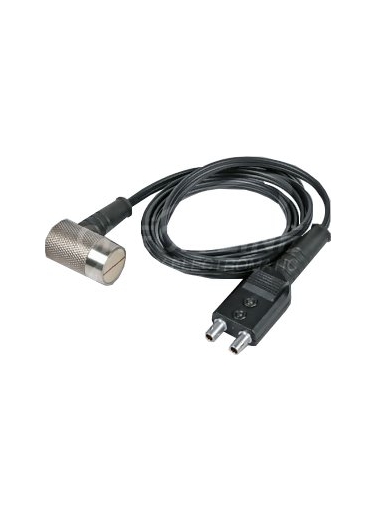

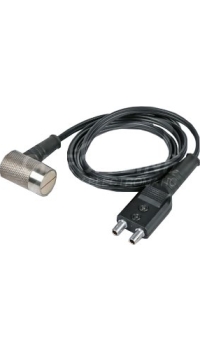

Dakota Ultrasonics T-104-2700 Dual Element Transducer
$488.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-104-2700 Dual Element Transducer
- 1/2" Diameter, 5MHz Dual Element Hi Damped Transducer
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Ultrasonics T-104-2900 Transducer
$488.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-104-2900 Transducer
- 1/2" diameter, 5.00 MHz Coating Transducer
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
Dakota Single Element Transducers
$857.00 - $1,225.00
FREE Ground Shipping
About this item
View More Details
- Dakota Single Element Transducers are designed for the thickness measurement of thin materials with precision
View More Details
Dakota 1.00MHz Single Element Contact Transducers
$489.00 - $598.00
FREE Ground Shipping
About this item
View More Details
- Dakota Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials
View More Details
Dakota 2.25MHz Single Element Contact Non-Magnetic Transducers
$449.00 - $598.00
FREE Ground Shipping
About this item
View More Details
- Dakota 2.25MHz Single Element Contact Non-Magnetic Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials
View More Details
Dakota 3.50MHz Single Element Contact Transducers
$489.00 - $518.00
FREE Ground Shipping
About this item
View More Details
- Dakota 3.50MHz Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials
View More Details
Dakota 5.00MHz Single Element Contact Non-Magnetic Transducers
$449.00 - $518.00
FREE Ground Shipping
About this item
View More Details
- Dakota 5.00MHz Single Element Contact Non-Magnetic Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials
View More Details
Dakota 10.00MHz Single Element Contact Transducers
$328.00
FREE Ground Shipping
About this item
View More Details
- Dakota 10.00MHz Single Element Contact Transducers are the common 0° transducers and are ideal for inspecting large, simple geometry materials
View More Details
Dakota Ultrasonics T-402-5507 1/4" Diameter,15 MHz Delay Line Transducer with Ca...
$771.00
FREE Ground Shipping
About this item
View More Details
- Dakota Ultrasonics T-402-5507 1/4" Diameter,15 MHz Delay Line Transducer with Cable
- 1/4" diameter, 15 MHz delay line transducer with cable
- Manufacturer: Dakota Ultrasonics
- Warranty: One Year
View More Details
