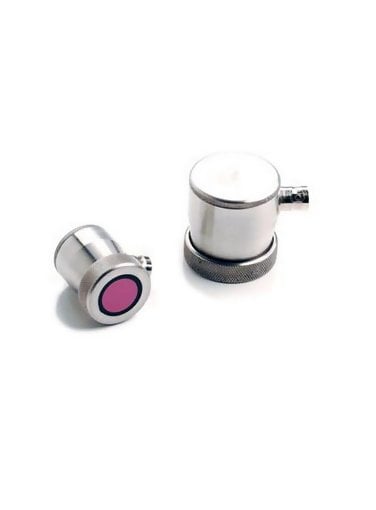

Dakota Ultrasonics SLM High Wear Single Element Contact Transducer

Description
Price: $ 315.00 up to 415.00
High Wear Single Element Contact Transducer

High wear contact transducers with extended stainless steel ring.

Used for Rough surfaces, castings, billets and extruded parts.

line
Models
line

Use the options below to filter the table to find the transducer you need. Clicking on the model will highlight the item in the Buy Now.

ModelElement SizeFrequencyDamping
T-8040-08680.500" ⌀1.0 MhzNone
T-8060-08680.750" ⌀1.0 MhzNone
T-8070-08681.00" ⌀1.0 MhzNone
T-8040-18780.500" ⌀2.25 MhzMedium
T-8060-18780.750" ⌀2.25 MhzMedium
T-8070-18781.00" ⌀2.25 MhzMedium
PSLM50250.500" ⌀2.25 MhzNone
PSLM75250.750" ⌀2.25 MhzNone
PSLM10251.00" ⌀2.25 MhzNone
PSLM50350.500" ⌀3.5 MhzNone
PSLM75350.750" ⌀3.5 MhzNone
PSLM10351.00" ⌀3.5 MhzNone
T-8040-28780.500" ⌀5.0 MhzMedium
T-8060-28780.750" ⌀5.0 MhzMedium
T-8070-28781.00" ⌀5.0 MhzMedium
PSLM50500.500" ⌀5.0 MhzNone
PSLM75500.750" ⌀5.0 MhzNone
PSLM10501.00" ⌀5.0 MhzNone

ModelCompositeConnectorConnector Entry
T-8040-0868YesBNCSide
T-8060-0868YesBNCSide
T-8070-0868YesBNCSide
T-8040-1878NoBNCSide
T-8060-1878NoBNCSide
T-8070-1878NoBNCSide
PSLM5025YesBNCSide
PSLM7525YesBNCSide
PSLM1025YesBNCSide
PSLM5035YesBNCSide
PSLM7535YesBNCSide
PSLM1035YesBNCSide
T-8040-2878NoBNCSide
T-8060-2878NoBNCSide
T-8070-2878NoBNCSide
PSLM5050YesBNCSide
PSLM7550YesBNCSide
PSLM1050YesBNCSide


line
Dimensions
line

Element Size (Dia.)AB
.500"1.250"1.030"
.750"1.400"1.250"
1.00"1.475"1.425"


line
Buy Now
line


Check the items you would like to purchase then click "Add To Cart"
ItemPrice
$415.00
$415.00
$415.00
$325.00
$315.00
$315.00
$315.00
$315.00
$315.00
$325.00
$315.00
$315.00
$315.00
$315.00
$315.00
