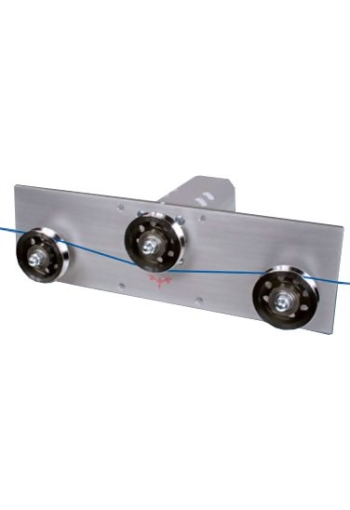

Tension sensors for flexible wire, plastic tubing and other materials up to 8 mm Ø
6 tension ranges from 0 - 1000 g to 0 - 50 kg
6 tension ranges from 0 - 1000 g to 0 – 50 kg
Tension sensors for flexible wire, plastic tubing and other materials up to 8 mm Ø
Mounting possibilities: Fixing housing on a fl at platform or mounting the front plate
Features
- Universal mounting possibility - easy to install: Housing mounting or cylindrical hole mounting
- Ball-Bearing mounted, V grooved guide rollers
- Accuracy of 2 % Full scale or better
- Mechanical overload protection
- Aluminum housing
- Guide rollers 30 mm Ø, available with V- or U-groove
Specifications
| Accuracy | ± 2% Full Scale and 1 digit or better |
| Overload Protection | 100% of tension range |
| Measuring Principle | Strain guage bridge |
| Meas. Roller Defelction | 0.5 mm, max |
| Output Signal | Standard: 0 - 1 V DC (analog)
Option: 0 - 10 V DC
Option: USB |
| Damping | Standard: 30 Hz (other values on request) |
| Temperature Drift | Less than ± 0.1% Full Scale / °C |
| Temperature Range | 10 - 45 °C |
| Air Humidity | 85% RH, max |
| Power Required | +15 ... 24 V DC, 50 mA (regulated) |
| Housing Material | Aluminum |
| Weight net (gross) | Approx. 500 g (1000 g) |
| Delivery Includes | Connector with 2 m cable with open ends |
Ranges
| Model | Range | *Measuring Head Width | **Calibration Material |
| TS2H-1K | 0 - 1000 g | 150 mm | PA: 0.30 mm Ø |
| TS2H-2K | 0 - 2000 g | 150 mm | PA: 0.50 mm Ø |
| TS2H-5K | 0 - 5000 g | 150 mm | PA: 0.80 mm Ø |
| TS2H-10K | 0 - 10 kg | 200 mm | PA: 1.00 mm Ø |
| TS2H-20K | 0 - 20 kg | 250 mm | PA: 1.50 mm Ø |
| TS2H-50K | 0 - 50 kg | 250 mm | PA: 1.50 mm Ø |
Other tensions ranges and measuring head widths available on request.
* Outside dimensions of front plate
** Suitable for 95 % of applications
PA = Polyamide Monofi lament
Guide Rollers
| V-Groove | Line Speed
Vmax...m/min | Roller Material |
| Standard | 4000 | Hardened Steel |
| U-grooved Code R1 | 4000 | Hardened Steel (radius 5) |
Output Signal Models
| Standard | 0 - 1 V DC (analog) |
| Option | Code A2: 0 - 10 V DC |
| Option | Code USB: digital USB |
Other roller materials (nickel-Plated steel or plastic) are available on request
