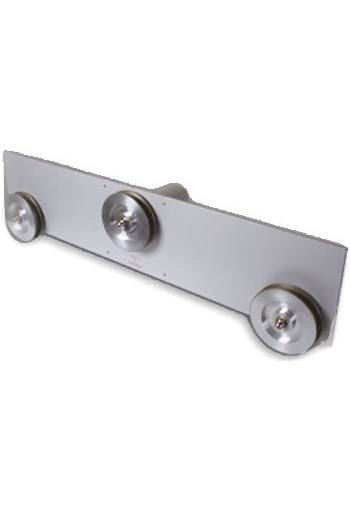

Stationary electronic tension sensor for measuring wires, ropes and cables up to 10 mm ⌀
3 ranges up to 100 Kg
Stationary electronic tension sensor for measuring wires, ropes and cables up to 10 mm ⌀
Sensor with large guide rollers (60 mm ⌀), minimizes material deflection
Features
- Guide rollers 60 mm groove ⌀, V-grooved or U-grooved, ball-bearing mounted.
- Tension sensor with integrated measuring amplifier.
- Various output signals: analog, digital (optional), current (optional), analog DMS (optional).
- Easy calibration to customized material by operator.
- Tension sensor with mechanical overload protection.
- Tension sensor with rugged aluminum housing
Specifications
| Accuracy | ±1 % full scale and ±1 digit
other calibration material: ±3 % full scale or better |
| Overload protection | 100 % of tension range |
| Measuring principle | Strain gauge bridge |
| Measuring roller deflection | Max. 0.5 mm |
| Natural frequency | Approx. 500 Hz, depending on tension range |
| Signal processing | Analog (option: digital) |
| Temperature drift | Less than ±0.05 % full scale/°C |
| Output Signal | Standard: 0 - 1 V DC (analog) impedance: ≥ 5 kΩ
Option: 0 - 10 V DC (analog), 4 - 20 mA (current) or mV/V (DMS) digital RS 232 |
| Damping (fg) | Standard: 30 Hz (other values on request) |
| Temperature range | 10 - 45 °C |
| Air humidity | 85 % RH, max. |
| Power supply | +15...24 V DC, max. 50 mA regulated
Code A10: max. +5 V DC, max. 20 mA regulated |
| Housing material | Aluminium |
| Weight, net (gross) | Approx. 1500 g (approx. 1800 g) |
Available Models
| Model | Range | Measuring Head Width* | Calibration Material |
| TSW-20K | 0 - 20 Kg | 550 mm | Steel rope 1.50 mm ⌀ (7x7x0.20) |
| TSW-50K | 0 - 50 Kg | 550 mm | Steel rope 3 mm ⌀ (6x7x0.30) |
| TSW-100K | 0 - 100 Kg | 550 mm | Steel rope 4 mm ⌀ (6x7x0.50) |
Other tension ranges available on request
* Outside dimensions of front plate
Guide Rollers
| V-Groove | Line Speed
Vmax...m/min | Roller Material |
| Standard | 2000 | Hardcoated aluminium (radius R3) |
| Code R2 | 2000 | Hardcoated aluminium (radius R5) |
Output Signal
Standard - Output signal: 0 - 1 VDC
- Click image for more information
|  |
Code A2 - Output signal: 0 - 10 VDC
- Click image for more information
| |
Code A3 - Output signal: 4 - 20 mA DC
- Click image for more information
| |
Code A10 - Output signal: mV/V
- for sensors without amplifier
- Click image for more information
| |
Code 232 - Output signal
- digital: RS 232
- analog: 0 - 1 V DC
- Up to 100 readings can be transferred per second, (internal sampling rate max. 4800 times/s)
- Click image for more information
| |
Code 232-H - Output signal
- digital: RS 232
- analog: 0 - 1 V DC
- Only for tension range 200 Kg or higher
- Up to 500 readings can be transferred per second, (internal sampling rate max. 25000 times/s)
- Only for certain tension ranges and designs available
- Please contact us for details
- Click image for more information
| |
