Digital Tension Meter for Sensitive Materials
3 Ranges up to 1000 g
For fragile materials sensitive to bending over a small radius such as optical fibers, carbon fibers, technical fibers etc.

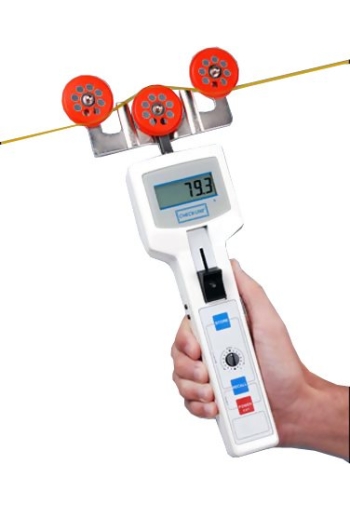

The FTMB is a special tension meter for sensitive materials as optical fibers, carbon fibers, technical fibers etc. It uses low-inertia 32 mm dia. rollers for fragile materials sensitive to bending over a small radius. Rollers are available in plastic or aluminum.
Kit Contents
- FTMB / FTMX Digital Tension Meter
- Four (4) AA batteries
- Needle nose pliers
- Operating instruction manual
- Carrying case
Features
- Special guides on the bracket assembly permit easy material acquisition
- Filament guide and roller shifting mechanism ensure easy acquisition of the running material
- large, V-grooved guide rollers with 32 mm groove diameter, ball-bearing mounted
FTMX Additional Features
- Built-in datalogging with RS232 and 0-1 VDC Analog output
- Memory capacity of 100 values plus min, max, peak, avg and standard deviation
- Optional TensionView software available for batch download or continuous real-time trending
Specifications
| Calibration | According to SCHMIDT factory procedure |
| Accuracy | From 10% up to 90% of tension range: ±0.5% full scale and ±1 digit remaining tension range and other calibration material: ± 3% full scale and ±1 digit |
| Overrange | Approx. 15% full scale, without accuracy guarantee |
| Overload protection | 100% of tension range |
| Measuring principle | Strain gauge bridge |
| Measuring roller deflection | 0.2 mm max. |
| Converter | 12 bit A/D |
| Temperature Coefficient | Gain: less than ±0.01 % full scale/ºC
Zero point: less than ±0.3 % full scale/ºC |
| Display | LCD 4 digit, 12 mm high |
| Field adjustment | ±7 steps in 1.5 % increment |
| Memory | MIN, MAX, PEAK and last value |
| Temperature range | 10 - 45 ºC |
| Air humidity | 85 % relative humidity, max. |
| Housing Dimensions | 235 x 76 x 45mm (LxWxH) |
Additional specifications model for BTMX
| Expanded memory | Max. 100 readings, MAX, MIN, and PEAK as well as average values and standard deviation |
| Digital output signal | RS 232 C (4800, 8, N, 2) |
| Analog output signal | 0 - 1 V DC (converter rate 16 ms) |
| Digimatic interface | Mitutoyo |
Tension Ranges
| Model | Range | Resolution | Measuring Head
Width mm |
FTMB-200
FTMX-200 | 2.0 - 200.0 g | 0.1 g | 140 |
FTMB-500
FTMX-500 | 5.0 - 500.0 g | 0.1 g | 140 |
FTMB-1000
FTMX-1000 | 50 - 1000 g | 1 g | 140 |
Guide Rollers
| Roller Details | Image | Dimensions |
Standard
Max Speed: 4000 (m/min)
Material: hardcoated aluminium (R12021) |  | |
Option - Code T
Max Speed: 4000 (m/min)
Material: plastic red (PVC) | | |
