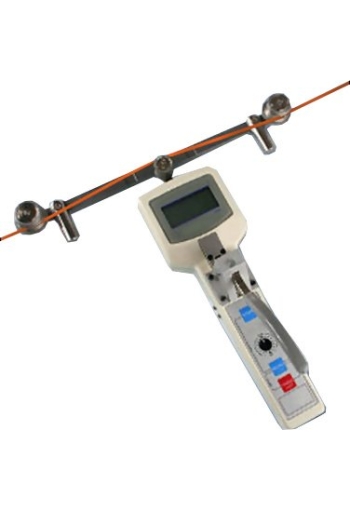

DTWB / DTWX Digital Tension Meter

See More Tension Meters, Digital

DTWB / DTWX Digital Tension Meter

See More Tension Meters, Digital
Call for price
    warrenty

    Product Description
    Heavy Duty Digital Tension Meter
    2 Ranges up to 50 Kg
    For material diameters up to 6mm (.250")

    DTWB Standard Model
    DTWX Data-Logging Model

    2 Ranges Up To 50 Kg
    For material diameters up to 6mm (.250")


    line
    Kit Contents
    line

    • DTWB / DTWX Digital Tension Meter
    • Four (4) AA batteries
    • Instruction Manual
    • Carrying case


    line
    Features
    line

    • Built-in datalogging with RS232 and 0-1 VDC Analog output
    • Memory capacity of 100 values plus min, max, peak, avg and standard deviation
    • Optional TensionView software available for batch download or continuous real-time trending


    line
    Specifications
    line

    Accuracy*± 0.5% Full Scale, ± 1 digit
    (10 - 90% of Full Scale)
    ± 3.0% Full Scale, ± 1 digit
    (Remaining portion of range)
    Measuring Frequency16 m/sec (62.5 samples/sec)
    Deflection of Sensing Roller0.2 mm (maximum)
    Overload Capacity200% of Full Scale
    Display4-Digit LCD, 12 mm high
    Display Update Rate0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable
    Standard MemoryLast, maximum, minimum and peak
    Field Calibration Adjustment± 7 steps, 1.5% per step
    Battery TypeFour (4) 1.5 V AA (included)
    Battery Life20 hours, continuous use
    Auto Power OffAfter 2 minutes of non-use
    Roller MaterialHard-Coated Aluminum
    Maximum Speed1000 meters per minute
    Housing MaterialDie-cast Aluminum
    Weight1.43 lbs. (650 g)
    Operating Temperature32 to 132 °F (0 to 45 °C)
    WarrantyOne year


    line
    Ranges
    line

    ModelRangeResolutionMeas. Head Width
    DTWB-20KB
    DTWX-20KB
    2.00 - 20.00 Kg0.01 Kg285 mm
    DTWB-50KB
    DTWX-50KB
    5.00 - 50.00 Kg0.01 Kg285 mm


    line
    Roller Guide
    line

    Roller DetailsImageDimensions
    Center Roller
    Max Speed:
    1000 m/min
    Material: Hard-Coated Aluminum
    Outer Rollers
    Max Speed:
    1000 m/min
    Material: Hard-Coated Aluminum
