125-S-HDI Hand-Held Tension Sensor

See More Tension Meters, Digital
Call for price
    warrenty

    Product Description
    Tension Sensor for high denier yarns
    6 Tension Ranges, up to 5,000 g/cN

    Designed for measurement of high denier yarns for operating tensions up to 5Kg and for filament speeds up to 3000 m/min and higher.

    Outer Rollers are mounted on a spring-loaded bracket which greatly simplifies acquisition of the yarn without stopping the speed. Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins.

    Connect sensor to our portable, Tension Indicators:


    line
    Features
    line

    • Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
    • Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins
    • Small angle of contact minimizes twisting interference
    • Outer Rollers are mounted on a spring-loaded bracket which greatly simplifies acquisition of the yarn without stopping the speed
    • Lightweight and compact permits use in applications where access space is limited


    line
    Specifications
    line

    Measuring PrincipleCapacitive Sensing
    Accuracy±1.0% or better
    Material Deflection15 Degrees
    Roller MaterialPlasma Coated Steel

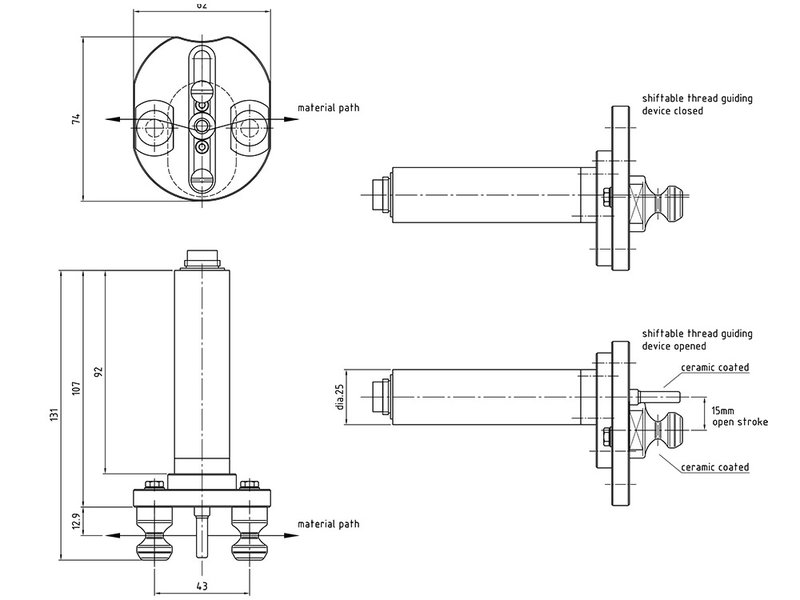

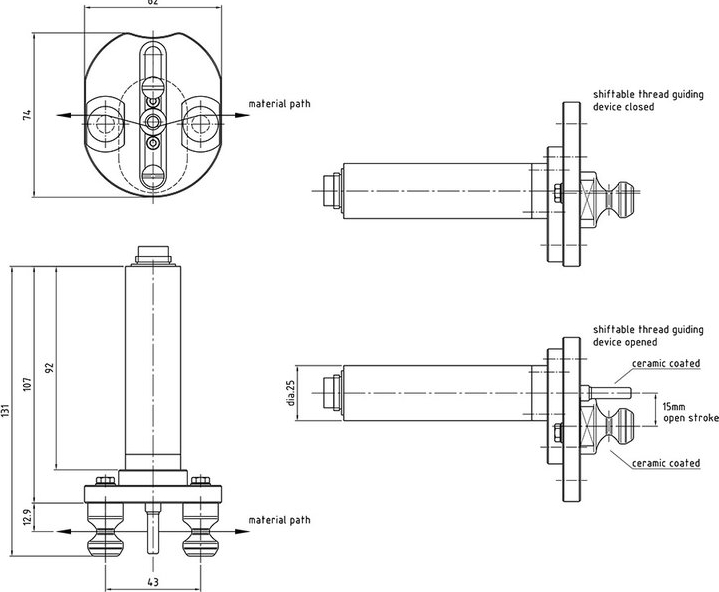

    Dimensions100mm x 25mm diameter
    Weight100 grams
    Calibration CertificateOptional


    line
    Ranges
    line

    ModelRange
    125/S-500-HDI500 g/cN
    125/S-1K-HDI1000 g/cN
    125/S-2K-HDI2000 g/cN
    125/S-3K-HDI3000 g/cN
    125/S-4K-HDI4000 g/cN
    125/S-5K-HDI5000 g/cN
