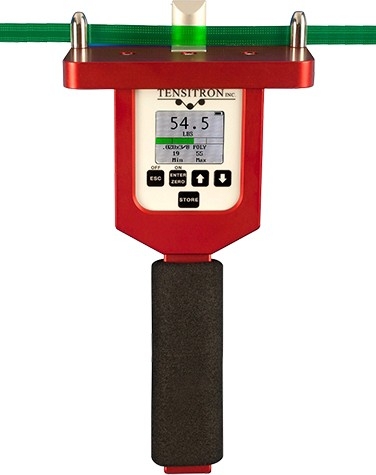

Tensitron STX-1 Digital Strap Tension Meter

See More Strap Tension Meters

Tensitron STX-1 Digital Strap Tension Meter

See More Strap Tension Meters
Price:
$1,549.00 - $1,749.00
    warrenty

    Product Description
    Quick, easy operation
    Lightweight, portable design
    Durable construction

    Get the exact tension required no matter what you’re strapping. Tensitron’s digital strap tension meters will help you safely secure your pallets and cartons or truck and rail loads. These meters will also reduce crushed containers or products and loose loads. Use the Tensitron STX-1 Digital Strap Tension Meter to measure tensions on poly or metal strapping; woven, nylon tie-down straps; or stiff stationary materials like fence wire and saw blades


    line

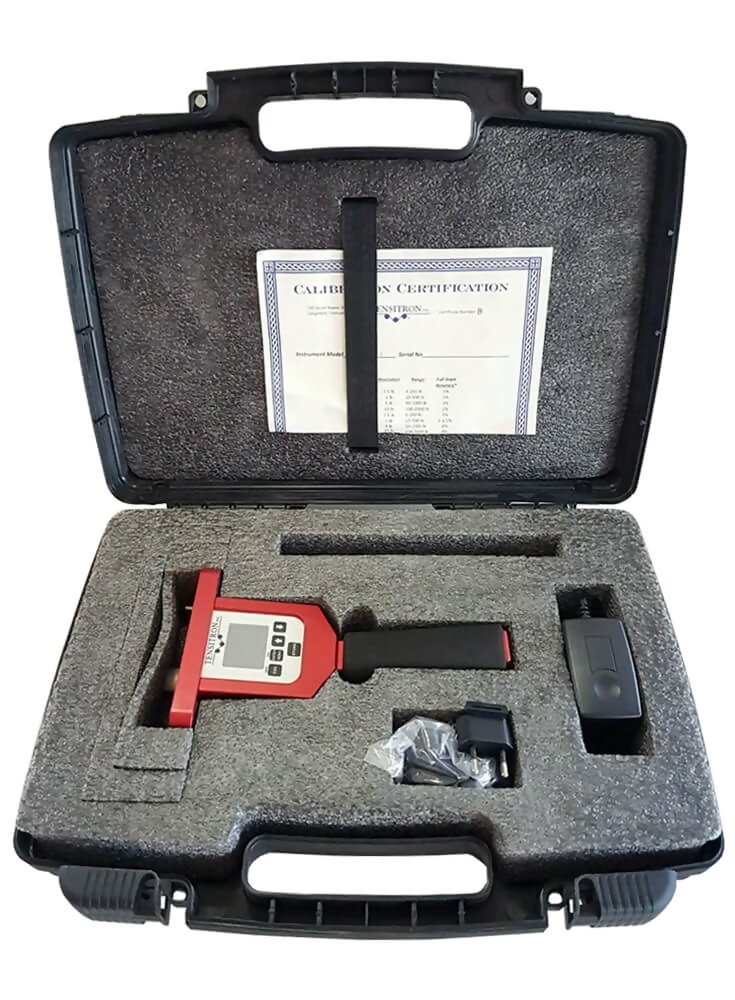

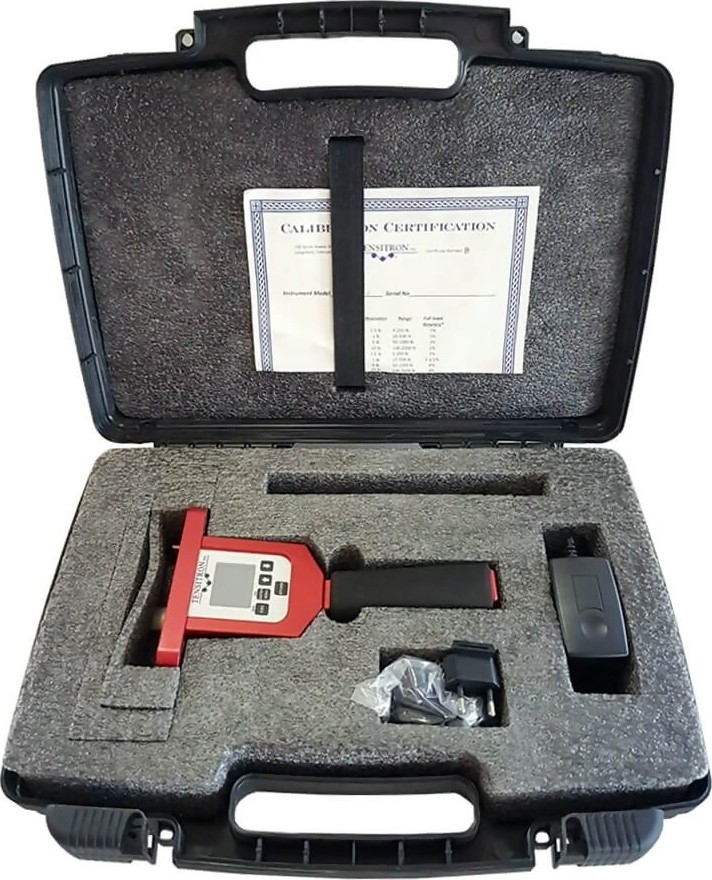

    Kit Contentsline

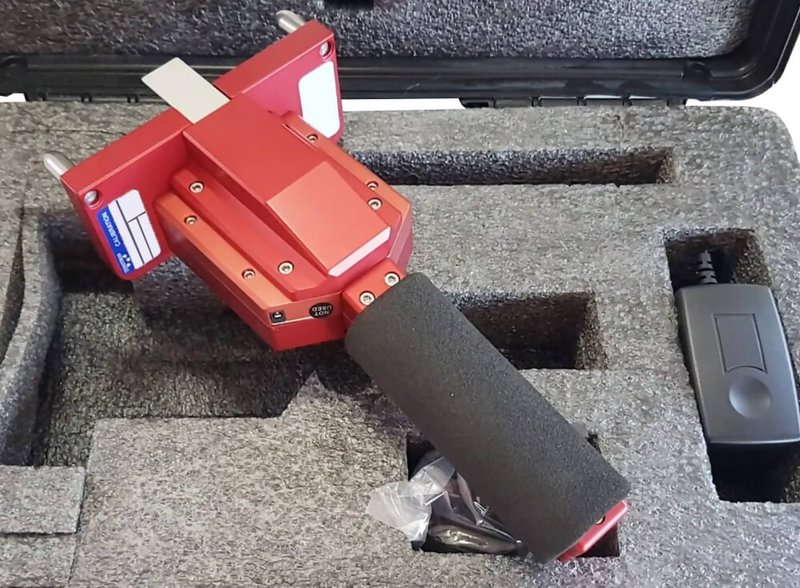

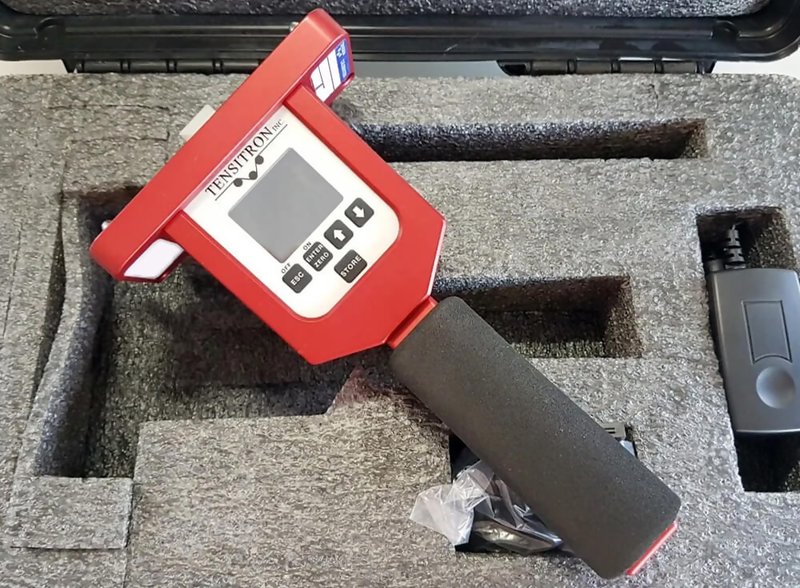

    • Tensitron STX-1 Digital Strap Tension Meter
    • Re-chargeable NIMH battery assembly
    • NIST-Traceable Calibration Certificate
    • Power supply
    • Instructions

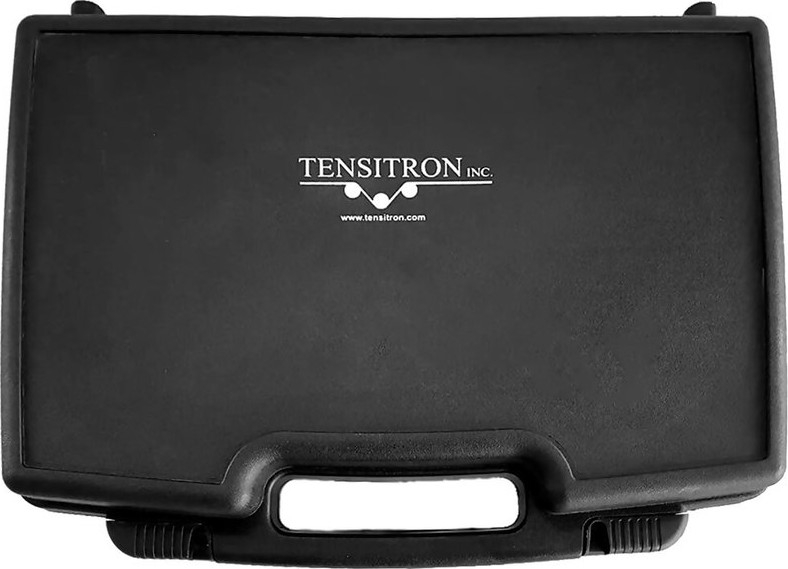

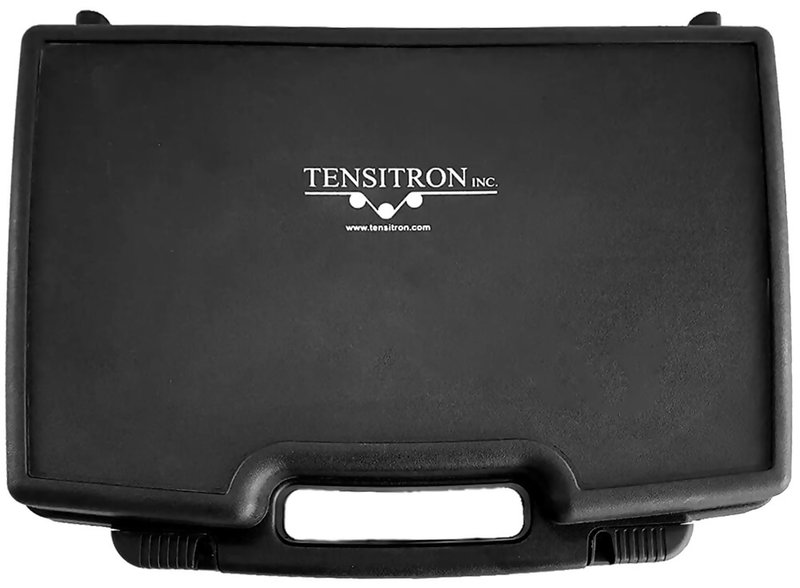

    • Durable lightweight carrying case with protective foam inserts


    line
    Features
    line

    Take the guesswork out of tensioning straps, bands, and tie downs

    • Protects Products
    • Improves Safety
    • Saves Costs

    Accurate, Convenient Tension Measurement

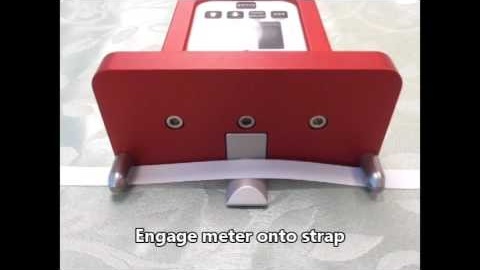

    • Contacts engage easily onto straps that are tight against another surface
    • Custom-calibrated for your straps or with standard menu of commonly-used strap sizes
    • Tension ranges from 1 to 2,000 lb.
    • Quick, easy, one-handed operation
    • Lightweight, portable
    • Durable, long-lasting construction

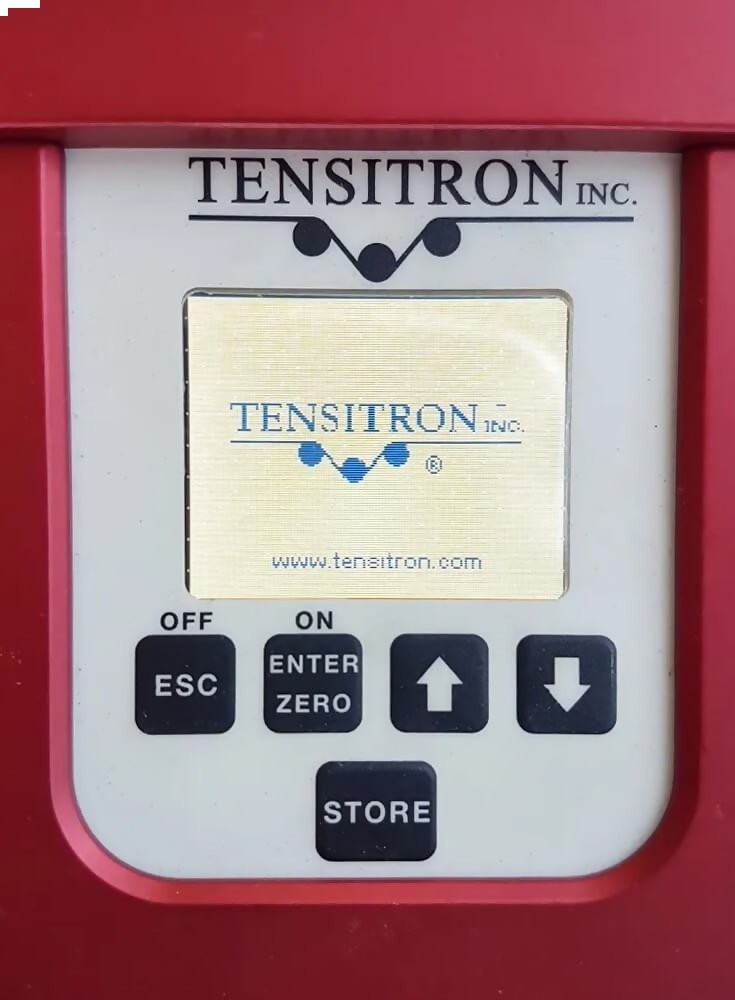

    • Backlit, digital display
    • Color-bar graphic provides quick visual of tension levels
    • Selectable units (lb., kg, or daN)
    • Data storage and statistics
    • Analog or serial output (optional)
    • Includes carrying case and NIST-traceable calibration certificate

    Measures all kinds of stationary bands and straps

    • Poly or steel straps and bands
    • Woven tie-down and ratchet straps
    • Fence wire
    • Saw blades
    • Baling wire or twine

    Used wherever products need to be safely secured

    • Palletized cans, bottles, or food products
    • Stacks or bundles of lumber, glass, or bricks
    • Appliances
    • Corrugated packaging and other paper products
    • Rail cars, truck loads


    line
    Specifications
    line

    Power RequirementsPower Supply operates with input voltages from 100 -240V and includes several interchangeable adapters allowing use with European, U.S., Australian, English and other plug configurations
    BatteryRechargeable NiMH, custom proprietary design. Approximately 8 hours depending upon backlighting intensity
    WarrantyOne year, against factory defects

    1 radial incoming force without additional bending or tilting moment


    line
    Comparison Chart
    line

    Standard Instruments - Using Customer Material

    STX-1 series instruments are calibrated specifically to your strapping type(s) and size(s) to ensure the greatest accuracy possible. When ordering, specify: material, width and thickness of the strap.

    ModelRangeAccuracy +/- Full-scaleResolution
    STX-250-11 lb. - 250 lb.2% (2.5 lb.)0.2 lb.
    STX-500-125 lb. - 500 lb.2% (5 lb.)1 lb.
    STX-1000-150 lb.- 1,000 lb.2% (10 lb.)5 lb.
    STX-2000-1100 lb. - 2,000 lb.2% (40 lb.)1 lb.


    Standard Instruments - Using Multiple Materials

    STXM-1 series instruments include multiple selections for different strapping. Models STXM-250-1 through STXM-1000-1 includes multiple selections for Poly and PET strappings. The Model: STXM-2000-1 includes selections for both Steel, Poly and PET strappings

    ModelRangeAccuracy +/- Full-scaleResolution
    STXM-250-11 lb. - 250 lb.3% (7.5 lb.)0.2 lb.
    STXM-500-125 - 500 lb.3.5% (17.5 lb.)1 lb.
    STXM-1000-150 lb. - 1,000 lb.4% (40 lb.)5 lb.
    STXM-1000-SC-150 lb. - 1,000 lb.4% (40 lb.)5 lb.
    STXM-2000-1100 lb. - 2,000 lb.4% (80 lb.)10 lb.


    line
    Downloads
    line

    Tensitron STX-1 Digital Strap Tension Meters - Data Sheet
    Tensitron STX-1 Digital Strap Tension Meters - Operating Instructions
    Tensitron STX-1 Digital Strap Tension Meters - Dimensions
