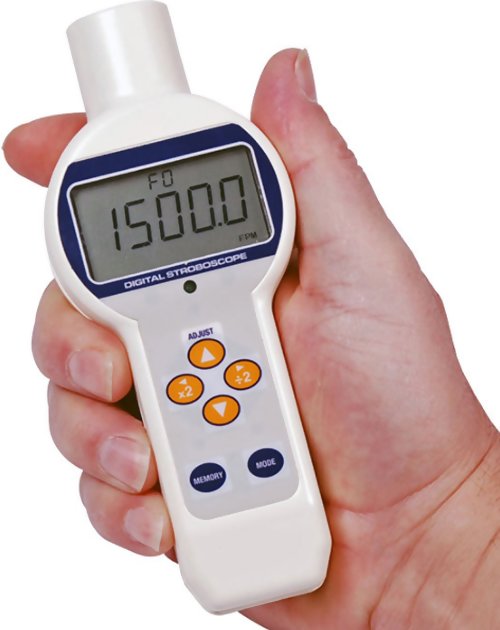

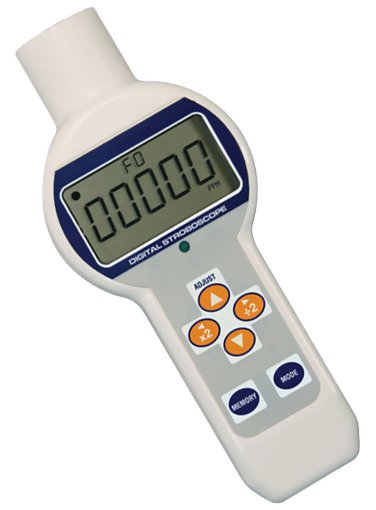

Compact LED Stroboscope

---

High efficiency LED solid-state light source - never needs replacement

---

Wide measuring range - up to 120,000 fpm

---

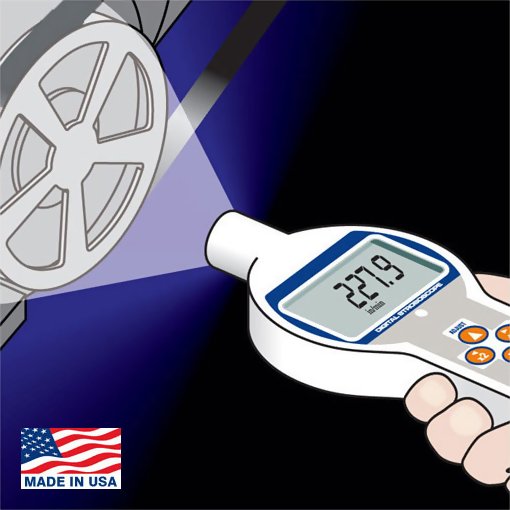

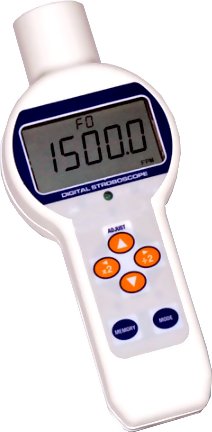

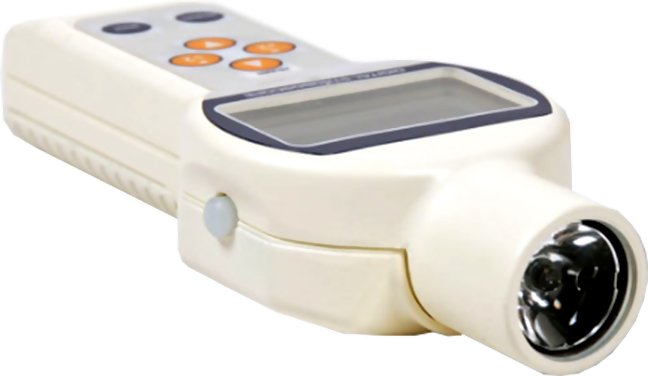

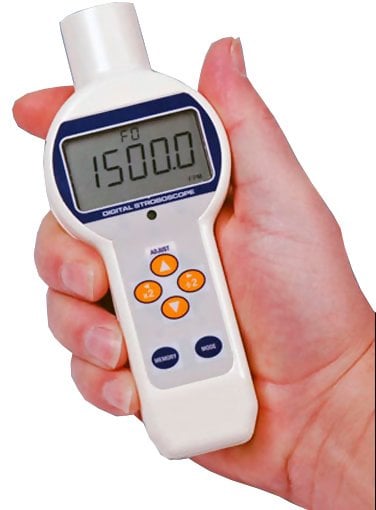

The NS-600 LED Stroboscope is designed to measure the speed of a rotating object or one that is cycling in a linear repetitive pattern without contact or reflective tape. When the flash rate and rpm rate are identical, the target will appear frozen" visually. If the flash rate it adjusted slightly, the target would be put into slow motion for detailed motion analysis, observation or trouble-shooting.

The NS-600 features a rugged cast-Aluminum housing, the latest LED technology and compact size making it a perfect choice for use anywhere on the factory floor. The NS-600 is ideal for speed, motion and vibration analysis, such as rotating shafts, fans, cams, etc.

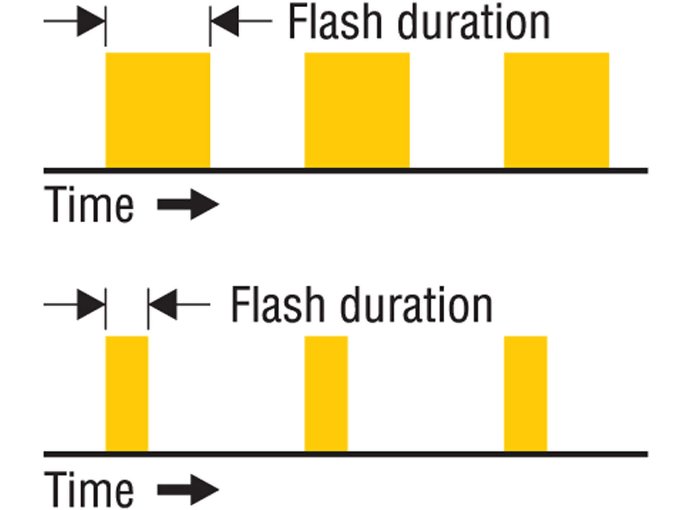

NS-600 automatically adjusts flash duration for ultra high speed and features a user-selectable flash duration for those applications where the user wants to optimize either the image "sharpness" or increase the "brightness" to the highest levels

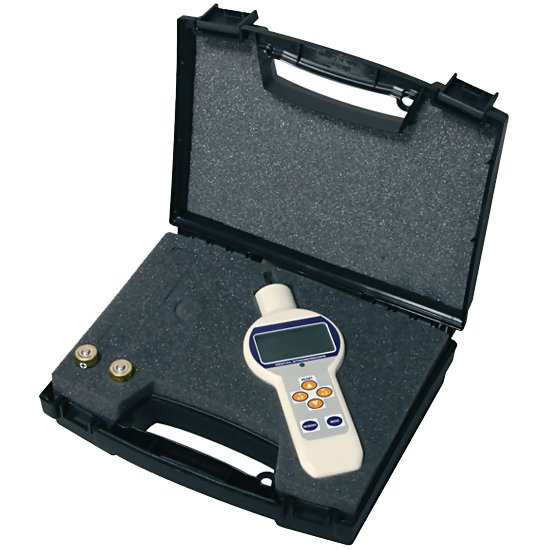

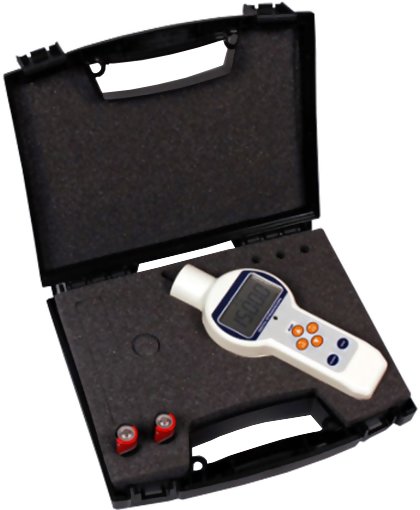

Kit Contents

---

Features

---

• High efficiency LED solid-state light source – never needs replacement
• Auto wide measuring range – up to 120,000 fpm/rpm
• Highly stable drift free operation
• Store up to 10 flash rates in memory for recall or quick re-tests
• Push button operation with x2 and ÷2 buttons for quick adjustment
• Easy-to-read 5 digit 0.47" (12 mm) high LCD
• Uses two AA-Batteries providing continuous operation of 8 hours

Specifications

---

Selectable Units	fpm or Hz
Accuracy	±0.01%, ±1 LSD
Display	12mm high, 5digit LCD
Power	2- AA batteries
Battery Life	8 hours (@6,000 rpm when fully charged)
Operating Temp	0 to 45° C
Weight	.5 lb/225 g

Ranges

---

Range	Resolution
6.0 to 9999.9 fpm/rpm	±0.1 fpm/rpm
10000 to 120000 fpm/rpm	±1 fpm/rpm (over 100,000 display flashes)
.20 ~ 999.00 Hz	0.01 Hz
1000.0 ~ 2000.0 Hz	0.1 Hz
