This product has been replaced by the Data Loggers
Batch Oven Temperature Data Logger and Travelling Oven Temperature Data Logger
Low cost 2 and 4 probe input temperature data logger

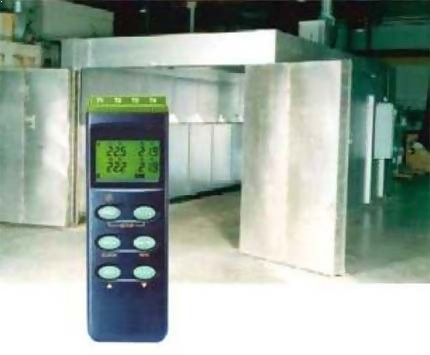

Suitable for temperature monitoring applications, such as ovens, kilns, freezers, as well as powder coating
The datalogger can be used as a thermometer with all K Type probes.

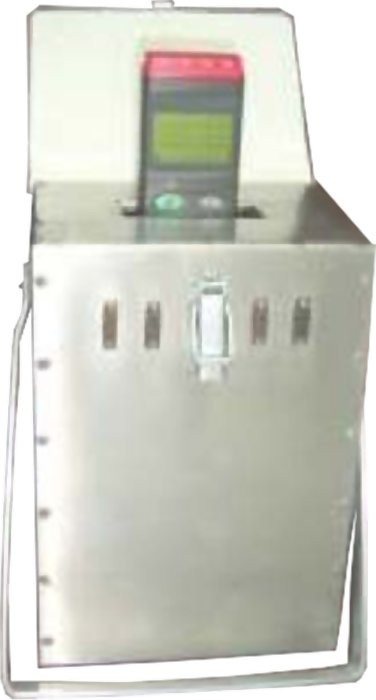

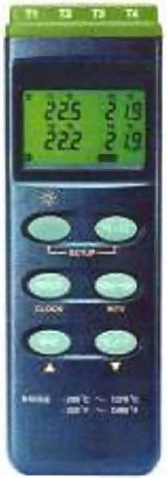

This is a low cost 2 or 4 probe input. Manufactured for powder coating temperature monitoring applications. Included is, stainless steel oven cabinet, temperature datalogger / gauge, Four suitable clamp probes for powder coating ovens, software and cables. The K Type temperature input, oven Datalogger has a large digital display, the data logger unit has the added benefit of being able to be used as a Digital thermometer with all K Type probes.

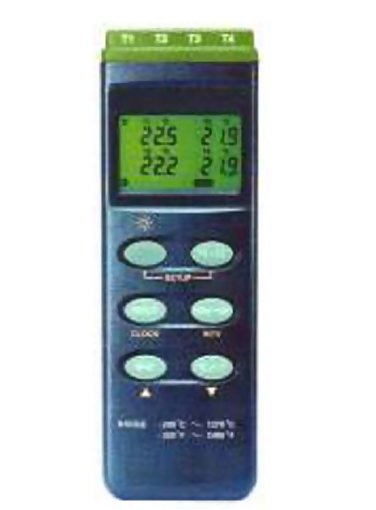

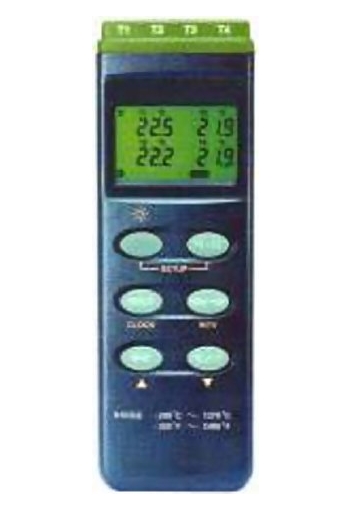

The data logger display will show all probes simultaneously.

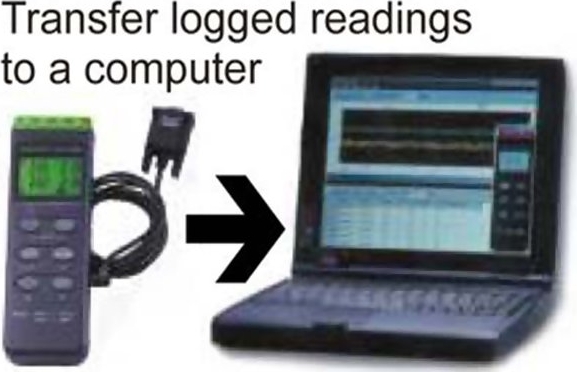

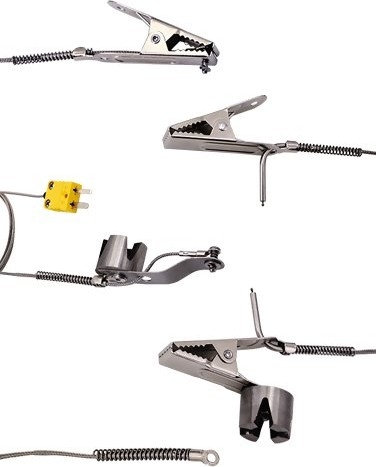

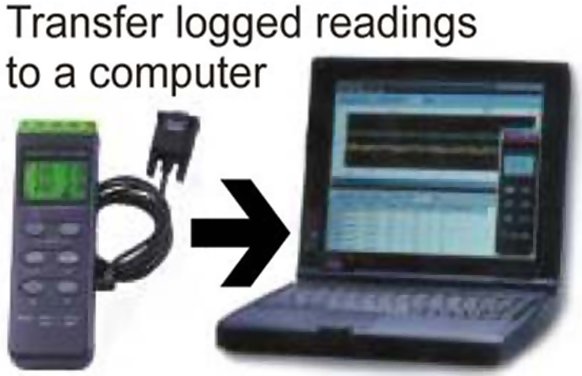

Linked to your computer will give graphs and charts of the temperatures logged with printouts available. Supplied with 2x or 4x 1.75m clamp leads
Batch Oven Temperature Data Logger
Low cost 2 or 4 probe input temperature datalogger, suitable for many temperature monitoring applications such as, ovens, kilns, Freezers, as well as powder coating applications. Includes datalogger, long leaded clamp probes, software and cables. The two (2) and the four (4), ( K Type Digital thermometer ) temperature input oven logger has a large digital display. The data logger can be used as a thermometer, with all K Type probes. The data loggers digital display will show all probes simultaneously. Supplied with 1 or 2 sets of 5 & 12 metre clamp leads
Kits contain
- Four-channel Datalogger
- Leads/Clamp
- Interface Cable
- Datalogger Software
- Operating Instructions
Travelling Oven Kit also contains
- Stainless-steel Box with Handle
- Cotton Sock
- (Shipping weight 9.5Kg)
Specifications
| Selectable °C or °F | | Range | | | Logger | -200°C to +1370°C | | Probe | -50°C to +400°C | | Operating | 0°C to +50°C | | Resolution | | 0.1°C | -200°C to +200°C | | 1°C | +200°C to +1350°C | | Accuracy | ±0.3%rdg+1°C | | Recording Interval | 1 sec to 1hr 40mins (1 to 99mins 99 secs) | | Memory | 16,000 readings per channel | | Dimensions (Box) | 150 x 200 x 325mm | | Power | 9V Battery (Optional power supply available) | | Shipping Weight | 9.5Kg (Travelling Oven Kit) |
