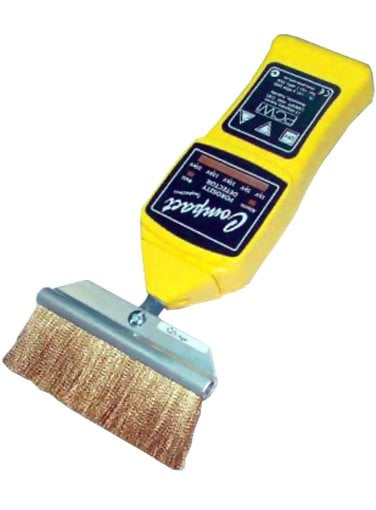

PCWI Inspector DC Porosity Detector

Description
Discontinued
Price: PCWI Compact DC Inspector Porosity Detector
  Measuring Ranges:
0 to 10,000 Volts with 9V battery

"Single" handheld, light weight porosity detector for simplicity and ease of operation

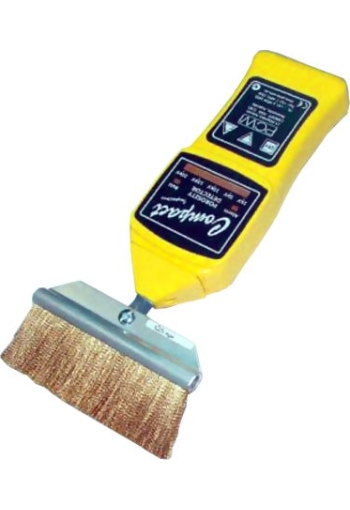

Inspector DC Porosity Detector

Conforms to ASTM G62-87 (1998), NACE RP0274-98, NACE RP0490-2001, NACE RP0188-99, ASTM D4787-93 (1999), JIS G-3491, JIS G-3492, ANSI/AWWA C214-89, ANSI/AWWA C213-94, ISO 2746:1998 & AS3894.1-2002

Portable Single Handheld Holiday Detector - Designed with the inspector in mind - Weighs only 460g

Features

LED bargraph display of voltage
"Single" handheld, light weight porosity detector for simplicity and ease of operation
LED battery condition indicator
Integral probe

Applications

Porosity detection of tanks, valves, pumps, pipeline field joints and general inspection and maintenance.

Suitable for a broad range of testing and inspection requirements. It is recommended that the integral probe be limited to a 5" (125mm) wide flat brush or fan brush electrode.

Complete Kit

The Inspector Holiday Detector Kit
The Inspector Kit comprises the detector, power pack (20kV Inspector only), 5-inch (125 mm) flat brass wire brush or optional fan brush, 23-feet (7 m) Earth lead with clamp, carrying case, operating instructions with Conformance Certificate.

Specifications

Model:
0809
Unit Weight:
1 lb (460 g)
Shipping Weight:
3.3 lbs (1.5 kg)
Display Voltage:
LED bargraph
Test Voltage:
0 to 10 kV (using 9V battery)
Power Supply:
Battery (9V internal)
Output
Test Current:
up to 100µm
Dimensions:
8.25" x 3.1" x 1.5" (210 x 75 x 35 mm) excluding brush
Alarm:
Audible and visual
Battery Condition:
LED indicator
