    Mountz TBIH Break-Over Torque Wrench with Interchangeable Head
    Interchangeable heads
    Torque Ranges: 25 ozf.in - 50 lbf.in

    The Mountz TBIH Break-Over Torque Wrench with Interchangeable Head is a small torque wrench ideal for applications with limited space. The flexible preset wrench can adapt to different fastening applications as it is compatible with different head options like open end, box end, flare end, hex key end or a ratchet head.The slim wrench features a tamper-proof internal adjustment. When the TBIH torque wrench achieves torque, the head breaks-over signaling to the operator to stop applying torque to the fastener or bolt. Break-over torque wrenches improve control of the fastening process by reducing the risk of both over and under tightening.


    line
    Features
    line

    • The break-over mechanism minimizes shock to assemblies.
    • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
    • "Breaks-over" when preset torque is reached eliminating overtorquing.
    • Six different colored aluminum handles allow for color-coding of specific torque values in production areas.
    • Small and lightweight. Ideal for use in restricted spaces.
    • Interchangeable heads are manufactured with a common centerline so the torque setting remains the same when head sizes are changed.


    line
    Ranges
    line

    Torque Range Black Handle Blue Handle Red Handle
    25 - 50 ozf.in / 0.17 - 0.35 Nm 068000-A 068001-A 068002-A
    3 - 12 lbf.in / 0.34 - 1.3 Nm 068000-B 068001-B 068002-B
    12 - 21 lbf.in / 1.3 - 2.37 Nm 068000-C 068001-C 068002-C
    20 - 50 lbf.in / 2.26 - 5.65 Nm 068000-D 068001-D 068002-D

    Torque Range Green Handle Gold Handle Silver Handle
    25 - 50 ozf.in / 0.17 - 0.35 Nm 068003-A 068004-A 067999-A
    3 - 12 lbf.in / 0.34 - 1.3 Nm 068003-B 068004-B 067999-B
    12 - 21 lbf.in / 1.3 - 2.37 Nm 068003-C 068004-C 067999-C
    20 - 50 lbf.in / 2.26 - 5.65 Nm 068003-D 068004-D 067999-D


    line

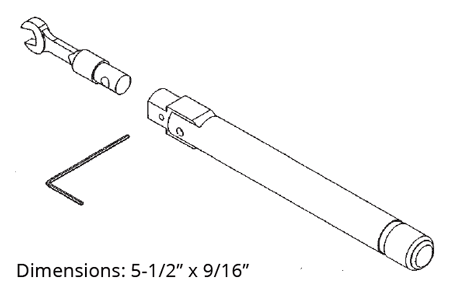

    Dimensions
    line


    line
    Interchangeable Heads
    line

    Open End

    American

    Model Size Model Size
    068115 5/64" 068107 11/32"
    068100 1/8" 068108 3/8"
    068180 9/64" 068098 13/32"
    068101 5/32" 068109 7/16"
    068102 3/16" 068110 1/2"
    068314 13/64" 068111 9/16"
    068103 7/32" 068112 5/8"
    068215 15/64" 068114 11/16"
    068104 1/4" 068113 3/4"
    068105 9/32" 068099 13/16"
    068106 5/16" 068042 7/8"

    Metric

    Model Size Model Size
    068159 3 mm 068146 12 mm
    068202 4 mm 068147 13 mm
    068139 5 mm 068148 14 mm
    068046 5.5 mm 068136 15 mm
    068140 6 mm 061100% 16 mm
    068160 6.5 mm 068237 17 mm
    068141 7 mm 068222 18 mm
    068142 8 mm 068208 19 mm
    068149 8.5 mm 068199 20 mm
    068143 9 mm 068138 21 mm
    068144 10 mm 068209 22 mm
    068145 11 mm

    line

    Box End

    American

    Model Size Pt Size Model Size Pt Size
    120 1/8" 6 pt 128 3/8" 12 pt
    121 5/32" 6 pt 129 7/16" 12 pt
    122 3/16" 6 pt 130 1/2" 12 pt
    123 7/32" 12pt 131 9/16" 12 pt
    124 1/4" 6 pt 132 5/8" 12 pt
    125 9/32" 6 pt 133 11/16" 12 pt
    126 5/16" 12 pt 134 3/4" 12 pt
    127 11/32" 12pt

    Metric

    Model Size Pt Size Model Size Pt Size
    313 5 mm 6 pt 154 10 mm 12 pt
    150 6 mm 12 pt 155 11 mm 12 pt
    151 7 mm 12pt 156 12 mm 12 pt
    152 8 mm 12 pt 157 13 mm 12pt
    153 9 mm 12 pt 137 17 mm 12 pt

    line

    Flare End

    American

    Model Size Model Size
    188 1/4" 190 9/16"
    189 5/16" 320 11/16"
    187 3/8" 235 3/4"
    553 7/16" 321 13/16"
    198 1/2"

    Metric

    Model Size Model Size
    232 13 mm 355 17 mm
    194 15 mm 298 19 mm

    line

    Hex Key

    American

    Model Size Model Size
    175 0.05" 167 5/32"
    174 1/16" 168 3/16"
    162 5/64" 169 7/32"
    163 3/32" 170 1/4"
    164 7/64" 171 3/8"
    165 1/8" 172 7/16"
    166 9/64" 173 3/4"

    Metric

    Model Size Model Size
    236 1.5 mm 184 3.5 mm
    181 2 mm 185 4 mm
    182 2.5 mm 186 5 mm
    183 3 mm


    line
    Downloads
    line

    Mountz TBIH Break-Over Torque Wrench with Interchangeable Head - Instruction Manual
    Mountz TBIH Break-Over Torque Wrench with Interchangeable Head - Data Sheet
