Tramex FBSK5.1 Feedback Datalogger Starter Kit

See More Tramex Moisture Meters

Tramex FBSK5.1 Feedback Datalogger Starter Kit

See More Tramex Moisture Meters
Price:
$415.00
    warrenty

    Product Description
    Bluetooth BLE enabled for use with mobile devices
    With built-in Ambient RH + Temperature sensor; Plug-in RH + Temperature Sensor (optional); Contact Temperature Probe (optional) providing the best available accuracy tolerances of 1.5%RH & 0.1ºF.

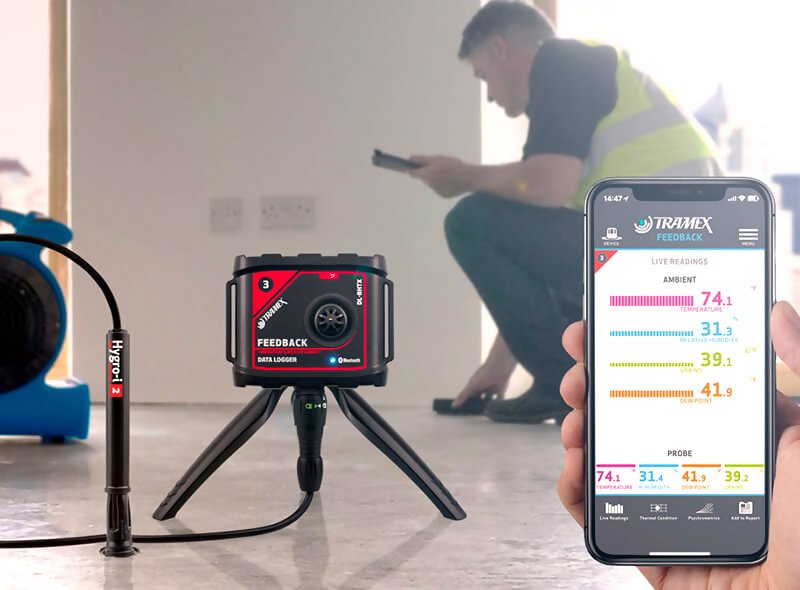

    The Tramex FBSK5.1 Feedback Datalogger Starter Kit has been designed and developed by Tramex for professionals who depend on accurate, reliable readings using the very best, state of the art technology and performing ASTM F2170. The Feedback DataLogger and App log up to 100,000 data point entries for relative humidity, temperature, dew point and grains per pound, transmitted wirelessly via Bluetooth BLE technology to your mobile device. On the App you can visualize Live Readings, Thermal Conditions and Psychrometric Charts, as well as creating and exporting spreadsheets, charts and reports. The Tramex Feedback DataLogger requires the Tramex Feedback Data Logger App and a compatible iOS or Android mobile device.


    line

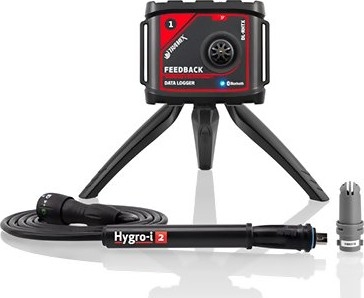

    Kit Contents
    line


    line
    Features
    line

    • Bluetooth BLE enabled for use with mobile devices.
    • Up to 100,000 data point entries possible.
    • Instant set up and start modes. Used to perform ASTM F2170.
    • Ambient and In-situ RH and temperature logging
    • Intuitive and instructive APP interface.
    • Adjustable interactive chart, spreadsheet, report and easy-export functions.
    • Connectivity up to 165ft (50 meters) for highly accessible data downloads


    line
    Specifications
    line

    With built-in Ambient RH + Temperature sensor; Plug-in RH + Temperature Sensor (optional); Contact Temperature Probe (optional) providing the best available accuracy tolerances of 1.5%RH & 0.1ºF.


    Size3.94” x 3.54” x 1.38” (100mm x 90mm x35mm)
    Weight3.53oz (100g)
    ConstructionABS enclosure
    Power1 x AA type battery 1.5 Volt
    Memory100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
    Logging RateLogger interval adjustable between 5 minutes and 1 hour
    Transmission RangeUp to 165ft (50m) line-of-sight
    BluetoothBLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising
    IncludedWall Mounting and Tripod Stand
    Supported measurements
    Ambient Relative HumidityTemperature, Dew point, Grains per pound
    In Situ Relative HumidityTemperature, Dew point, Grains per pound (with optional plug-in RH Probe)
    Contact TemperatureEstimated contact RH, Ambient Dew Point, Contact Delta Temperature (with optional contact Temperature Probe)
    Psychrometric chart showing Relative HumiditySpecific Volume, Wet Bulb Temperature, Dry Bulb Temperature, Enthalpy, Humidity Ratio, Dew Point
    Relative humidity sensor specifications
    Range0 to 100%RH
    Accuracy±1.5%RH
    Range 0% to 80%RH ±2.0%RH
    Range 80% to 99%RH (@ 77ºF (25ºC))
    Resolution0.1% over the complete range
    Drift<0.25%RH per year
    Temperature sensor specifications
    Range-40ºF to 257ºF (-40ºC to 125ºC)
    Accuracy±0.1ºF Range 68ºF to 140ºF (±0.1 °C Range 20°C to 60°C)
    Sensor ProtectionPTFE Film protects sensor opening from water & dust
    Drift<0.04ºF (0.03ºC) per year
    Contact temperature probe
    UnitsºF (ºC)
    Temperature Range-20°F to +175°F (-30°C to +80°C)
    Accuracy±0.9ºF from 14ºF to 185ºF (±0.5°C from -10°C to +85°C)
    Resolution0.1% over the complete range
    Battery
    Power supply1 x AA type battery 1.5 Volt
    Battery lifeOver 1 year based on logging intervals of 5mins, using an alkaline battery with a nominal voltage of 1.5V as supplied


    line
    Related Products
    line

    Tramex RHHL Hygro-i Hole Liners and Caps

    • Tramex Hygro-i Hole Liners and Caps for use with Tramex Hygro-i2® relative humidity sensors. To perform BS8201, 8203, 5325 in situ RH testing of concrete floors and slabs
    related

    line

    Tramex Hygro-i2 Relative Humidity Probe

    • Reusable Hygro-i2 ® Relative Humidity sensors prove to be the lowest cost per ASTM F2170 test
    related

    line

    Tramex RHIE2 Electronic Interface Cable

    • Reusable Hygro-i2 ® Relative Humidity sensors prove to be the lowest cost per ASTM F2170 test
    related

    line

    Tramex AP-F2170 ASTM F2170 Accessory Pack

    • Accessory Pack for RH testing
    • The AP-F2170-B for use with the: CMEX5 and DL-RHTX
    • The AP-F2170 for use with the: MRH3
    related


    line
    Downloads
    line

    Tramex FBSK5.1 Feedback Datalogger Starter Kit - Data Sheet
    Tramex FBSK5.1 Feedback Datalogger Starter Kit - Quick Guide
    Tramex Meters App - Getting Started & Moisture Mapping
    Tramex Meters App - Visualizing, Photographing and Geo-tagging
    Accessories for Tramex Moisture Meters - Online Catalog
