This product has been discontinued

Product Description
This product has been replaced by the Tramex ME5
Measurement method:Non-destructive moisture measurement, 1" (25 mm) signal penetration depth
Display: Analog Meter

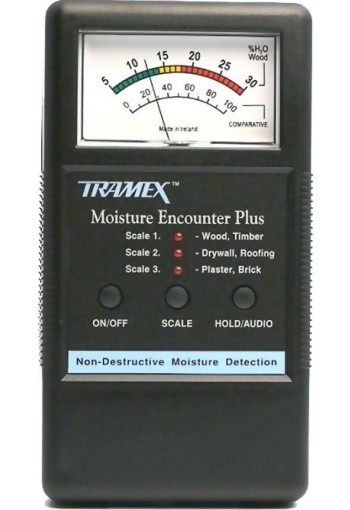

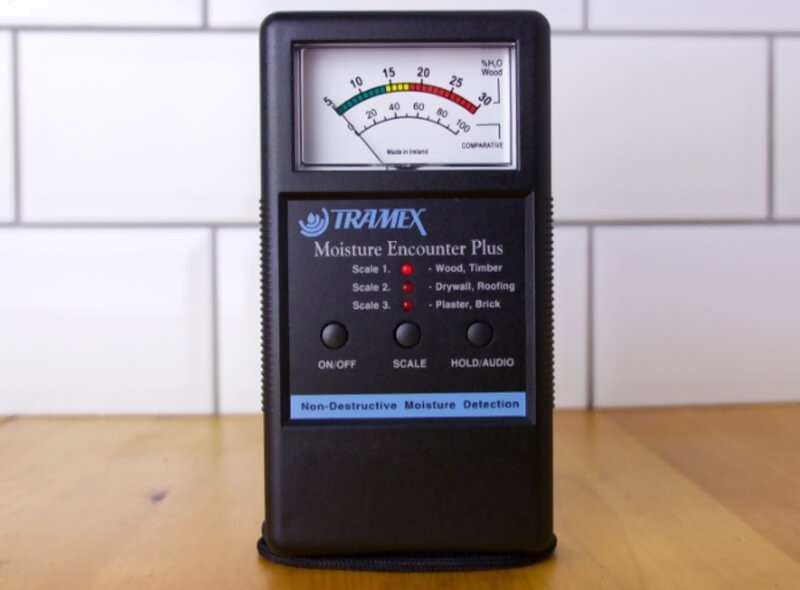

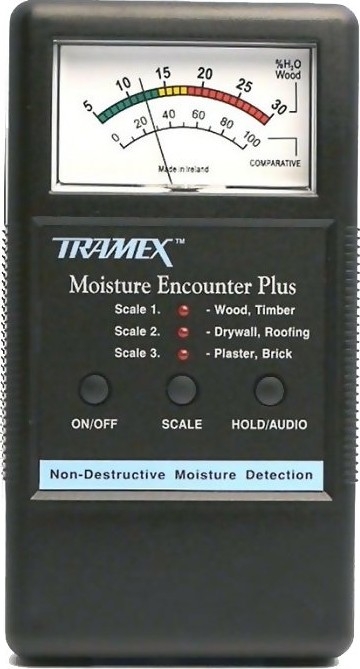

The Tramex MEP Moisture Encounter Plus is a non-destructive overall building inspection moisture meter based on Impedance measurement which has applications for numerous industries. It has many unique features that make moisture measurement and evaluation fast, precise and versatile.

The Tramex MEP detects and evaluates moisture conditions within various building materials such as Wood, Timber, Drywall, Roofing, Plaster & Brick by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture in the material under test. The Tramex MEP Moisture Encounter Plus determines the strength of the current and converts this to a moisture content value, displaying it on a large clear analog dial.

Used and trusted by generations of professionals worldwide for the purpose of:

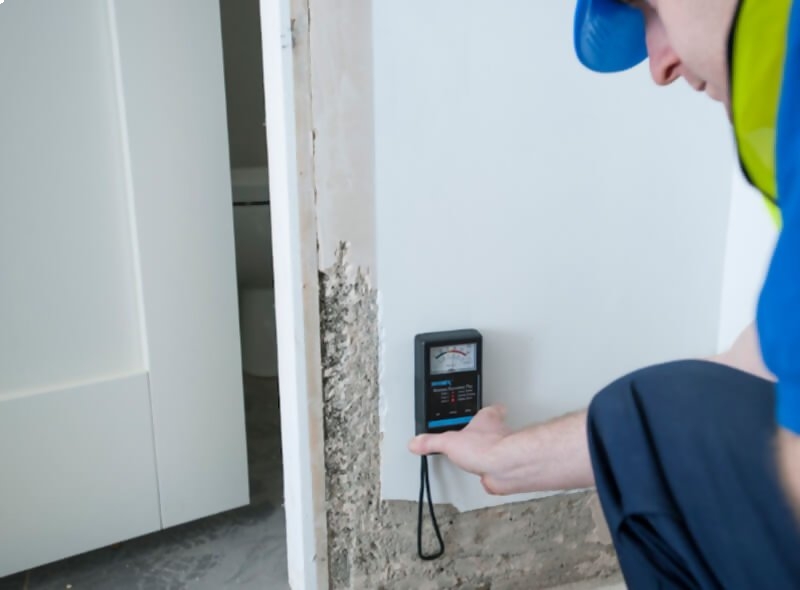

  • Locating moisture related problems within and behind a variety of building materials in the building envelope.

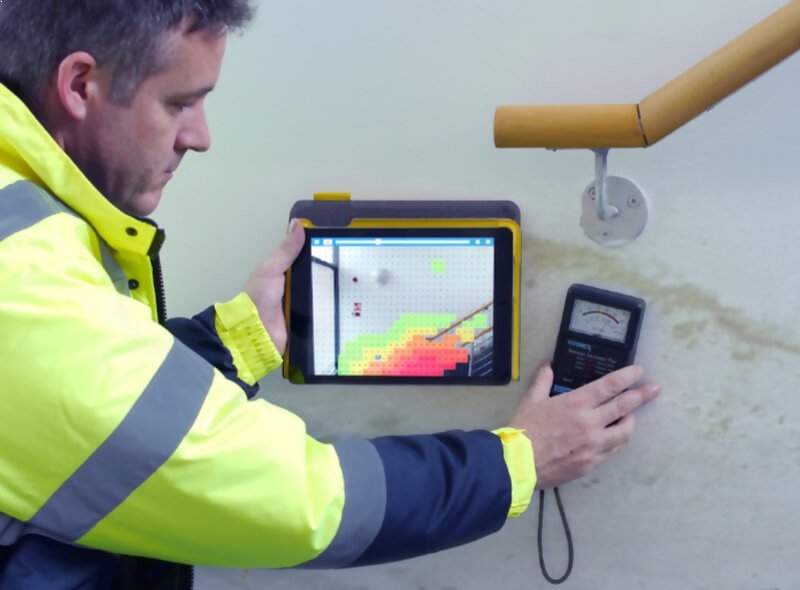

  • Mapping the extent of moisture damage caused to buildings.
  • Monitoring progressive drying conditions in the drying process of building materials and surfaces.


line
Kit Contents
line

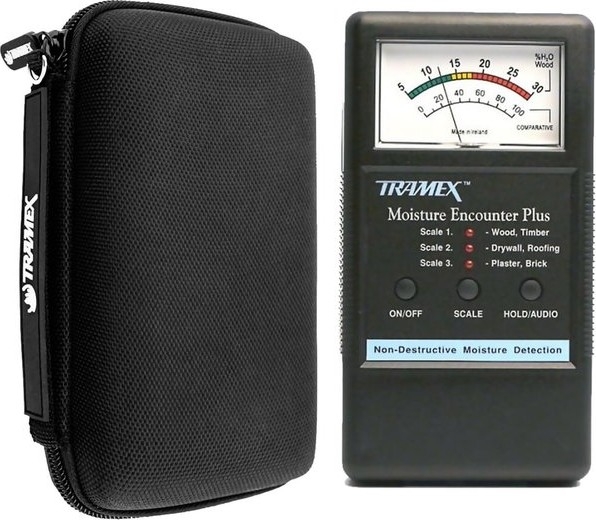

The Tramex MEP Moisture Encounter Plus Moisture Meter includes everything needed for testing:

  • Tramex MEP Moisture Encounter Plus Moisture Meter
  • Tramex Single Meter Case
  • 9 V PP3
  • Operating Instructions
  • Certificate of Calibration
  • One (1) year warranty


line
Features
line

  • Wide range of readings for wood from 5% to 30%.
  • Deep signal penetration to over 1" ( 25mm) into the materials being tested without the need to damage the surface. Signal penetration depends on material being tested and meter setting.
  • Three ranges of sensitivity: Wood & Timber / Drywall & Roofing / Plaster & Brick – making it ideal for testing moisture conditions in various building materials.
  • Detects moisture through paint, wall coatings, drywall, ceramic tiles, floor coverings, wood, roof coverings and ceiling tiles.
  • High moisture audio warning tone.


line
Specifications
line

Size6" x 3.5" x 1.5" (150mm x 85mm x 38mm)
Weight7.7oz (220g)
ConstructionABS Body Power: 9 volt PP3
Battery included
DisplayAnalog Depth of penetration: up to 1¼"(30mm)(in wood, drywall)
Wood Moisture Content5 to 30%
Reference scale for building materials0 to 100
