Add more Cloud Sensors to your monitoring project
Ambient relative humidity and temperature
Remote Environmental Monitoring System
The Tramex AP-TREMS Remote Environmental Monitoring System Accessory Pack adds more Cloud Sensors to your TREMS project.

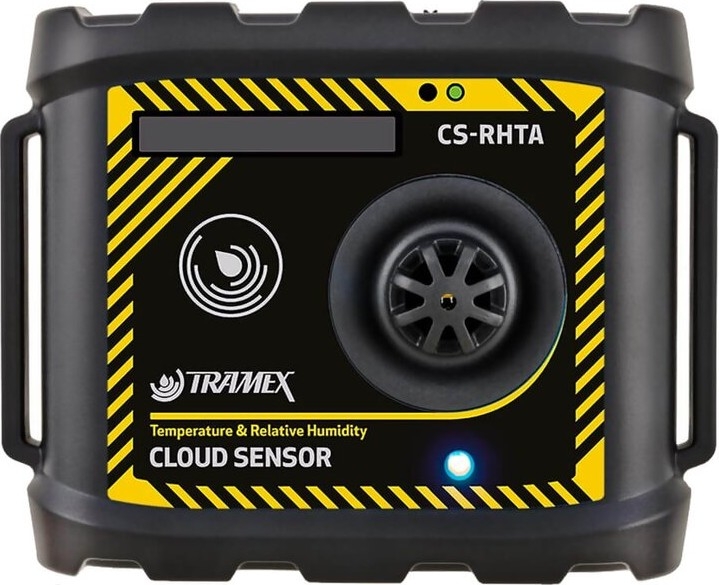

The Tramex AP-TREMS Remote Environmental Monitoring System Accessory Pack comprises CS-RHTA Tramex Cloud Sensors. Multiple Sensors can be used with one Tramex Cloud Station. Registration and on-site set-up is simple using a QR code check-in procedure.

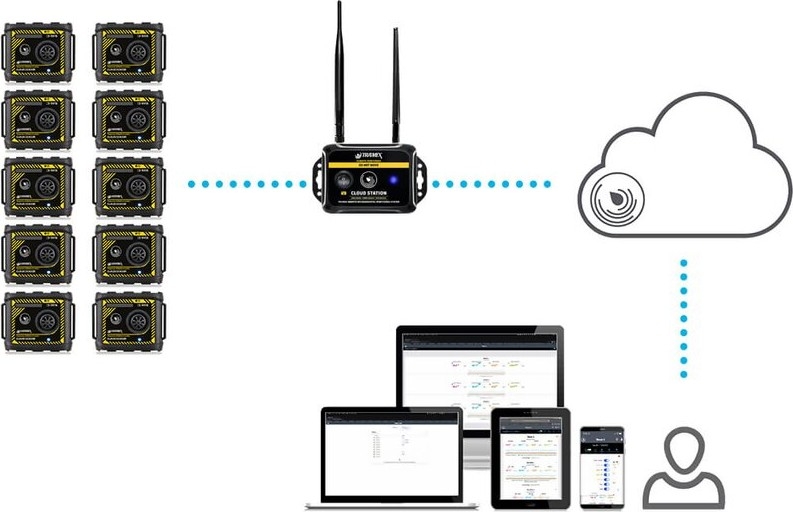

The on-site Sensors, with battery life of up to 15 years, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound / grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor status from any browser.
There are no subscription fees and there is free data storage for two years with the Tramex Remote Environmental Monitoring System.
Kit Contents

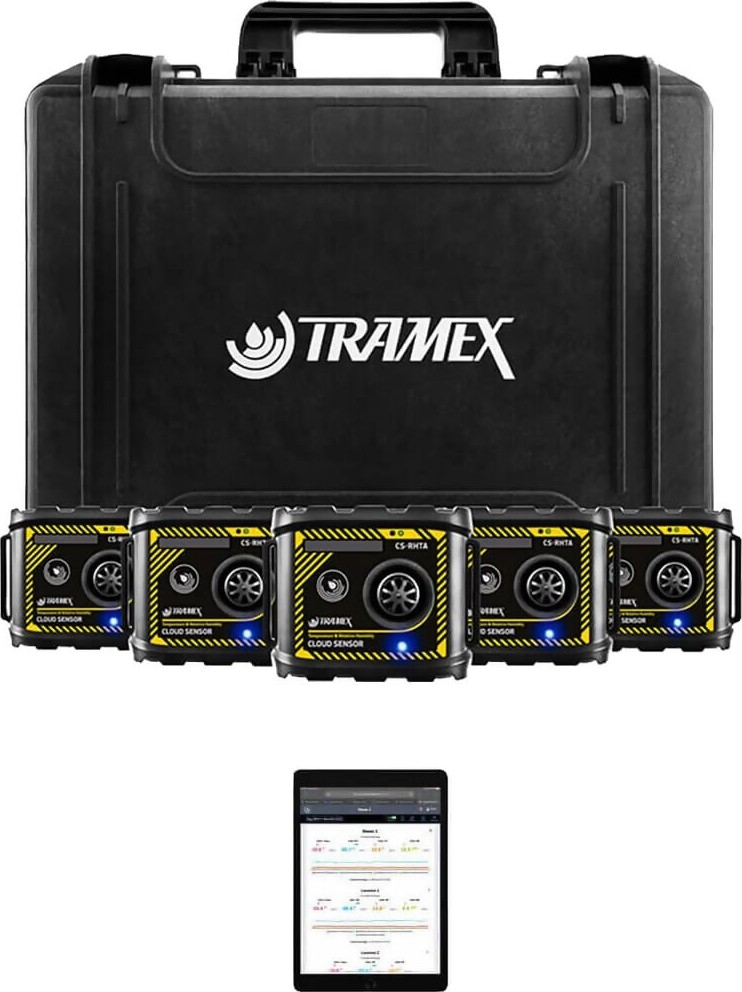

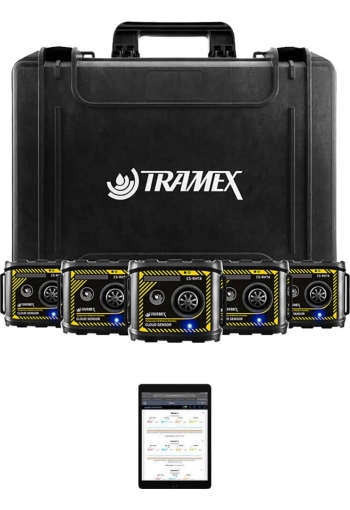

Tramex AP-TREMS-5 Remote Environmental Monitoring System Accessory Pack- 5 x CS-RHTA Tramex Cloud Sensors
- Tramex Cloud Software Monitoring platform (Tablet Not Included)
- 10 x CS-RHTA Tramex Cloud Sensors
- Tramex Cloud Software Monitoring platform (Tablet Not Included)
Features
- Ambient relative humidity and temperature
- Remote Environmental Monitoring System
Specifications
Temperature Sensor Specifications
| Exeptional Accuracy | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Range | -40ºC to 125ºC (-40ºF to 257ºF) |
| Sensor Protection | PTFE Film protects sensor opening from water & dust |
| Drift | <0.03ºC (0.04ºF) per year |
Relative Humidity Sensor Specifications
| Exceptional Accuracy | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Range | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | < 0.25%RH per year |
Sensor Specifications
| Transmission Range | Over 3kms line-of-sight |
| Communication Frequency | Multiple readings per hour. |
| Identification | Items individually coded for ease of install and logging identification. |
| Size | 100mm x 90mm x35mm (3.94” x 3.54” x 1.38”) |
| Weight | 100g (3.53oz) |
| Construction | ABS enclosure |
| Power | Built in CR123A battery with up to 15 year lifespan |
| Included | Wall Mounting |
