Tramex FIK5.1 Flooring Inspection Kit

See More Flooring Moisture Inspection Kits

Tramex FIK5.1 Flooring Inspection Kit

See More Flooring Moisture Inspection Kits
This product has been discontinued

Product Description
This product has been replaced by the Tramex FIK

Industry:  Flooring Inspection, Flooring Installation
Measuring Range: Moisture Content of Concrete (NDT): 0 to 6.9 % (moisture by weight), Moisture Content using Pin Probe: 7- 40% using pin-type wood probe, Relative Humidity: 0 to 99%

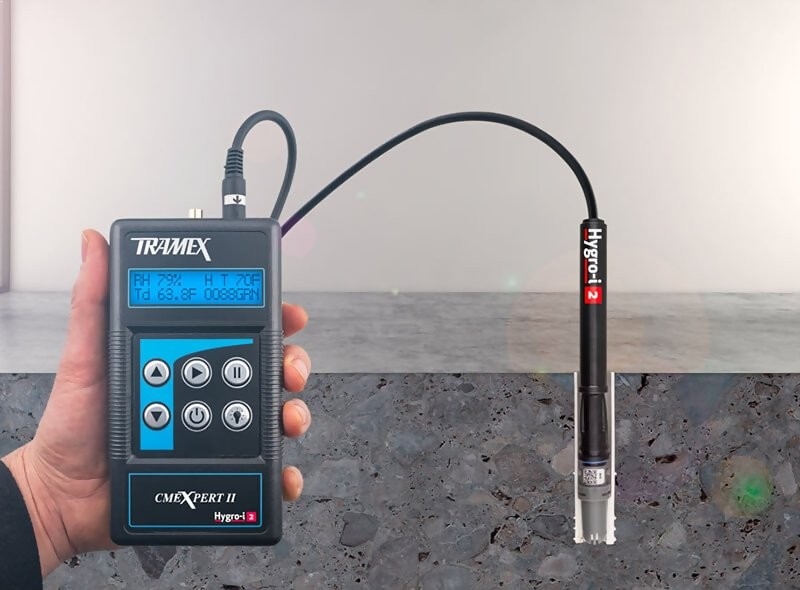

The Tramex FIK5.1 Flooring Inspection Kit is used for moisture testing of concrete and wood flooring to ASTM and other international standards. The Tramex FIK5.1 features the Tramex CMEX II digital concrete moisture meter for testing per ASTM F2659 and 3 best in class reusable Hygro-i2 ® relative humidity probes for testing relative humidity, temperature and dew point in the environment, or performing ASTM F2170 (or Hood Method with optional Hood) for relative humidity readings in concrete slabs. An infrared surface thermometer is included for testing surface temperatures and can be used in conjunction with the Hygro-i2 ® probe to monitor dew point conditions. A heavy-duty hammer pin-probe allows the user to measure the moisture content in wood. Calibration check salts are included in the Flooring Inspection Kit, which comes in a protective heavy-duty carrying case with die-cut foam lining.


line

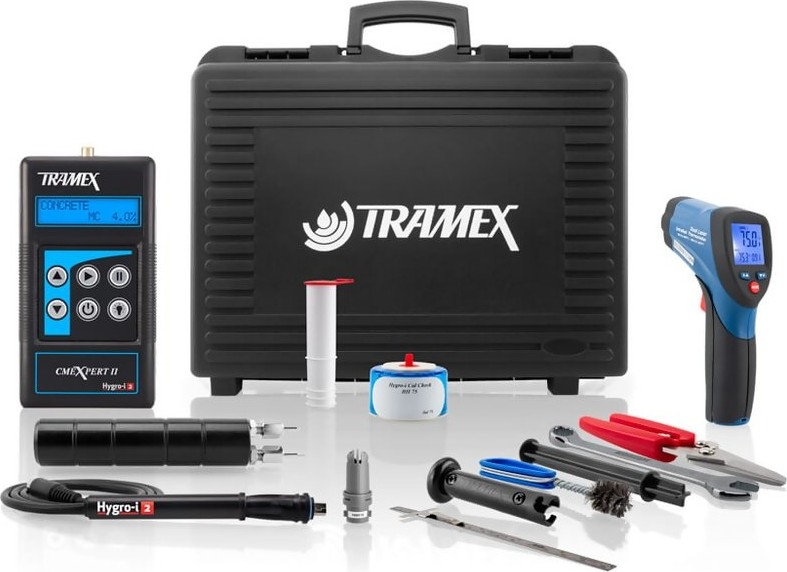

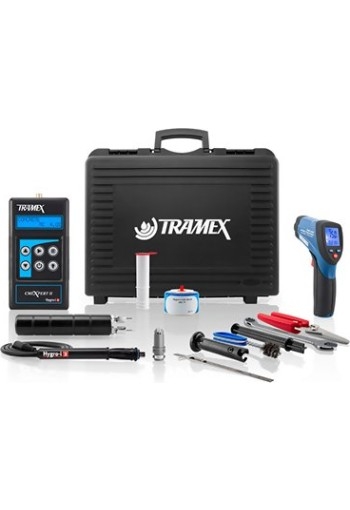

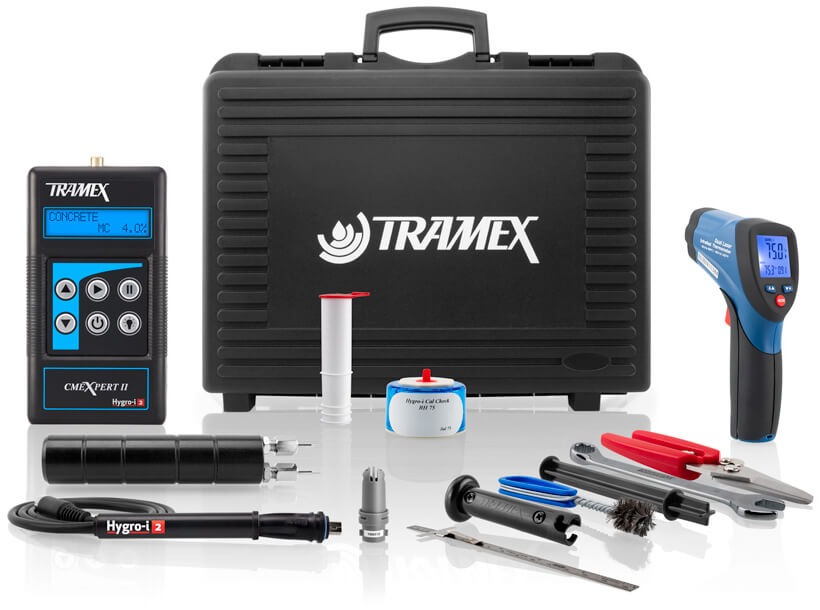

Kit Contents
line

  • CMEX II - concrete meter
  • 3 x Hygro-i2 ® Relative Humidity probe
  • Heavy-duty pin-type wood probe
  • 1 x SAL75 (Calibration Check Salts)

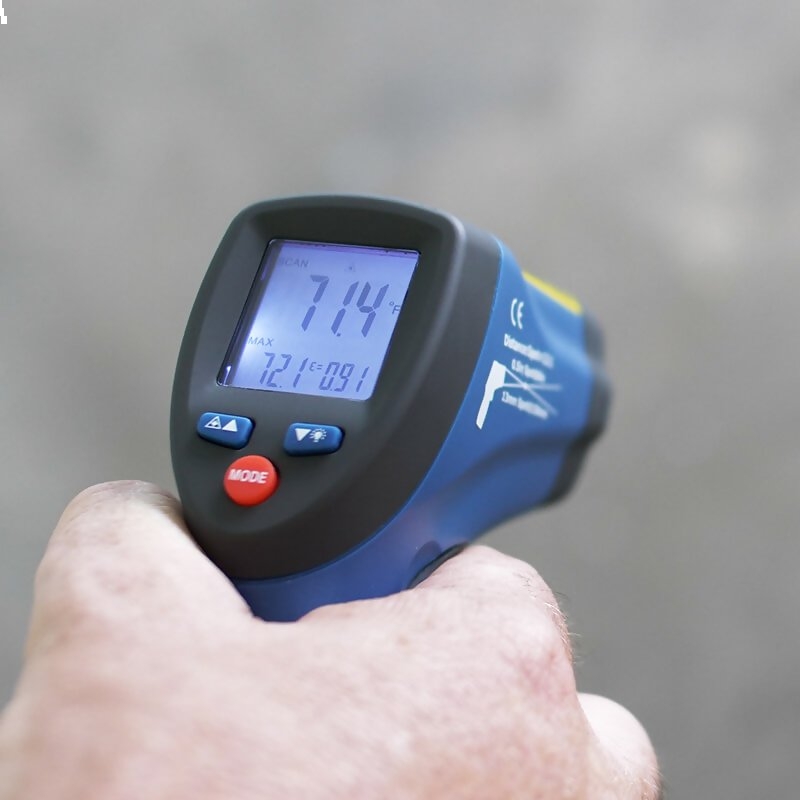

  • Infrared thermometer
  • 12 x Hole Liners


line
Features
line

  • Instant concrete moisture content test from 0 - 6.9% with CMEX II to ASTM F2659.
  • Fastest, most reliable, Hygro-i2 ® RH probe for testing to ASTM F2170.
  • Perform multiple tests simultaneously.
  • Re-usable Hygro-i2 ® Relative Humidity probes prove to be the lowest cost per ASTM F2170.
  • Test ambient site conditions of Temperature, RH, Dew Point & Mixing Ratio.
  • Backlit display for ease of reading in low level lighting.


line
Specifications
line

Size16.9" x 13.6" x 5.1" (100%mm x 345mm x 130mm)
Weight7.2lbs (3.3kg)
Power2 x 9 volt PP3
BatteryIncluded
Measuring Range
Depth of penetration in concrete(NDT*) approx. ¾" (20 mm)
Moisture content for concrete(NDT*) 0 to 6.9 %
Comparative for Gypsum floor screed(NDT*) 0 to 10
Reference scale(NDT*) 0 to 100
Moisture Content in wood using Pin Probe 7 to 40%
Relative Humidity with Hygro-i2 ® probe0 to 99%
Humidity accuracy0% to 99%RH +/- 2% @ 25°C / 77°F
*NDT - Non-destructive Test
