This product has been replaced by the Mark-10 TSFM-DC
Mark-10 TSFM500 Motorized Test Stand with FORCE CONTROL
Force Gauge sold Separately
1100lb Capacity

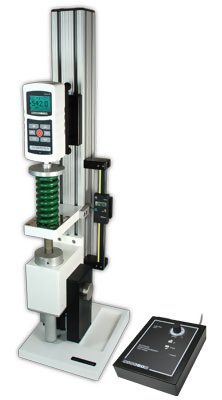

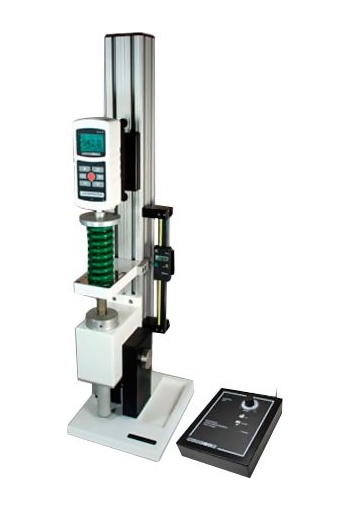

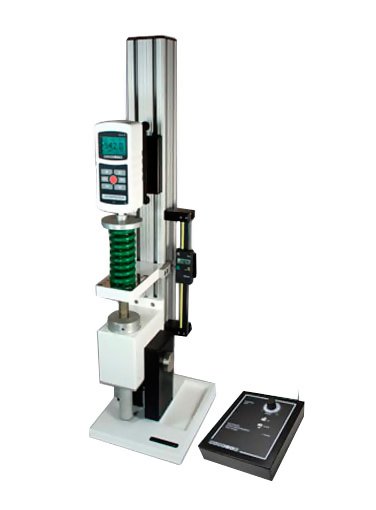

TSFM500 - Vertical Stand

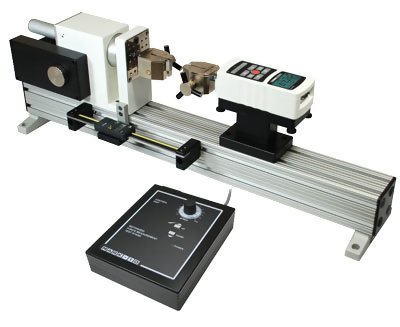

TSFM500H - Horizontal Stand The TSFM500 is designed for compression and tension testing of springs, packaging, metals, fabrics, and other items requiring up to 500 lb of force. Generous clearance and throat depth accommodate a broad range of sample shapes and sizes. The stand features a remote control unit for added safety during testing. The TSFM500’s durable and rigid column minimizes bend, making it particularly well suited for precision spring testing. The operator can select from a speed range of 0.2 – 5.5 in/min. Other features include a manual fine adjustment knob and a stepper motor that prevents speed variation with load, making testing more precise and repeatable.
Photo Gallery
Features
- Maximum force: 500 lb [2200 N]
- Mounting holes for bench mounting
- Speed range: 0.2 - 5.5 in/min [5 - 140 mm/min]
- Base may be removed for alternative mounting
- Remote control console with a 3' [1 M] cable
- Available in vertical and horizontal orientations.
- Maximum travel: 4" [102 mm]
- Compatible Gagues: Series 3, Series 5.

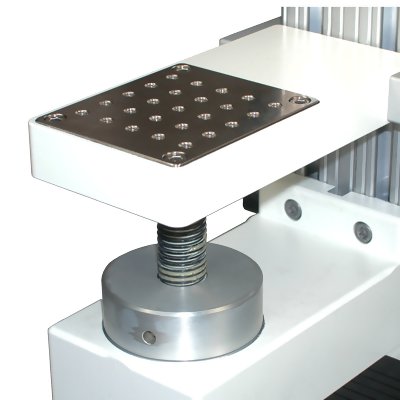

- Loading table with 25 #10-32 UNF holes for fixture mounting

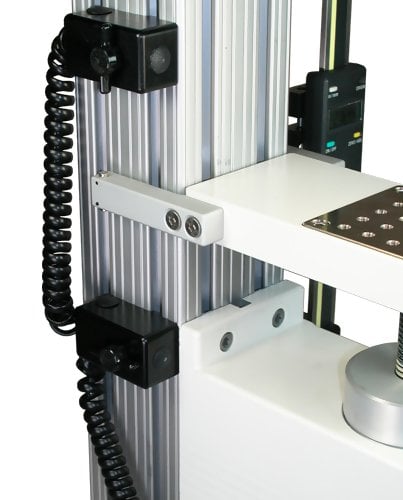

- Includes adjustable Limit Switches
- Manual travel knob
Specifications
| Capacity | 500lbs (2.2Kn) | | Stroke | 4.00" (102 mm) | | Speed Range | 0.2 - 5.5 in/min (5 - 140 mm/min) | | Speed accuracy | ±0.2% of setting, ±0% variation with load | | Dimensions | Click here to download | | Weight | Vertical Model: 36 lb (16.3 kg)
Horizontal Model: 30 lb (13.6 kg) | | Compatible Gauges | Series 3, Series 5. | | Warranty | 3 years |
