Western Instruments WE-7 Compact AC/DC Magnetic Yoke

See More Magnetic Yokes

Western Instruments WE-7 Compact AC/DC Magnetic Yoke

See More Magnetic Yokes
Price:
$830.00 - $885.00
    warrenty

    Product Description

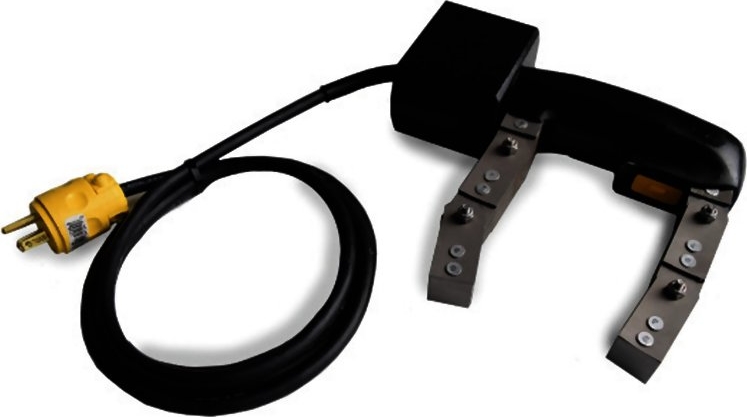

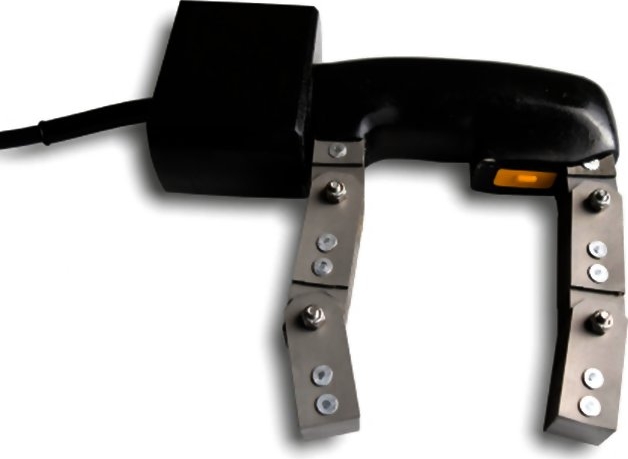

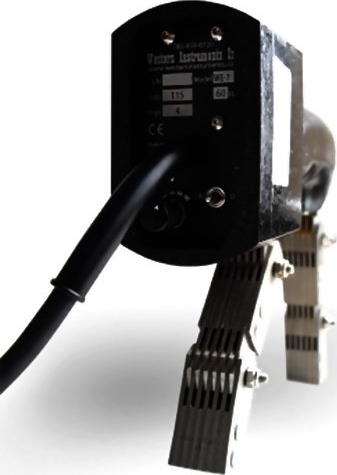

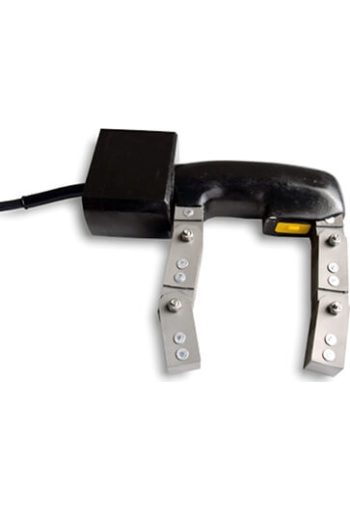

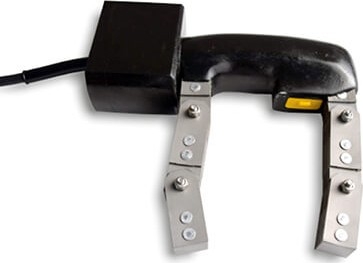

    Western Instruments WE-7 Compact AC/DC Magnetic Yoke (Variable DC)
    Compact, Lightweight, Comfortable ergonomic grip, Grounded solid state switch, Sealed Switch cover, Rugged strain relief
    Optional UL/CSA Approval
    AC or DC Inspection Fields

    The Western Instruments WE-7 Compact AC/DC Magnetic Yoke is the world's' lightest and most compact AC/DC Yoke. The WE-7 is equipped with a simple AC or DC Selector Switch. This MPI Yoke has a 6 position rotary switch for AC or 5 preset DC intensities, making the only AC/DC Yoke able to provide linear DC adjustments.

    The Western Instruments WE-7 Compact AC/DC Magnetic Yoke is based on the industry standard for Yoke construction, however has Western Instruments’ Ruggedness and Quality built in. The WE-7 utilizes a standard micro-switch for activation, but the switch cover is our exclusive Slip in design. Like all WE-Series Yokes, the Power Cord Strain Relief is the toughest in the business.

    The ergonomically designed housing combined with its light weight, reduces operator fatigue and strain, for more effective inspections. The compact design also allows the WE-7 to fit into confined spaces better than any other AC/DC Yoke on the market. The urethane rubber housing provides superior durability in rugged environments, so the WE-7 is suitable for the high Arctic or the Sahara desert.

    The WE-7 lifts over 10 pounds (4.5kg) in AC Mode and lifts over 50 Pounds (23kg) in DC Mode, exceeding ASTM or ASME Specifications. The WE-7 is equipped with infinitely variable DC output, so depending on the workpiece size, the operator doesn’t have to risk saturating a small part. The AC/DC Selector Switch is equipped with a unique feedback loop, to eliminate failures due to switching between modes when the unit is activated.


    line
    Features
    line

    • Compact
    • Light Weight
    • Comfortable Ergonomic Grip
    • Grounded Solid State Switch
    • Sealed Switch Cover
    • Rugged Strain Relief
    • AC or DC Inspection Fields
    • Optional UL/CSA Approval


    line
    Specifications
    line

    Voltage115V/60Hz or 230V/50Hz
    ModelsWE-7 (115V)
    WE-7K (230V)
    Current4.0 Amps (WE-7), 2.0 Amps (WE-7K)
    Frequency50-60Hz
    Cord Length12’(3.7m), 3-18 SOOW
    LiftAC-10 pounds (4.6kg), DC-50 pounds (23kg)
    Capacity0 to 11” (0-280mm)
    FinishBlack Urethane Rubber
    Weight7.5 pounds (3.5kg)


    line
    Applications
    line

    • Automotive
    • Aerospace
    • Weld Inspection
    • Pressure Equipment
    • Piping
    • Fabrication
    • Manufacturing
    • Maintenance


    line
    Related Products
    line

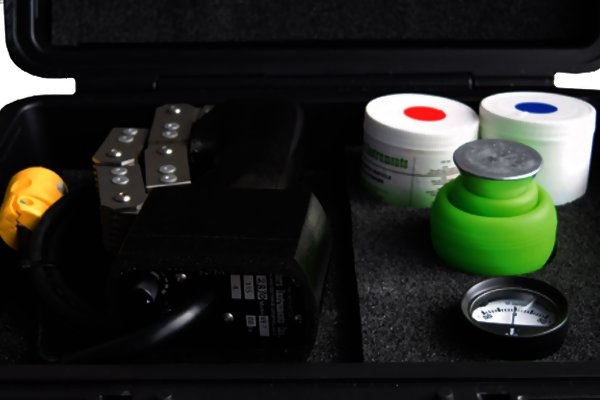

    Portable MPI Yoke Inspection Kits

    • Western Instruments' Yokes are offered in a wide variety of configurations, more than any other manufacturer of Portable Yoke Kits. No matter the need, Western's Kits are offered in Dry Method, Wet Visible Method (Black or White), or Wet Fluorescent Method. The End User simply chooses his Yoke, and his model of Kit, and they arrive in the same custom Carrying Case.
    related

    line

    Western Instruments W-PPS Portable Inverter Power Supply

    • The W-PPS (W-PPSK) is a Portable Power Supply designed to operate any of Western Instruments’ standard AC or AC/DC Yokes. The W-PPS is equipped with an appropriately sized Battery, Battery Charger, and Inverter which should be used within the parameters in the manual.
    related

    line

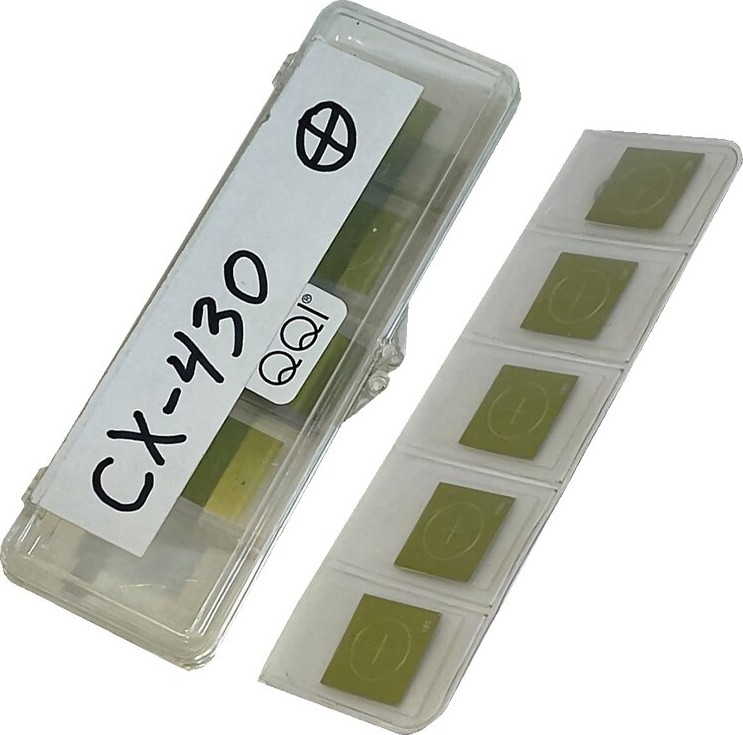

    Accessories for Western Instruments Magnetic Yokes:

    related


    line
    Downloads
    line

    Western Instruments WE-7 Compact AC/DC Magnetic Yoke - Data Sheet
    Western Instruments WE-7 Compact AC/DC Magnetic Yoke - Instruction Manual
