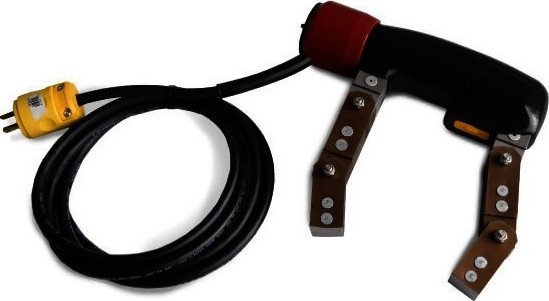

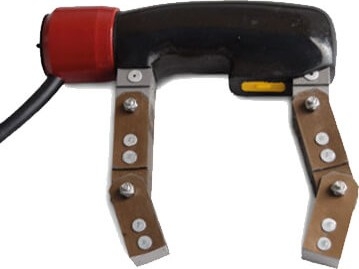

    Western Instruments WE-3HD Heavy Duty Standard AC Magnetic Yoke
    Compact, Lightweight, Comfortable Urethane Grip, Slip-in Switch Cover, Standard Micro Switch, Rugged Strain Relief, Durable & Economical
    Full current, not sealed switch with Slip-in Switch Cover

    The Western Instruments WE-3HD Heavy Duty Standard AC Magnetic Yoke is simply the most rugged, Standard type Yoke in the marketplace today. This Yoke comes with many of the features of our premium WC-Series features, while using a standard switch.

    The Western Instruments WE-3HD Heavy Duty Standard AC Magnetic Yoke is based on the industry standard for Yoke construction, however has Western Instruments’ Ruggedness and quality built in. The WE3-HD utilizes many of the standard features of competitive AC Yokes, so it is recommended for Dry Method Inspection Media, but it is better than competitive units, for Wet Method Media, due to our exclusive Slip-in Switch Cover and Rugged Strain Relief. The WE-3HD has several of the premium features of our WC-Series Yokes, such as a multi-position power cord, making it superior to any competitive AC Yoke. The WE-3HD is an economical alternative to our Premium Quality AC Yokes (W-6, WC-6, and WC-6x2), which have significant safety advantages over the WE-3HD.

    The ergonomically designed housing combined with its light weight, reduces operator fatigue and strain, for more effective inspections. The compact design and adjustable Power Cord position allows the WE-3HD to fit into confined spaces better than full size Yokes. The Urethane rubber housing provides superior durability in rugged environments, so the WE-3HD is suitable for the Big Arctic or the Sahara Desert.

    The WE-3HD lifts well over 10 lbs (4.5 Kg), exceeding ASTM or ASME Specifications for AC Yokes. Performing Magnetic Particle Inspection, with an AC field, is the fastest and easiest way to find surface discontinuities. The AC field provides maximum magnetic particle mobility, which cause Magnetic Particles to migrate quickly and congregate at defects. Demagnetization is simple with this ‘one man inspection’, the operator simply activates the Yoke while pulling it off the workpiece


    line
    Features
    line

    • Compact
    • Light Weight
    • Comfortable Urethane Grip
    • Standard Micro Switch
    • Rugged Strain Relief
    • Durable
    • Economical


    line
    Specifications
    line

    Voltage 115 and 230 VAC Nominal (12VDC)
    Models WE-3HD (115 Volt)
    WE-3HDK (230 Volt)
    Current 4.0 Amps (115V), 2 Amps (230V)
    Frequency 50-60Hz
    Cord Length 8’(2.5m), AWG3-16 SOW
    Lift 10 pounds (4.6kg) minimum
    Capacity 0 to 11” (280mm)
    Finish Black Urethane Rubber
    Weight 7.2 pounds (3.3kg)


    line
    Applications
    line

    • Automotive
    • Aerospace
    • Weld Inspection
    • Pressure Equipment
    • Piping
    • Fabrication
    • Manufacturing


    line
    Related Products
    line

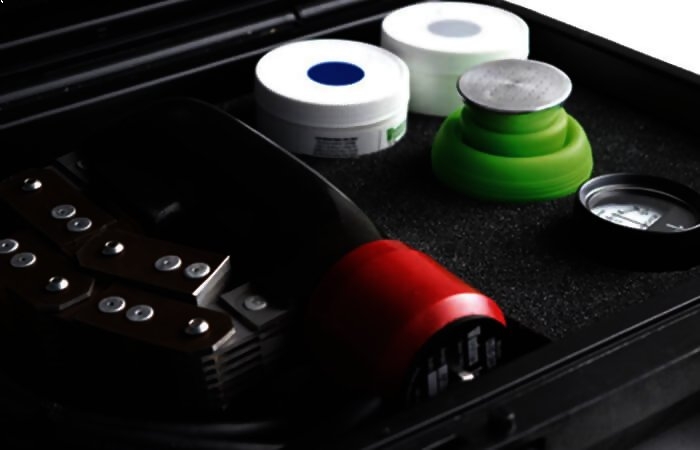

    Portable MPI Yoke Inspection Kits

    • Western Instruments' Yokes are offered in a wide variety of configurations, more than any other manufacturer of Portable Yoke Kits. No matter the need, Western's Kits are offered in Dry Method, Wet Visible Method (Black or White), or Wet Fluorescent Method. The End User simply chooses his Yoke, and his model of Kit, and they arrive in the same custom Carrying Case.
    related

    line

    Western Instruments W-PPS Portable Inverter Power Supply

    • The W-PPS (W-PPSK) is a Portable Power Supply designed to operate any of Western Instruments’ standard AC or AC/DC Yokes. The W-PPS is equipped with an appropriately sized Battery, Battery Charger, and Inverter which should be used within the parameters in the manual.
    related

    line

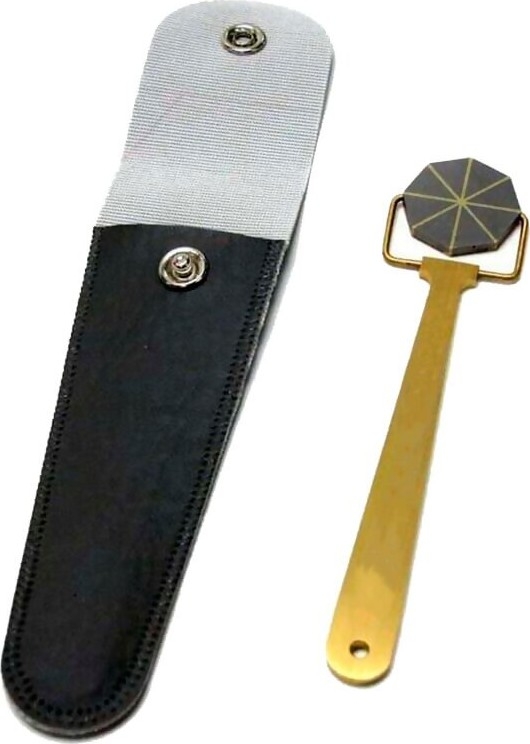

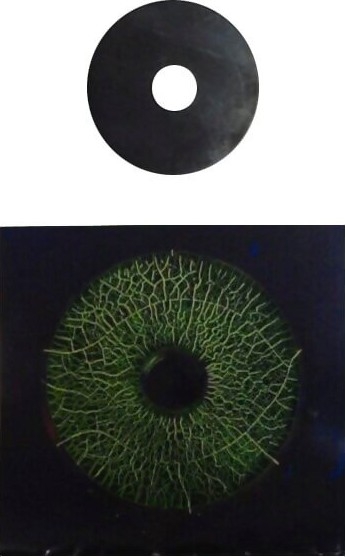

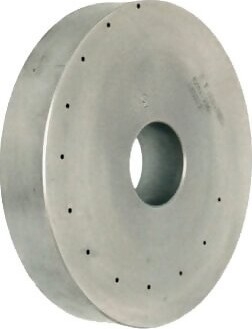

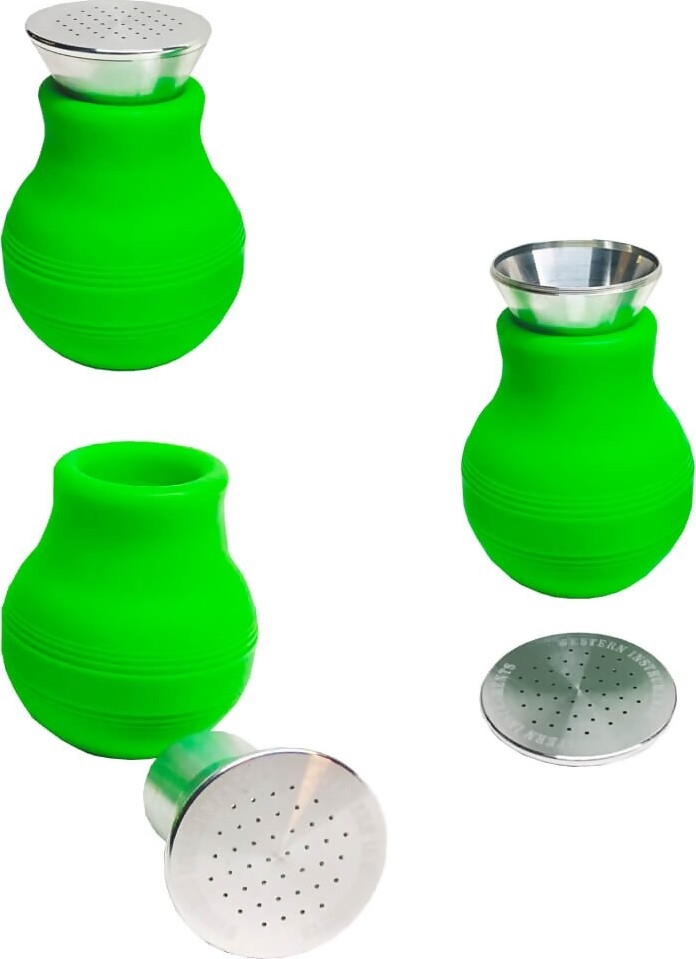

    Accessories for Western Instruments Magnetic Yokes:

    related


    line
    Downloads
    line

    Western Instruments WE-3HD Heavy Duty Standard AC Magnetic Yoke - Data Sheet
    Western Instruments WE-3HD Heavy Duty Standard AC Magnetic Yoke - Instruction Manual
