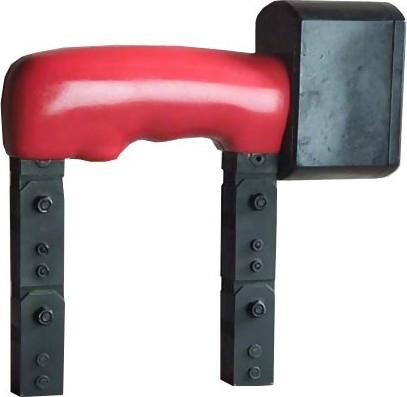

Western Instruments WC-9 Cordless Magnetic Yoke

See More Magnetic Yokes

Western Instruments WC-9 Cordless Magnetic Yoke

See More Magnetic Yokes
Price:
$1,050.00 - $1,110.00
    warrenty

    Product Description

    The Western Instruments WC-9 Cordless Magnetic Yoke represents one of the greatest technical advancements in the Portable Magnetic particle Testing Equipment Industry. It offers total operator mobility. Western Instruments' WC-9 is the only Cordless Yoke in the world.

    The Western Instruments WC-9 Cordless Magnetic Yoke uses the basic Western Instruments WC-Series Platform. This Platform design is similar to our standard W-Series Platforms, but far more compact. This construction versatility is possible through our advanced Mechanical, Electrical, and Solid State Electronics designs. These designs permit the WC-Series to use our standard low profile sealed membrane activation switch, continuing our philosophy for operator safety, as the switch has a grounding provision and conducts less than Watt of power. The urethane rubber housing provides superior durability in rugged environments.

    The ergonomically designed housing combined with its light weight, reduces operator fatigue and strain permitting better and longer inspections. The compact design allows the WC-9 to fit into confined spaces better than our full size W-Series Models. Combined with our Universal Articulating Pole Pieces, so the WC-9 can fit almost any configuration of work piece. All W-Series Yokes have more height between the operator's hand and the work piece, which means faster inspection due to a larger view of the target area.

    The WC-9 represents one of the greatest technical advancements, in the Portable Magnetic Particle Testing Equipment Industry, with total operator mobility. The WC-9 draws 0.5 Amps, so the 13.2 Volt Battery (1.5 Amp Hours) provides a full 2 hours of continuous operation, translating (*) into a typical working day for most operators. The individual cells of the WC-9's Battery Pack are not 'potted', so the Pack can be rebuilt.

    The WC-9 meets industry specifications, lifting 50 Pounds (23Kg), for DC Yokes, however the Pulsing DC Field (125Hz) provides better particle mobility than Full Wave DC fields. The WC-9 is supplied with an Battery Voltage Meter, to ensure Lift Capacity

    The WC-9 is designed for operation in Class I, Division 2 Environments, however battery testing and charging is done in a 'safe zone'. Western Instruments Cordless Yokes (WC-9, W-9) are the only Yokes of their type in the World!

    *Based on Western Instruments Battery Duration Tests


    line
    Features
    line

    • Complete Mobility
    • Compact
    • Light Weight
    • Comfortable Ergonomic Grip
    • Grounded Switch
    • Powerful Lift
    • Urethane Rubber Encapsulant
    • Optional UL/CSA Approval


    line
    Specifications
    line

    ModelWC-9
    VoltageBattery -13.2 VDC
    Charger
     -115VAC, 50-60Hz
    AmperageYoke - 0.5 Amps @ 13.2 VDC
    Charger
     - 0.2 Amps @ 115VAC
    Capacity0 to 11” (280mm)
    Lift50 Pounds (23Kg) Min
    Weight7.8 Pounds (3.5Kg)
    *Export Units supplied with 115 to 230 VAC Converter


    line
    Applications
    line

    • Complete Mobility
    • Compact
    • Light Weight
    • Comfortable Ergonomic Grip
    • Grounded Switch
    • Powerful Lift
    • Urethane Rubber Encapsulant
    • Optional UL/CSA Approval


    line
    Related Products
    line

    Portable MPI Yoke Inspection Kits

    • Western Instruments' Yokes are offered in a wide variety of configurations, more than any other manufacturer of Portable Yoke Kits. No matter the need, Western's Kits are offered in Dry Method, Wet Visible Method (Black or White), or Wet Fluorescent Method. The End User simply chooses his Yoke, and his model of Kit, and they arrive in the same custom Carrying Case.
    related

    line

    Western Instruments W-PPS Portable Inverter Power Supply

    • The W-PPS (W-PPSK) is a Portable Power Supply designed to operate any of Western Instruments’ standard AC or AC/DC Yokes. The W-PPS is equipped with an appropriately sized Battery, Battery Charger, and Inverter which should be used within the parameters in the manual.
    related

    line

    Accessories for Western Instruments Magnetic Yokes:

    related


    line
    Downloads
    line

    Western Instruments WC-9 Cordless Magnetic Yoke - Data Sheet
    Western Instruments WC-9 Cordless Magnetic Yoke - Instruction Manual
