This product has been discontinued

Product Description

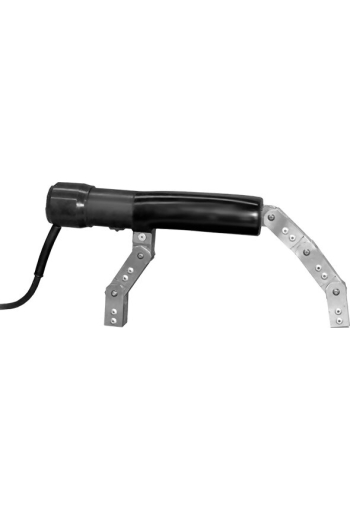

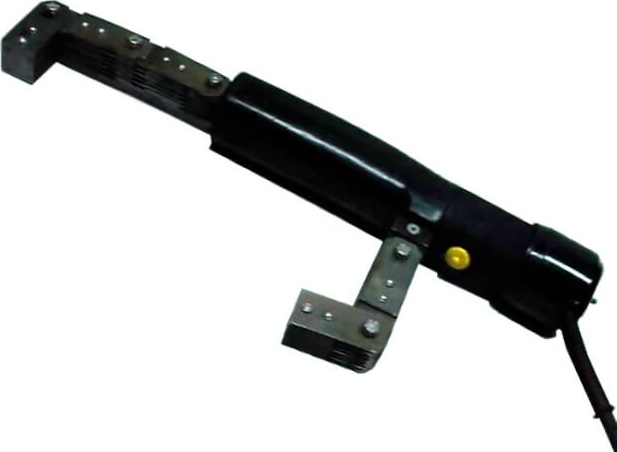

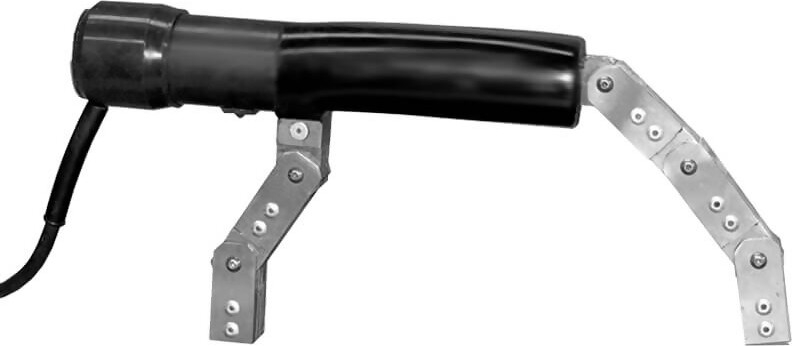

Western Instruments W-6CS AC Cavity Yoke
Reliable Pole Piece positioning, to ensure a beneficial inspection field.
Better and Faster Access for directing the Wet Method Media to the Target Area.

The Western Instruments W-6CS AC Cavity Yoke has been developed due to customer requests for safer and faster Wet Method Inspection in tight spaces or unusual work piece configurations. The W-6CS has many of the unique features of both our WC and WE-Series Yokes, such as the unique Power Cord Strain Relief and Urethane Housing, Safety Features, and Ruggedness.

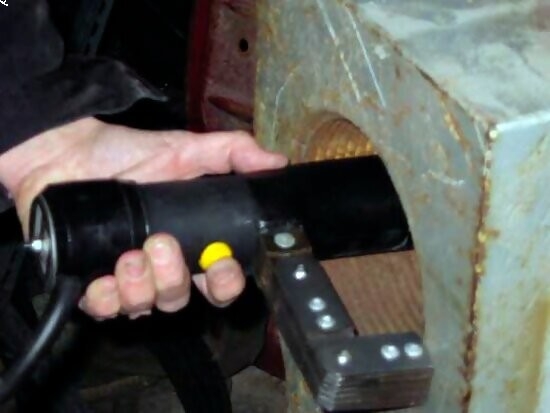

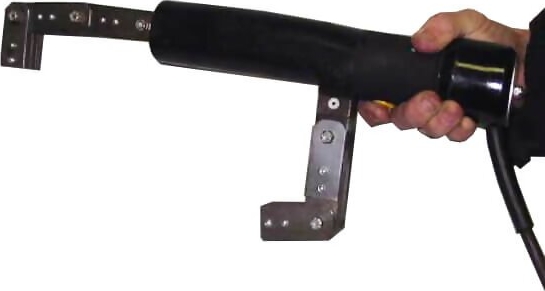

When operators were inspecting tight cavities with an Active AC Field, they were filling this space with their Yoke and Hand to keep the Yoke energized while trying to spray the Wet Method Media. The Western Instruments W-6CS AC Cavity Yoke permits the Yoke to be activated without the Hand (and the Switch) being in the small space.

The Western Instruments W-6CS AC Cavity Yoke is intended to inspect; Triplex Pump Housings, Centrifugal Pump Housings, ID Threads (Box Ends), Cylinder Bores, Bores in Castings, Turbine Blades, Pressure Equipment Nozzles, and Complex Structural Steel for Stress Cracks or Weld Inspection.


line
Features
line

  • Reliable Pole Piece positioning, to ensure a beneficial inspection field.
  • Better and Faster Access for directing the Wet Method Media to the Target Area. Allowing the operator to see where he is applying his bath.

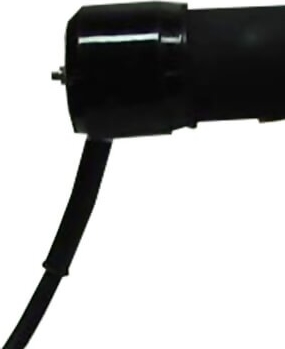

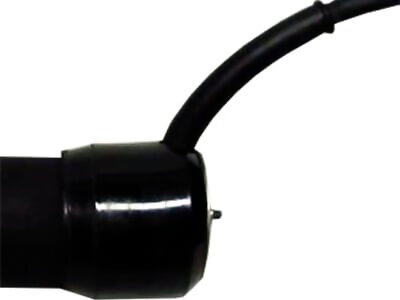

  • Removes the Switch from the Target Area, drastically reducing the potential for electrical shocks because the Switch area remains dry


line
Specifications
line

ModelW-6CS W-6CSK
Voltage115VAC @ 60 Hz230VAC @ 50 Hz
Current4.0 Amps @ 115 Volts2 Amps @ 230 Volts
Capacity<10 Pounds (4.5 Kg)
Pole Spacing0 – 15” (0 – 380mm)


line
Related Products
line

Portable MPI Yoke Inspection Kits

  • Western Instruments' Yokes are offered in a wide variety of configurations, more than any other manufacturer of Portable Yoke Kits. No matter the need, Western's Kits are offered in Dry Method, Wet Visible Method (Black or White), or Wet Fluorescent Method. The End User simply chooses his Yoke, and his model of Kit, and they arrive in the same custom Carrying Case.
related

line

Western Instruments W-PPS Portable Inverter Power Supply

  • The W-PPS (W-PPSK) is a Portable Power Supply designed to operate any of Western Instruments’ standard AC or AC/DC Yokes. The W-PPS is equipped with an appropriately sized Battery, Battery Charger, and Inverter which should be used within the parameters in the manual.
related

line

Accessories for Western Instruments Magnetic Yokes:

related


line
Downloads
line

Western Instruments W-6CS AC Cavity Yoke - Instruction Manual
