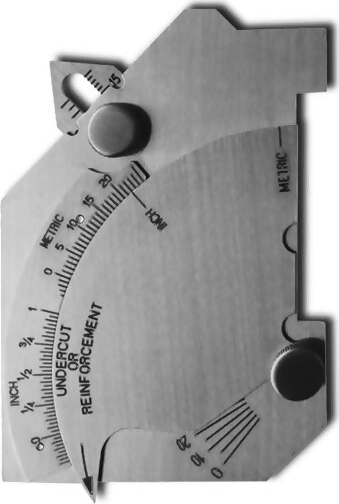

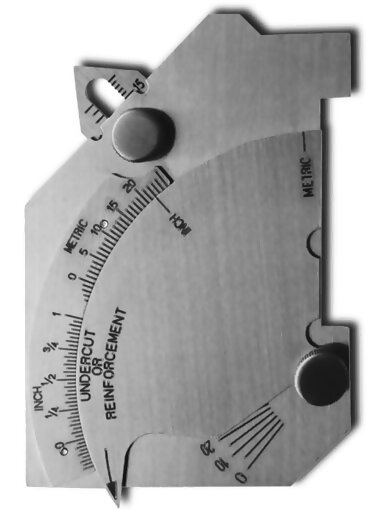

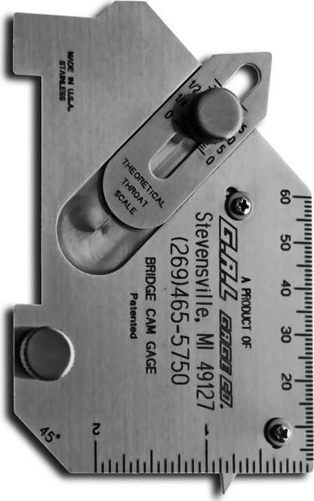

G.A.L. Gage Co. Cat # 4 Bridge Cam Gauge GAL-4, Inch & Metric
Cambridge Gauge
Measurement Scale: Inch and Metric
Excess Weld Metal (capping size)
Warranty: One Year
G.A.L. Gage Co. Cat # 4 Bridge Cam Gauge GAL-4, Inch & Metric
The following measurements are possible in either inches or millimeters
Features
- Angle of Preparation, 0º to 60º
- Excess Weld Metal (capping size)
- Depth of Undercut
- Fillet Weld Throat Size
- Fillet Weld Length
- Misalignment (High-Low)
