Imada E2 Durometer / Hardness Tester

See More Durometers
Price:
$449.00 - $494.00
    warrenty

    Product Description

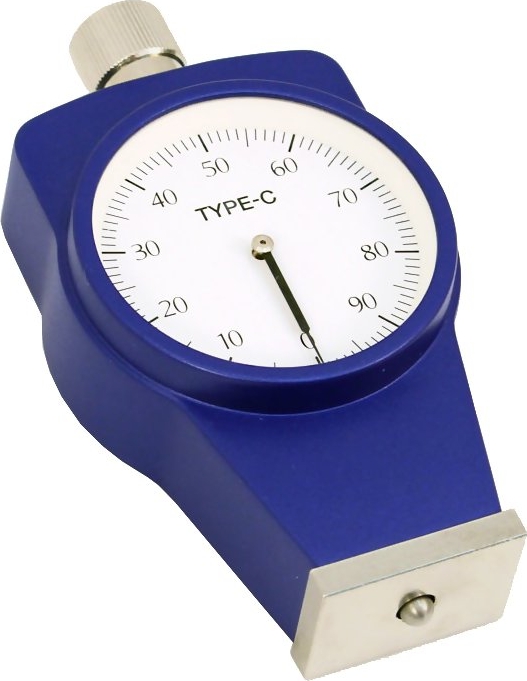

    Imada E2 Durometer - Hardness Tester
    Accuracy ± 1 point
    Lightweight, durable, recyclable, magnesium-alloy case
    Available in Shore A, D, E (ASTM D2240 compliant) and Asker C hardness scales

    The Imada E2 durometers now feature an environmentally friendly magnesium alloy housing. E2 durometers are quick and easy to operate with a high degree of repeatability. Optional peak indicators are available on each model.

    Hardness is an essential characteristic of rubber, elastomers and plastic products. Select the optimum durometer type based upon material hardness. E2 models are available in Durometer Types: Shore A, D, E and Asker C Hardness.


    line
    Kit Contents
    line

    • Imada E2 Durometer / Hardness Tester
    • Calibration certificate traceable to NIST
    • 3-Point
    • Carrying Case


    line
    Features
    line

    • Lightweight, durable, recyclable, magnesium-alloy case
    • Includes 3-Point Calibration certificate traceable to NIST
    • Available in Shore A, D, E (ASTM D2240 compliant) and Asker C hardness scales


    line
    Specifications
    line

    Accuracy± 1 point

    line

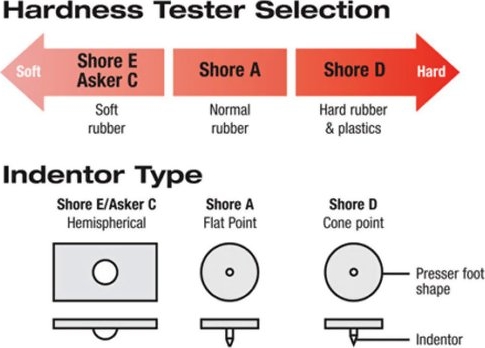

    Durometer Selection
    line

    ModelE2-AE2-DE2-EE2-C
    ScaleShore AShore DShore EAsker C
    IndentorFlat pointCone pointHemisphericalHemispherical
    MaterialNormal rubberHard rubber & plasticSoft rubberSoft rubber
    StandardASTM D-2240ASTM D-2240ASTM D-2240JIS K-7312
    Measuring Force1 kgf5 kgf5 kgf1 kgf


    line
    Operation
    line

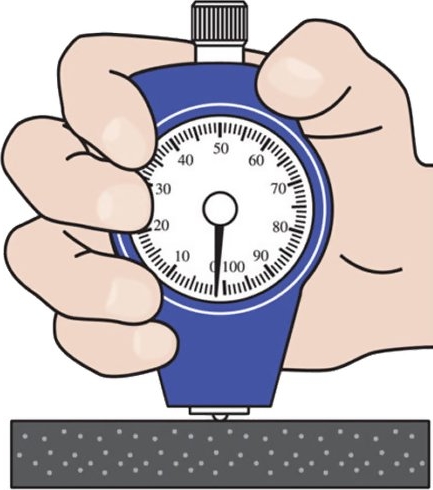

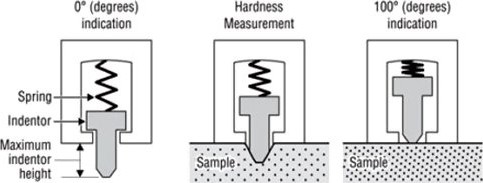

    As the durometer is pressed against the sample, the material resistance force and indentor spring load balance. The depth of the indentor is measured, which provides a measure of the material’s hardness. Values are based upon a 100 point scale (accuracy ±1 point).

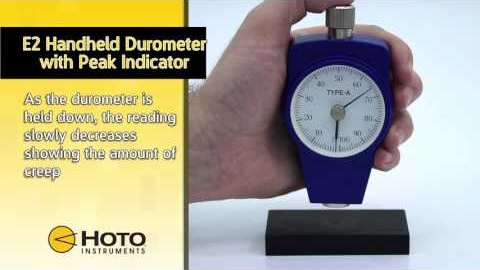

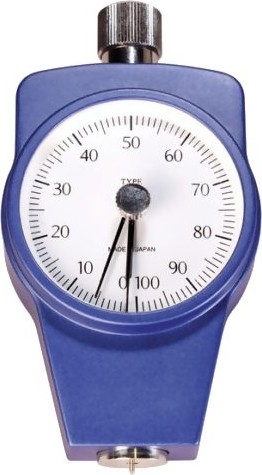

    However, as time elapses the indicator will "creep" back so that a reading taken a few seconds after the indentor makes contact with the sample will be less than the peak reading. Asker durometers offer a peak indicator as an option to more closely monitor the difference between peak and "creep".


    line
