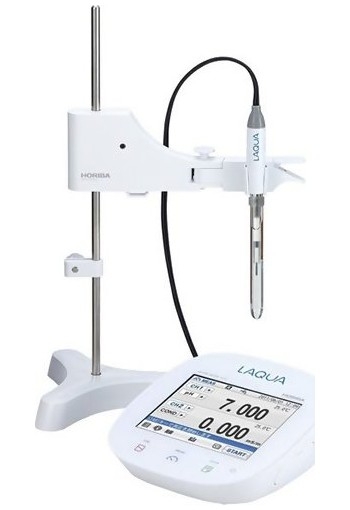

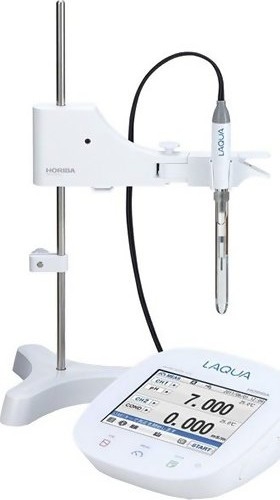

Horiba LAQUA F-74A-S PH / ORP / Ion / Conductivity / Resistivity / Total Dissolved Solids / Salinity / Temperature Meter Kit, # 3999960014

Name: Horiba LAQUA F-74A-S pH / ORP / Ion / Conductivity / Resistivity / Total Dissolved Solids / Salinity / Temperature Meter Kit, # 3999960014
Brand: Horiba
SKU: 1024
Price: 2495.00 USD
Availability: InStock

See More Horiba LAQUA Benchtop Meters

Images & Videos

Horiba LAQUA F-74A-S PH / ORP / Ion / Conductivity / Resistivity / Total Dissolved Solids / Salinity / Temperature Meter Kit, # 3999960014

See More Horiba LAQUA Benchtop Meters

$2,495.00

Secure Transaction

Product Description

Stress-free measurement, high-end model

The Horiba LAQUA F-74A-S pH / ORP / Ion / Conductivity / Resistivity / Total Dissolved Solids / Salinity / Temperature Meter Kit, # 3999960014 is a water quality analysis is repeatedly performed in laboratories on a daily basis. Our high-end benchtop model was developed to provide simplicity with excellent on-site usability - from operation and maintenance through to troubleshooting.

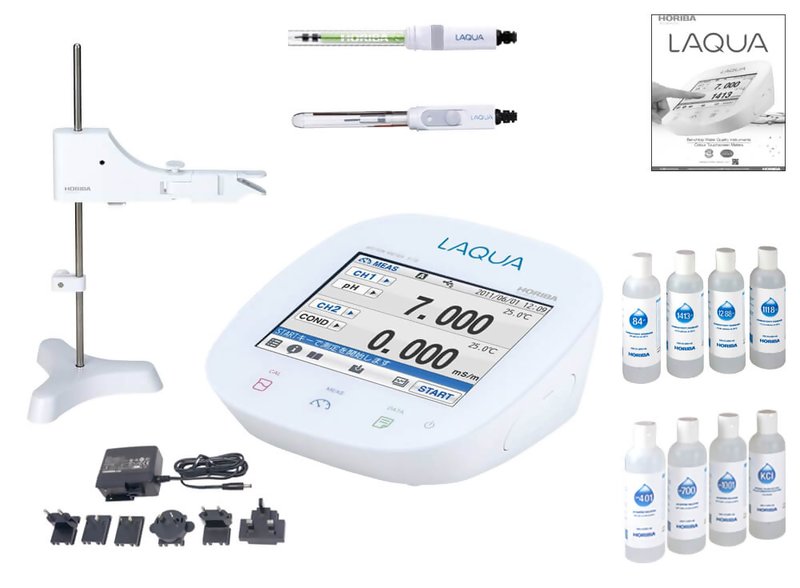

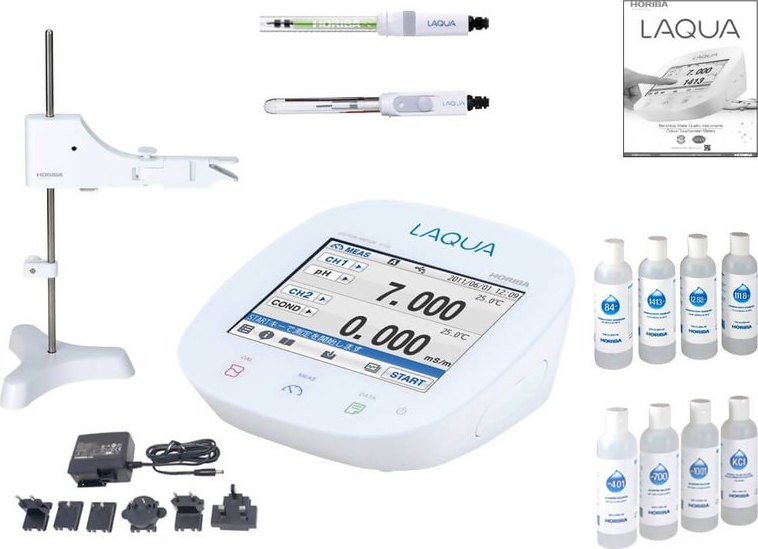

Kit Contents

Horiba LAQUA F-74 pH / ORP / Ion / Conductivity / Resistivity / Total Dissolved Solids / Salinity / Temperature Meter
9615S-10D Standard ToupH, glass-body, refillable pH electrode with built-in temperature sensor
3552-10D Platinum/Platinum black, glass-body, k=1.0 conductivity electrode with built-in temperature sensor
502-S: pH 4.01, 7.00, 10.01 buffers and 3.33 M KCl reference electrolyte (250ml each)
503-S: Conductivity 84 uS/cm, 1413 uS/cm, 12.88 mS/cm, 111.8 mS/cm standard solutions (250ml each)
Integrated Electrode Stand
Meter Cover
Power adaptor with 6 plugs (US, EU, UK, Australia / New Zealand, Korea, China)
Instruction Manual

Click image to enlarge

Features

Display easy to understand value and functions menus
Switch between digital real time graphs or analogue displays during measurement with just flick of a finger
Full on-screen support on the meter via an electronic user guide with colour pictures that can be called up at any time, featuring problem solver guide for calibration or measurement
Easy navigation for main unit and electrode inspections
Two channels can be displayed simultaneously
Periodic inspection mode JIS / Pharmacopeias / Digital Simulator
Full support for various country pharmaceutical pure water guidelines
Customizable auto-hold function for calibration and measurement
Simultaneous connection to a GLP / GMP compatible and PC
Digital memory - maximum 2,000 sets of measurement data can be recorded
USB-PC communication and USB memory
Input / output USB peripherals (Communication with PC): Yes, USB cable sold separately. Software can be download by web registration.
Multi-language support (Japanese, English, Chinese, Korean)

Specifications

pH Measurement method:

Glass electrode method

Measurement range:

0.000 μg/L～9999 g/L (mol/L)

Display range:

pH -2.000～20.000

Resolution:

0.01 mg/L

Auto range select:

Yes

Repeatability:

±0.5%F.S.±1 digit

pH calibration point:

Repeatability check:

Yes

Alarm limit of calibration:

Yes

Periodical check:

Yes

mV(ORP) Measurement range:

±1999.9 mV

Temperature Measurement range:

0.0～100.0ºC(-30.0～130.0ºC)

ION Measurement method:

Ion electrode method

Calibration curve point:

Addition method measurement:

Yes

Conductivity Measurement method:

2 AC bipolar method

Measurement range(Display range):

0.01 mg/L ～1000 g/L

Change unit:

Yes

Distilled water temperature conversion:

Yes

JP / EP / USP / CP Pharmaceutical water aplication:

Yes

Salinity Measurement method:

Conversion from conductivity value

Resistivity Measurement method:

Conversion from conductivity value

TDS Measurement method:

Conversion from conductivity value

Salt concentration calibration:

Yes

Input / output Input(CH):

USB host（USB memory):

Yes

RS-232C(Printer/PC):

Yes

Analog out put:

Yes

Data Memory number:

2,000

Interval memory:

Yes

ID input:

Yes

Data search:

Yes

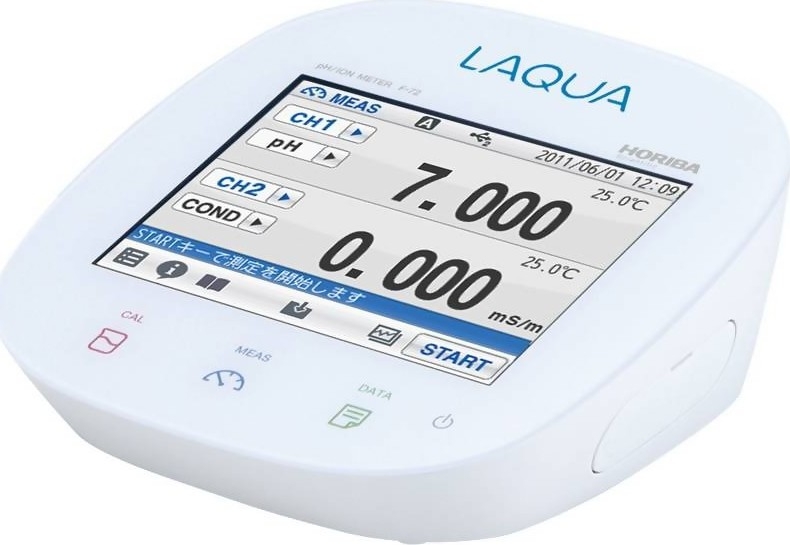

Display:

Color graphic LCD with capacitive Touch Panel

Dual component display:

Yes

Multilanguage display:

Japanese / English / Chinese / Korean

Navigation function:

Yes

User gide:

Yes

Printer connectivity (GLP / GMP):

Yes

Custom printing function:

Yes

temperature compensation (Auto / manual):

Yes

AutoHold function:

Yes

AutoHold setting:

Yes

Stability function (pH / ION):

Yes

Register operator:

Yes

Security (pass word):

Yes

Version up function:

Yes

Ambient temperature:

0 ºC ～ 45ºC

Power:

AC adaptor 100 ～ 240 V 50/60 Hz

Dimensions:

170(W)×174(D)×73(H)mm(Excluding electrode stand and AC adaptor)

Power consumption:

Approx. 9.8 VA

Mass of main unit:

Approx .700 g
