Rex 1600 Dial Shore Durometer RX-1600

See More Durometers

Rex 1600 Dial Shore Durometer RX-1600

See More Durometers
Price:
$420.00 - $720.00
    warrenty

    Product Description

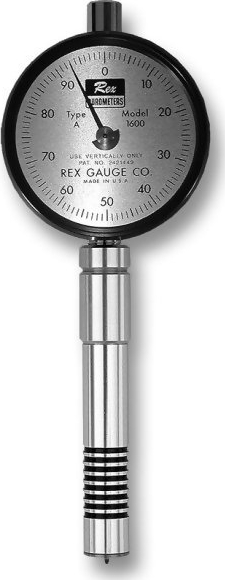

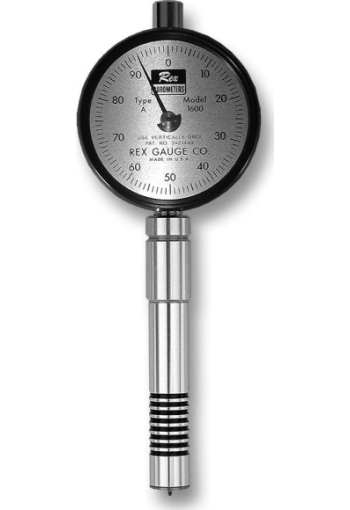

    Rex 1600 Dial Shore Durometer RX-1600
    Available Scales: A, AO, B, CF, D, E, DO, M, O, OO, OOO, OOO-S (Asker, ISO, DIN & JIS Scales also available, inquire)
    Conforms to ASTM D-2240
    Includes NIST Calibration Certificate

    Available Scales: A, AO, B, CF, D, E, DO, M, O, OO, OOO, OOO-S

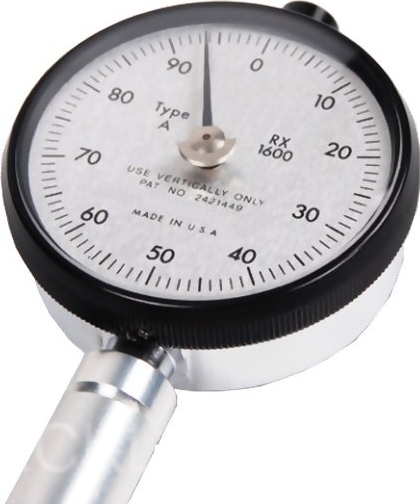

    The Rex 1600 Dial Shore Durometer RX-1600 features a full-sized dial face for readability to within 1/2 point. The RX-1600 offers the maximum accuracy available in a dial model gauge at a minimum cost.

    Type M Durometers require test stand OS-3 per ASTM D2240.


    line

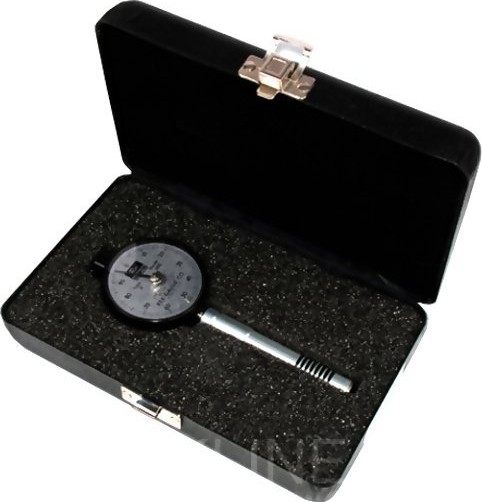

    Kit Contents
    line

    • Rex 1600 Dial Shore Durometer RX-1600
    • Instruction manual
    • Foam-fitted


    line
    Features
    line

    • Includes NIST Calibration Certificate
    • Full 360 degree sweep
    • One year warranty
    • Conforms to ASTM D-2240
    • Large dial


    line
    Specifications
    line

    Measuring Range 0 - 100 units
    Accuracy* ±1 durometer unit (A,B,C,D,E,O,DO)
    ±2 durometer units (OO,OOO)
    ±4 durometer units (M)

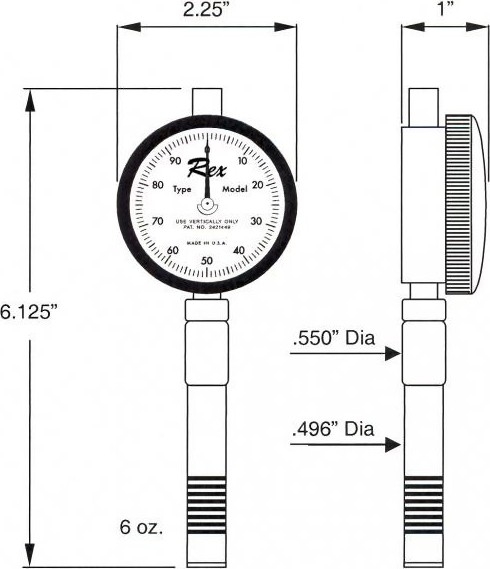

    Dimensions 2.25" x 6.125"H
    Weight 6 oz.
    * Note

    per ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.


    line
    Related Products
    line

    Durometer Test Block Kits
    Test Function Of Durometers

    • Enables user to perform a quick check for proper durometer operation
    related

    line

    AD-100
    Durometer Tester

    • Includes NIST-Traceable Calibration Certificate
    • Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 and ISO 7619. Asker C model conforms to JIS K-7312.
    • 18 mm diameter footer provides stable basis for testing and conforms to all International Standards
    related

    line

    DD-100
    Digital Durometer Tester

    • High and low buttons for setting tolerance limits
    • Holds Peak reading until reset
    • 0.1 Unit Resolution
    • Conforms to ASTM D-2240, DIN 53505, ISO 868, JIS K 7215 & ISO 7619. Asker C model conforms to JIS K-7312
    related

    line

    RX-DD
    Digital Durometer

    • Includes NIST-Traceable Calibration Certificate
    • Conforms to ASTM D-2240
    related


    line
    Downloads
    line

    Rex RX-1600 Dial Shore Durometer - Data Sheet
