Name: Imada E2 Durometer / Hardness Tester
Brand: Imada
SKU: 1440

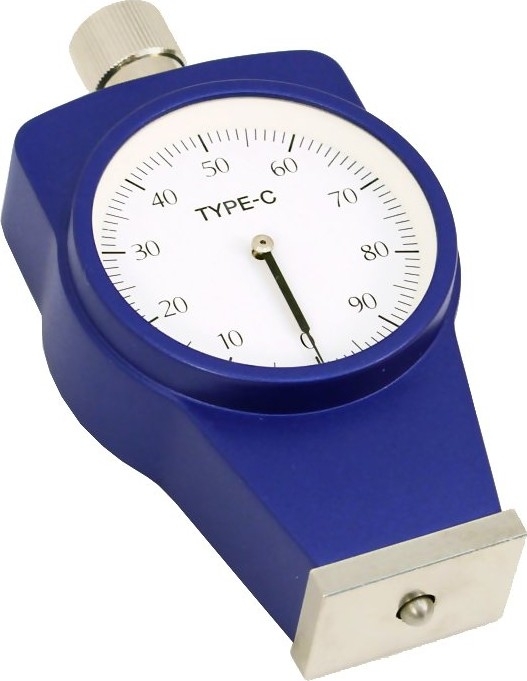

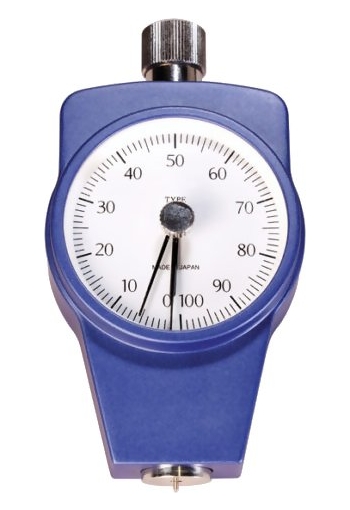

Imada E2 Durometer - Hardness Tester

Accuracy ± 1 point

Lightweight, durable, recyclable, magnesium-alloy case

Available in Shore A, D, E (ASTM D2240 compliant) and Asker C hardness scales

The Imada E2 durometers now feature an environmentally friendly magnesium alloy housing. E2 durometers are quick and easy to operate with a high degree of repeatability. Optional peak indicators are available on each model.

Hardness is an essential characteristic of rubber, elastomers and plastic products. Select the optimum durometer type based upon material hardness. E2 models are available in Durometer Types: Shore A, D, E and Asker C Hardness.

line
Kit Contents
line

Imada E2 Durometer / Hardness Tester
Calibration certificate traceable to NIST
3-Point
Carrying Case

line
Photo Gallery
line

line
Features
line

Lightweight, durable, recyclable, magnesium-alloy case
Includes 3-Point Calibration certificate traceable to NIST
Available in Shore A, D, E (ASTM D2240 compliant) and Asker C hardness scales

line
Specifications
line

Accuracy

± 1 point

line

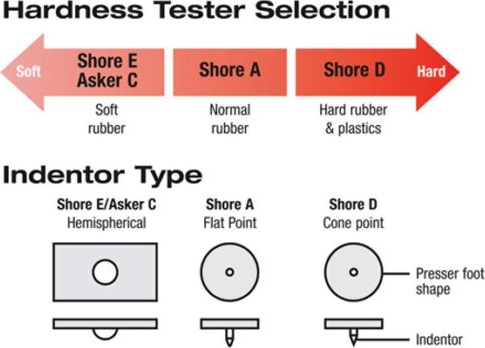

Durometer Selection
line

Model	Scale	Indentor
E2-A	Shore A	Flat point
E2-D	Shore D	Cone point
E2-E	Shore E	Hemispherical
E2-C	Asker C	Hemispherical

Model	Material	Standard	Measuring Force
E2-A	Normal rubber	ASTM D-2240	1 kgf
E2-D	Hard rubber & plastic	ASTM D-2240	5 kgf
E2-E	Soft rubber	ASTM D-2240	5 kgf
E2-C	Soft rubber	JIS K-7312	1 kgf

line
Operation
line

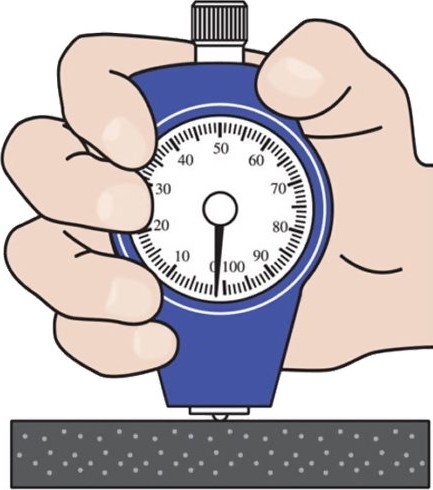

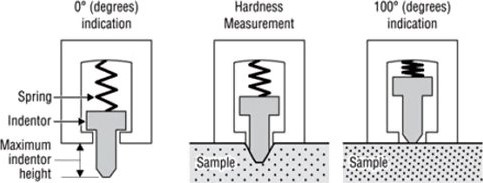

As the durometer is pressed against the sample, the material resistance force and indentor spring load balance. The depth of the indentor is measured, which provides a measure of the material’s hardness. Values are based upon a 100 point scale (accuracy ±1 point).

However, as time elapses the indicator will "creep" back so that a reading taken a few seconds after the indentor makes contact with the sample will be less than the peak reading. Asker durometers offer a peak indicator as an option to more closely monitor the difference between peak and "creep".
